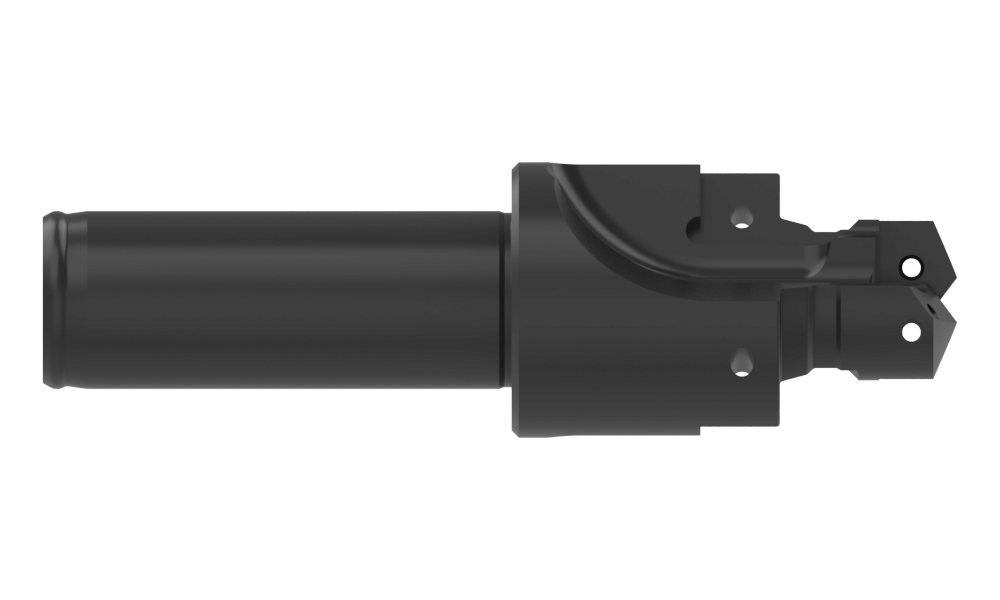

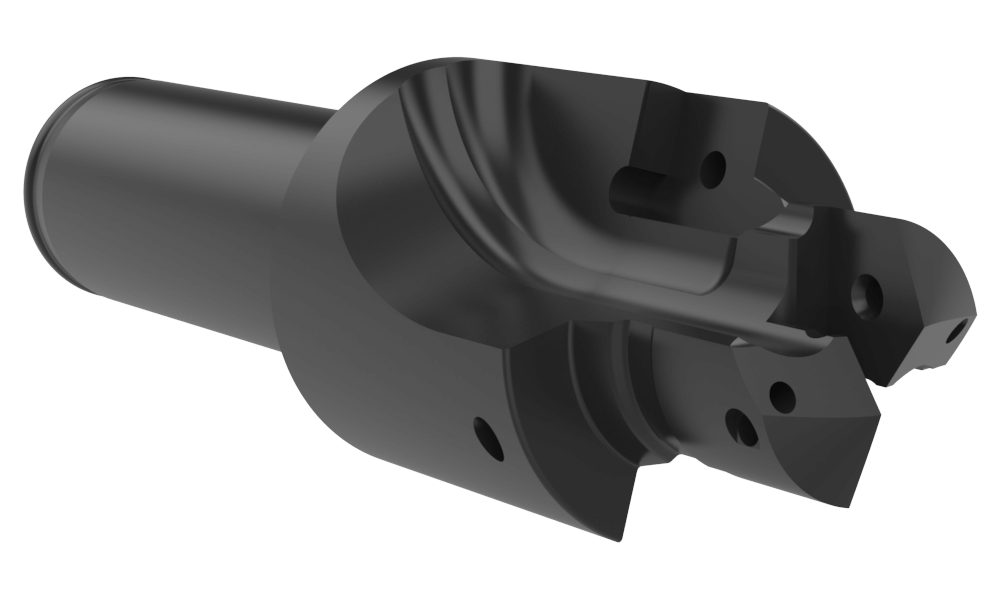

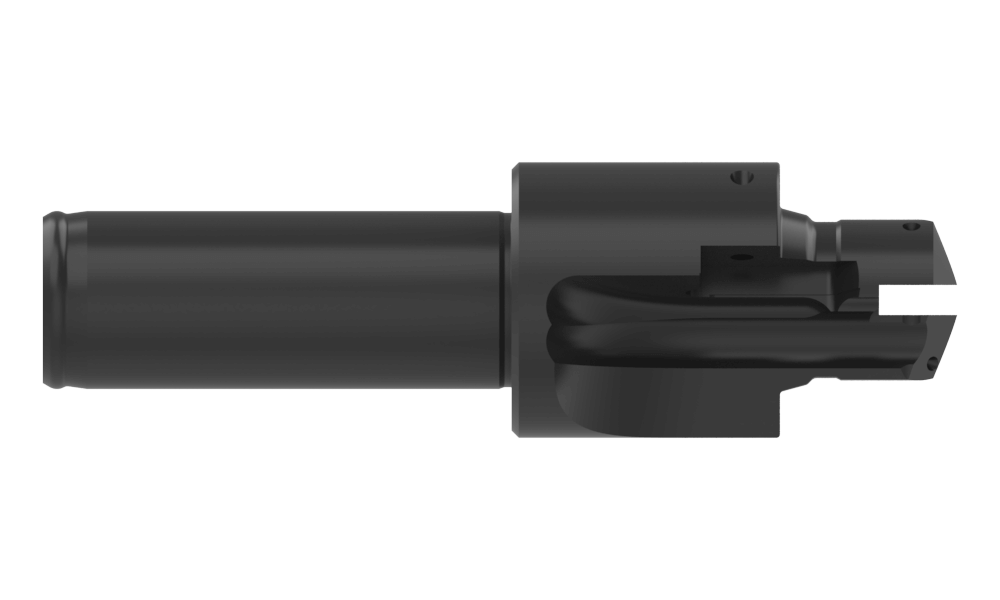

Type of Product | Replaceable Port Form Body |
Series | 0.5 |
Overall length inch | 3.951 |
Overall length mm | 100.4 |
Pipe tap rear inch | 1/8 |
Shank diameter mm | 19.1 |
Shank diameter inch | 0.75 |
Shank length inch | 1.969 |
Shank type | Cylindrical |
Pilot Diameter mm | 17.5 |
Pilot Diameter inch | 0.689 |
Pilot length mm | 17.5 |
Pilot length inch | 0.689 |
Tool Reference Length mm | 50.3 |
Tool Reference Length inch | 1.982 |
Port Standard | SAE J-1926 |
Tube Size | -8 |
Port thread size | 3/4-16 UNF-2B |
Spotface diameter mm | 30.6 |
Spotface diameter inch | 1.206 |
Seal angle | 15° |
Seal angle diameter mm | 20.7 |
Seal angle diameter inch | 0.813 |
Seal angle length mm | 2.7 |
Seal angle length inch | 0.106 |
Spotface to shoulder length inch | 1.15 |
Spotface to shoulder length mm | 29.2 |
Minor Diameter Insert Carbide | 4C10H-0022 |
Minor Diameter Insert Super Cobalt | 450H-0022 |
