J1926-122-32FM
AccuPort 432® Replaceable Port Form Body: SAE J1926/1, -12, Cylindrical, Standard
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

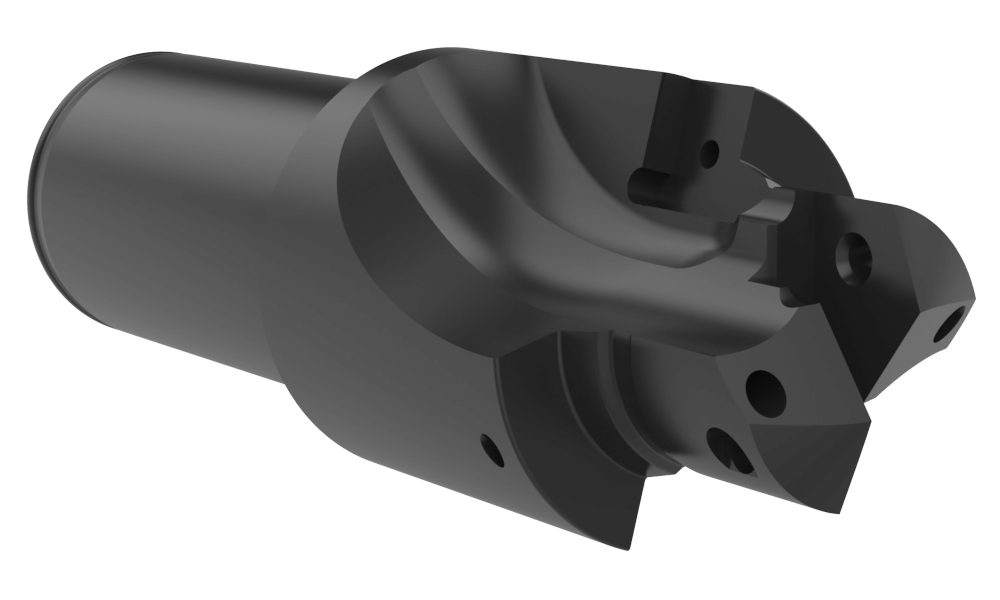

Angle

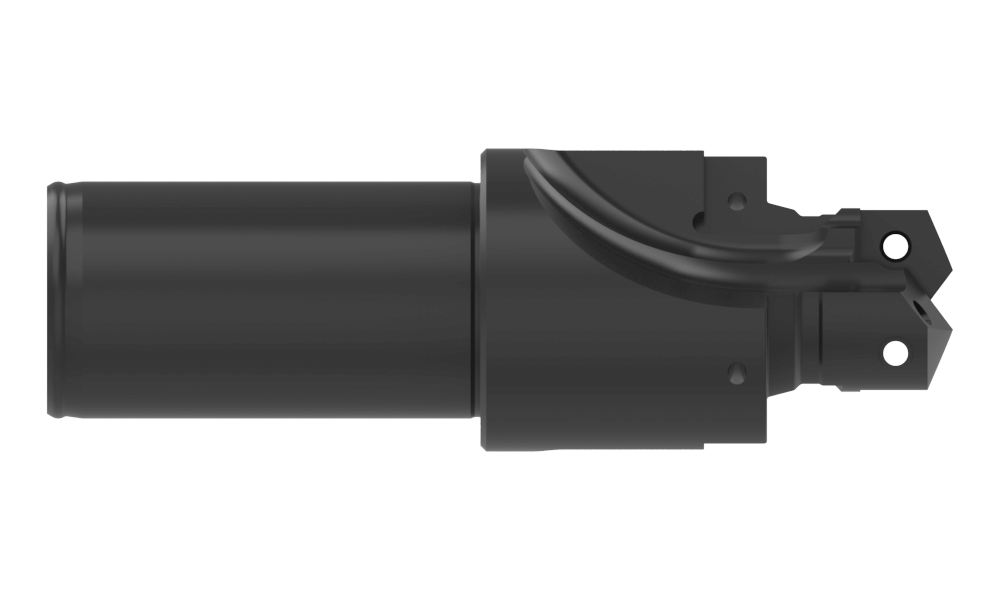

Front

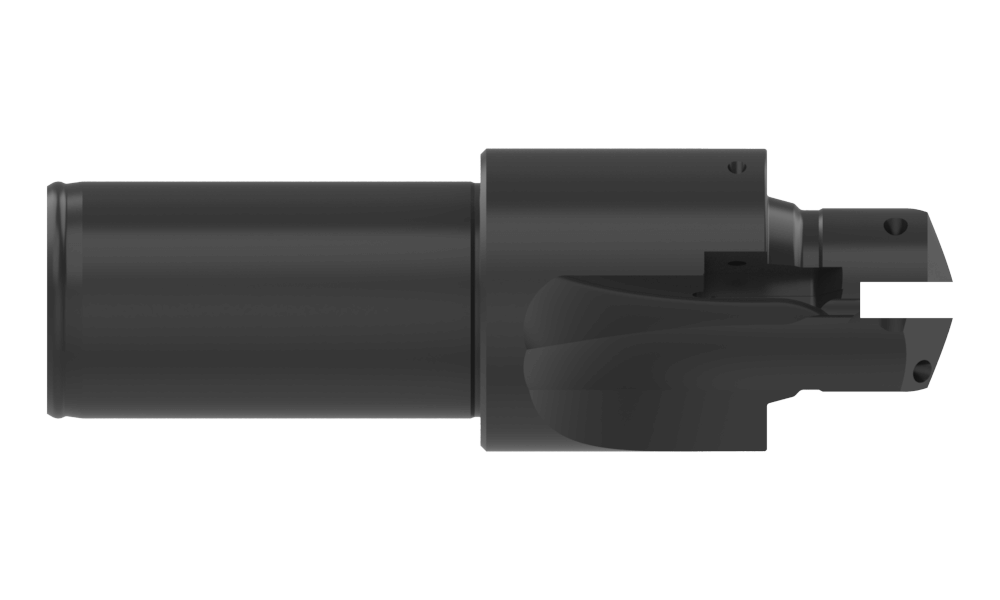

Top
Product Specifications
Specification SAE
Port Standard J1926-1
Tube Size -12
Series 2
Spotface diameter mm 42.03
Length Type Standard
Flute Type Straight
Overall length mm 121.4
Tool Reference Length mm 67.1
Body length mm 63.5
Step Length mm 23.0
Shank type Cylindrical
Shank diameter mm 32
Shank length mm 2.280
Pipe tap rear mm 1/4 BSPT
Type of Product Replaceable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement AccuPort Insert Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
AccuPort Insert Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.46
Weight in kg (each) 0.66
Category Stocked
