TM16432
UN 3F .115" .250" TIALN
ThreadMills USA™






Product Specifications

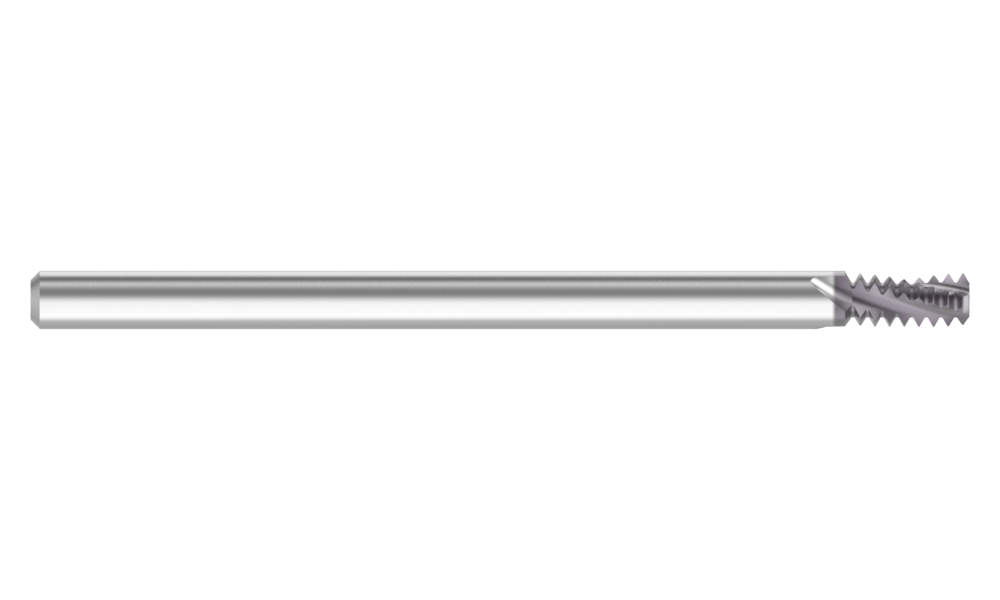

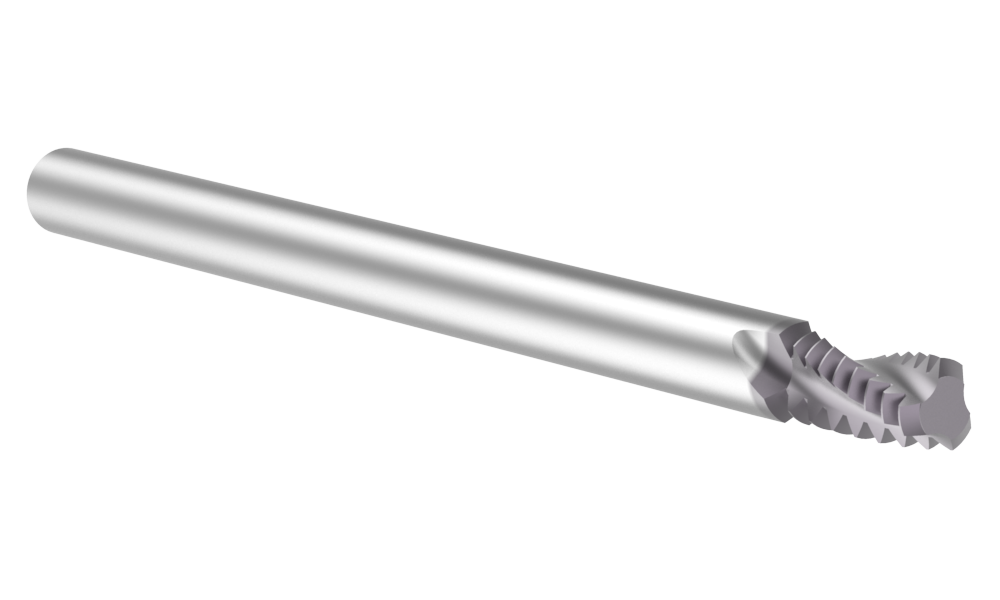

Type of ProductSolid Carbide Threadmill
Overall length inch2
Shank diameter inch0.125
Shank typeCylindrical
CoatingTiAlN
MaterialCarbide
Flute TypeHelical
Thread StandardUN
Minimum Thread Size#8
Pitch32
Number of Flutes3
Thread StyleInternal/External
Cutter Diameter inch0.115
Length of cut inch0.25
Weldon FlatNo
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.01
CategoryStocked
