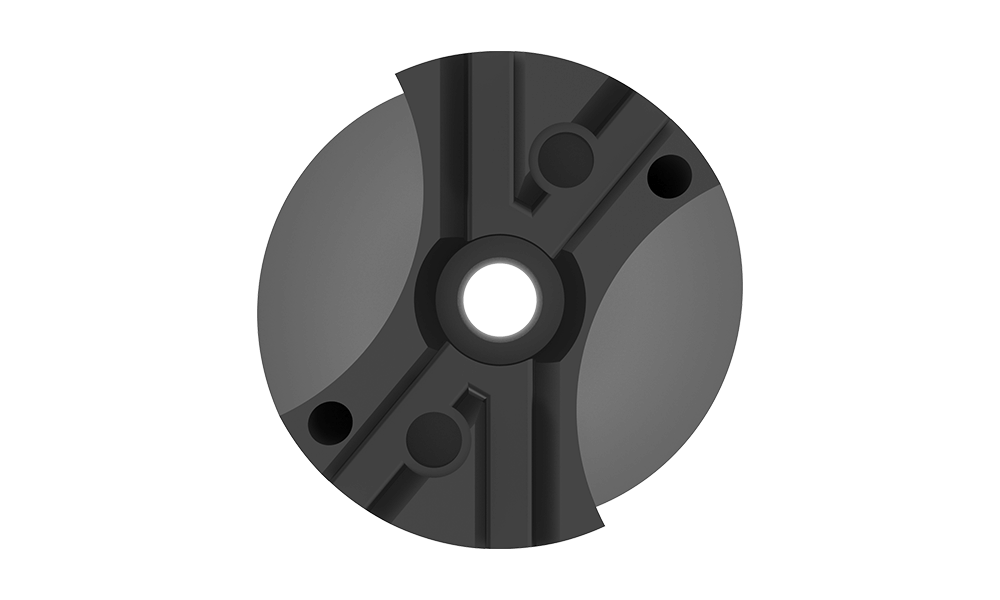

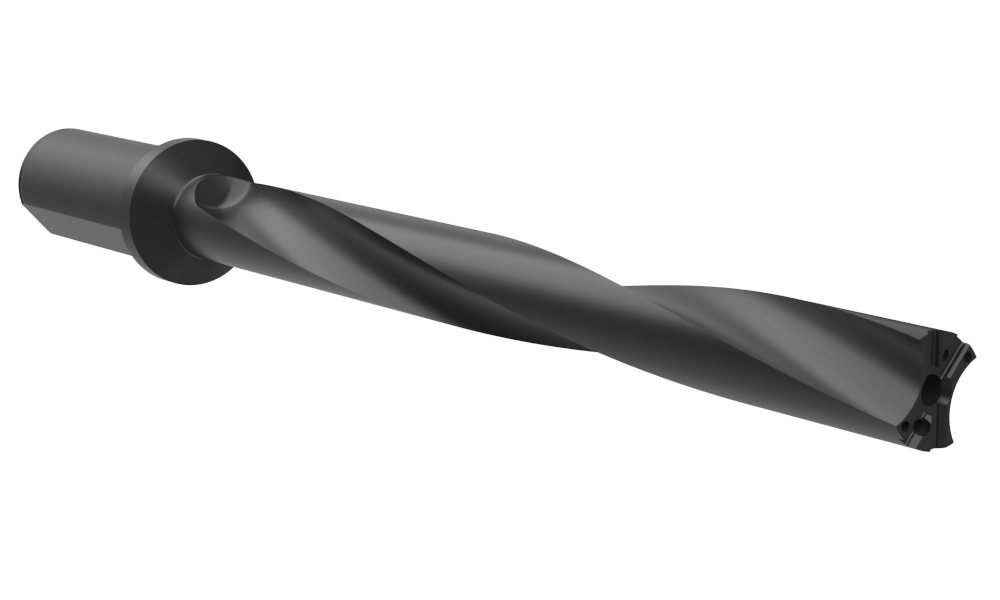

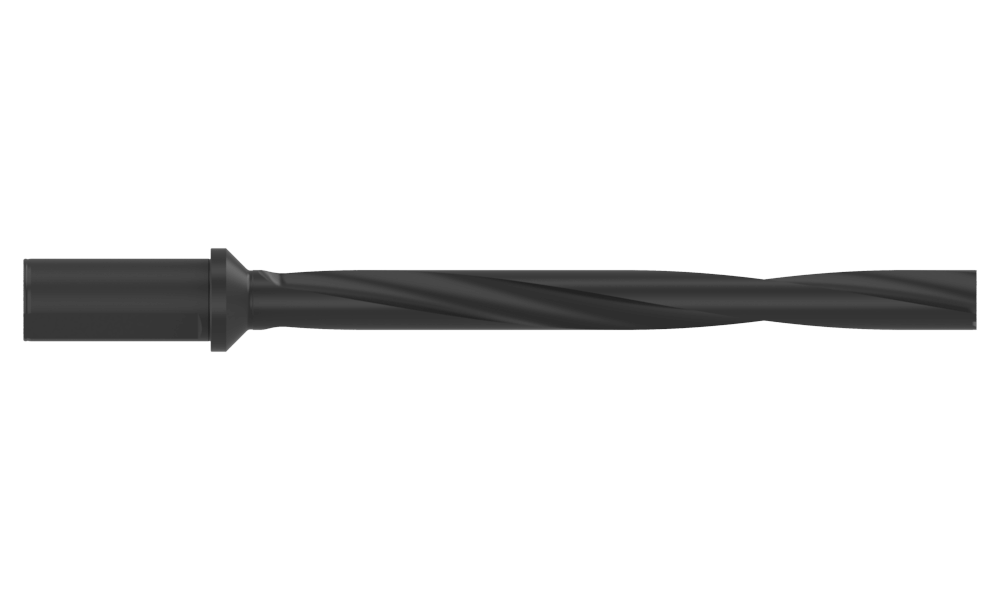

| Type of Product | Replaceable Drill Body |
| Drill depth inch | 14-29/32 |
| Minimum diameter inch | 1.2992 |
| Minimum diameter mm | 33.00 |
| Maximum diameter inch | 1.4960 |
| Maximum diameter mm | 37.99 |
| Shank diameter inch | 1-1/2 |
| Shank length inch | 2-11/16 |
| Shank type | Flanged |
| Series | 33 |
| Flute Type | Helical |
| Length Type | 10xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Deep Hole Guidelines | Yes |
| Assembled overall length inch | 19-3/4 |
| Assembled reference length inch | 17-1/16 |
