X1926-04Y-063F
#Y ACCUPORT -04 EXT PILOT

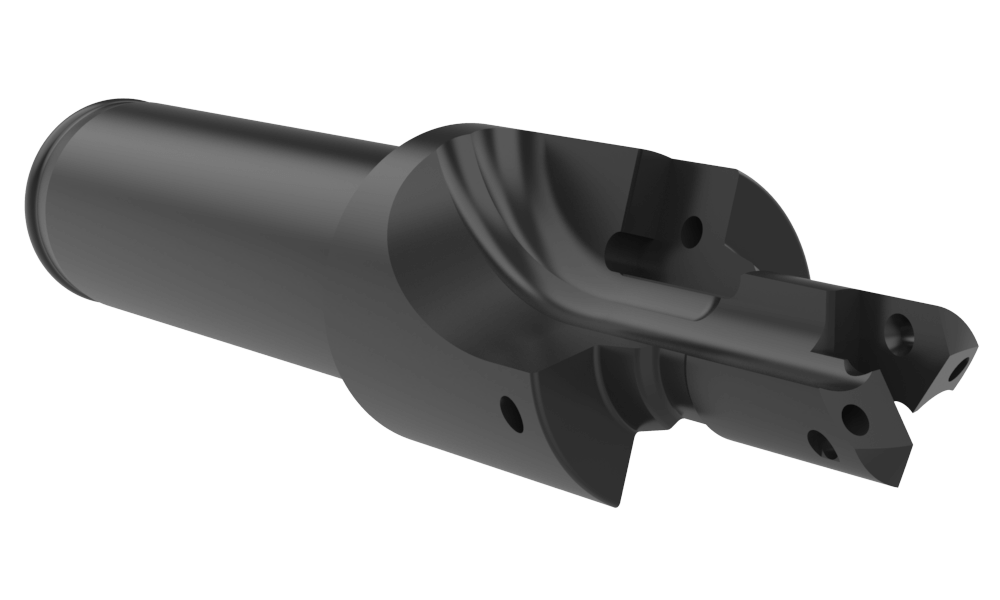

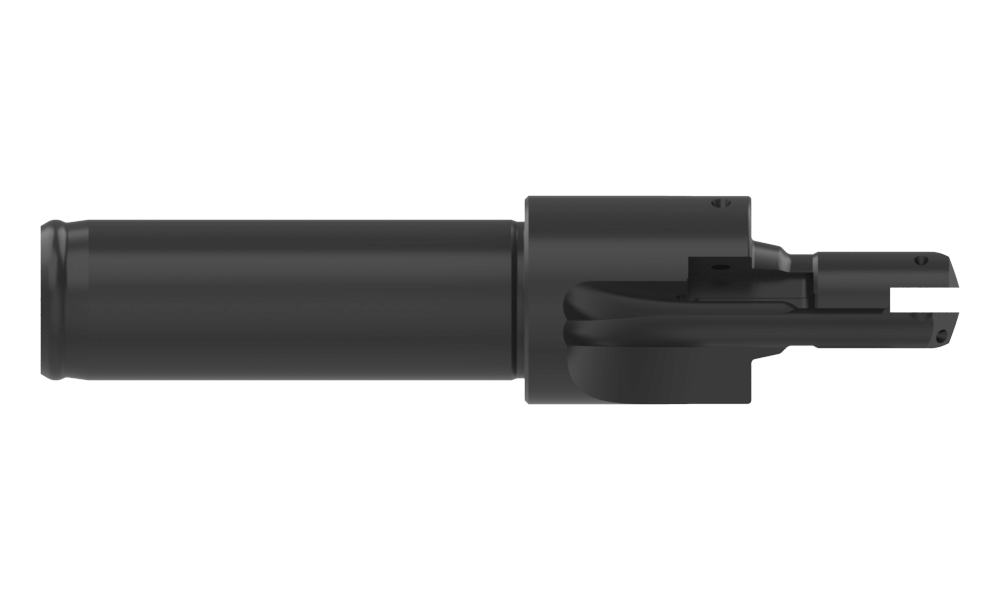

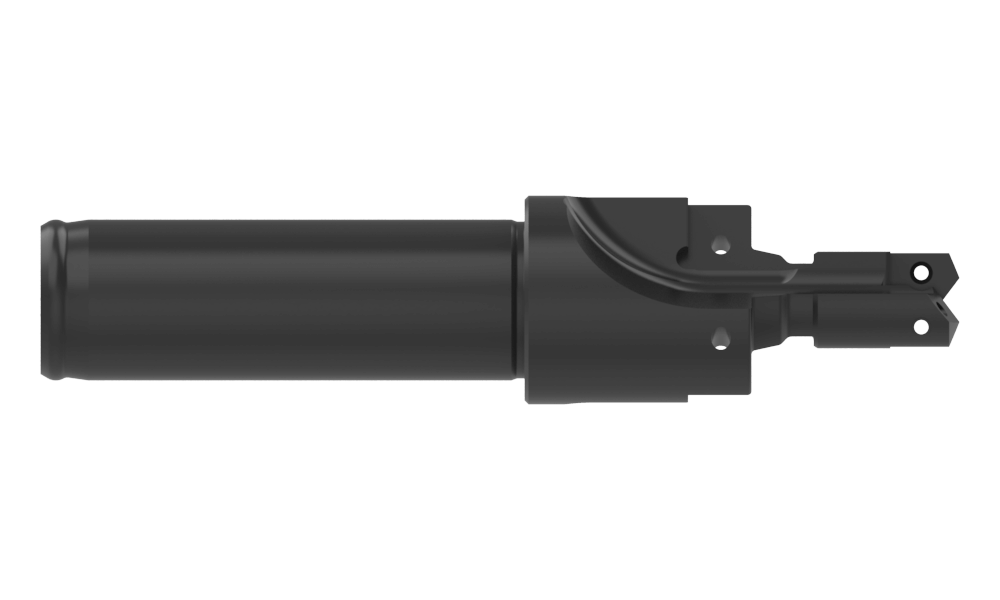

AccuPort 432® Holder






Product Specifications
Type of ProductReplaceable Port Form Body
SeriesY
Overall length inch3.65
Overall length mm92.8
Pipe tap rear inch1/16
Shank diameter mm15.9
Shank diameter inch0.625
Shank length mm47.6
Shank length inch1.875
Shank typeCylindrical
Pilot Diameter mm9.8
Pilot Diameter inch0.386
Pilot length mm20.3
Pilot length inch0.801
Tool Reference Length mm45.1
Tool Reference Length inch1.777
Port StandardSAE J-1926
Tube Size-4
Port thread size7/16-20 UNF-2B
Spotface diameter mm21.3
Spotface diameter inch0.84
Seal angle12°
Seal angle diameter mm12.5
Seal angle diameter inch0.49
Seal angle length mm2.7
Seal angle length inch0.106
Spotface to shoulder length inch0.896
Spotface to shoulder length mm22.8
Minor Diameter Insert Carbide4C1YH-.386
Minor Diameter Insert Super Cobalt45YH-.386


Related Items
724-IP7-1     (Qty: 0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
72556-IP8-1     (Qty: 0)
Replacement AccuPort Insert Screw
0 KIT (1) TORX PLUS,CLASS 4H
8IP-7     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
8IP-8     (Qty: 0)
AccuPort Insert Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.25
CategoryStocked
