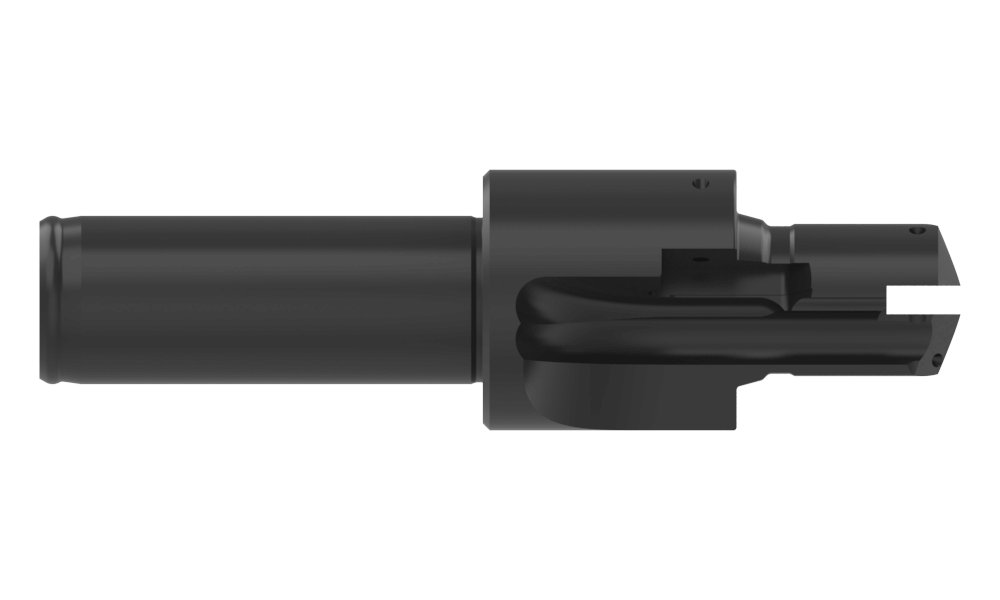

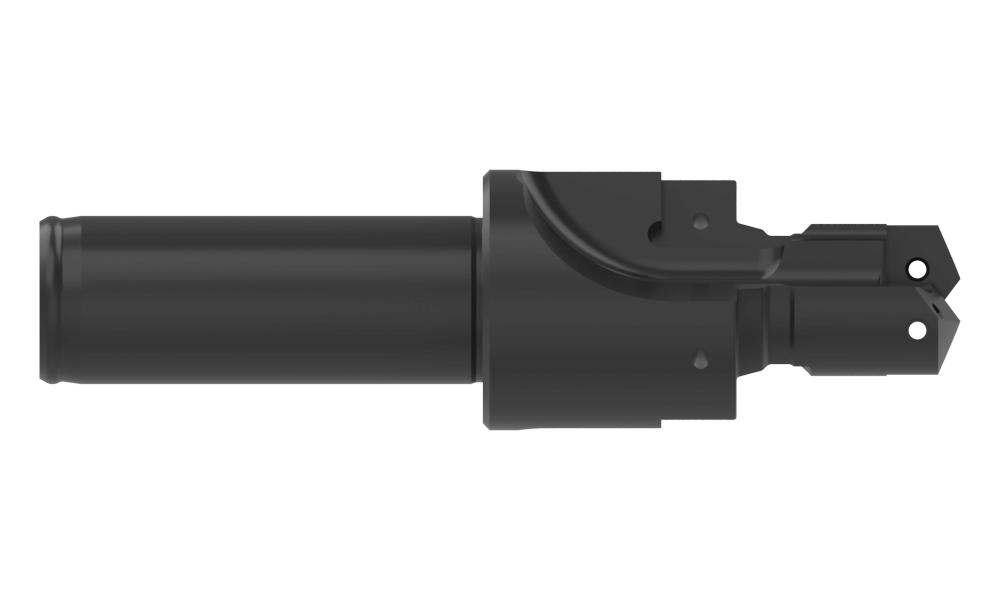

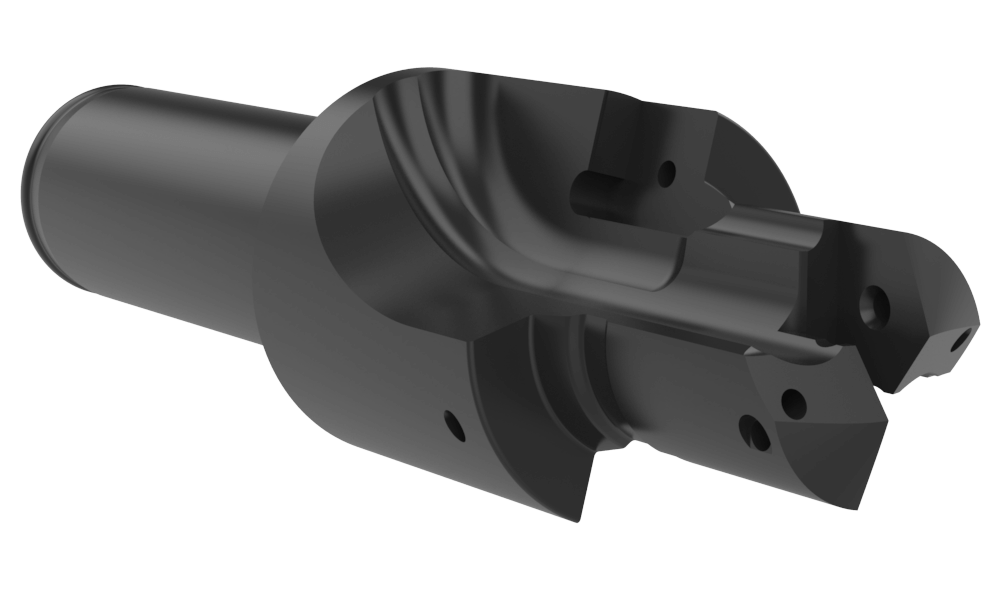

X1926-080-075F
#0.5 ACCUPORT -08 EXT PILOT
AccuPort 432® Holder






Product Specifications
Type of ProductReplaceable Port Form Body
Series0.5
Overall length inch4.2
Overall length mm106.7
Pipe tap rear inch1/8
Shank diameter mm19.1
Shank diameter inch0.75
Shank length mm50
Shank typeCylindrical
Pilot Diameter mm17.5
Pilot Diameter inch0.689
Pilot length mm23.8
Pilot length inch0.939
Tool Reference Length mm56.7
Tool Reference Length inch2.232
Port StandardSAE J-1926
Tube Size-8
Port thread size3/4-16 UNF-2B
Spotface diameter mm30.6
Spotface diameter inch1.206
Seal angle15°
Seal angle diameter mm20.7
Seal angle diameter inch0.813
Seal angle length mm2.7
Seal angle length inch0.106
Spotface to shoulder length inch1.15
Spotface to shoulder length mm29.2
Minor Diameter Insert Carbide4C10H-0022
Minor Diameter Insert Super Cobalt450H-0022


Related Items
72556-IP8-1     (Qty: 0)
Replacement AccuPort Insert Screw
0 KIT (1) TORX PLUS,CLASS 4H
72567-IP8-1     (Qty: 0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.5
CategoryStocked
