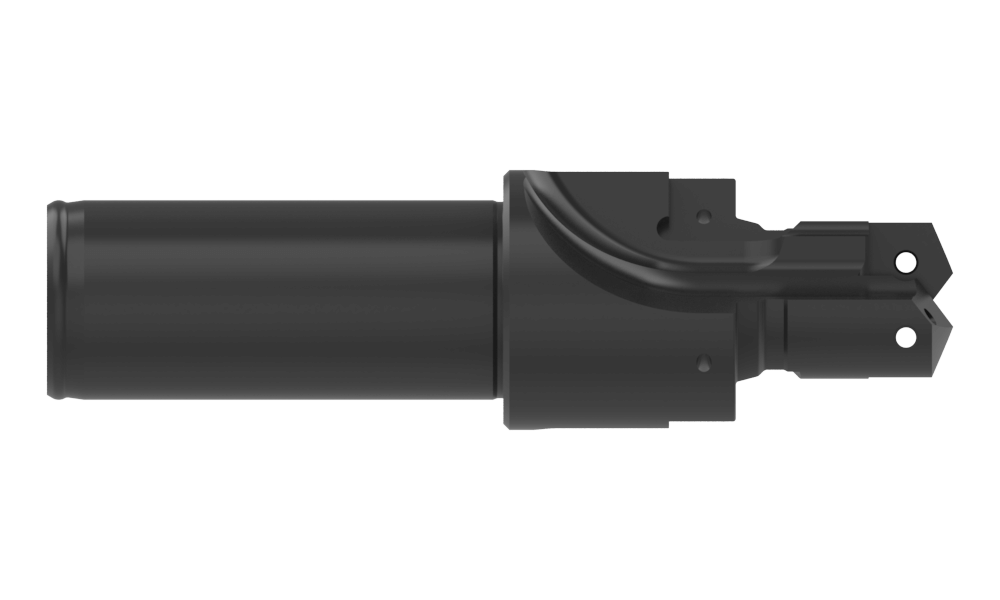

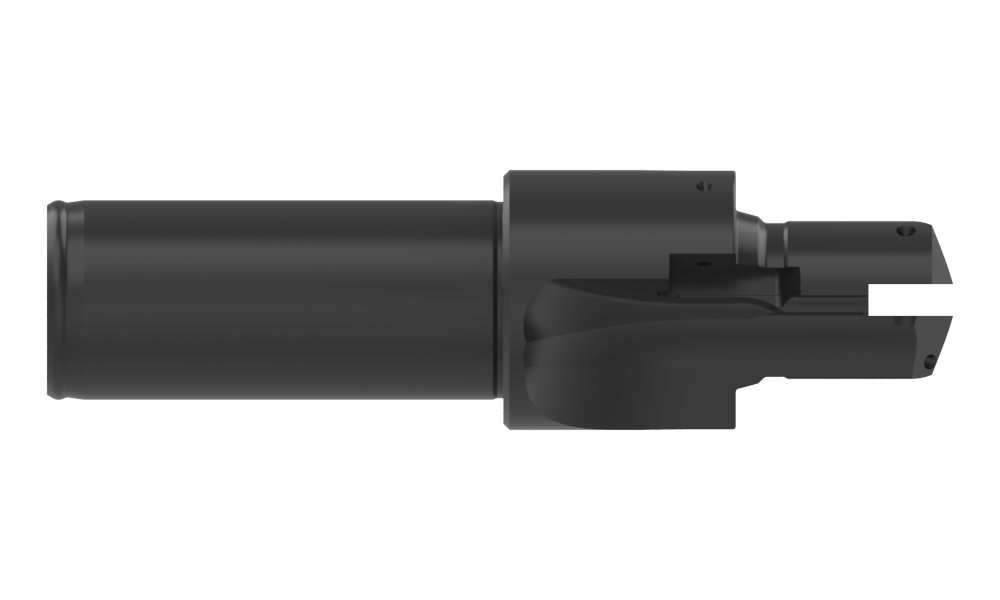

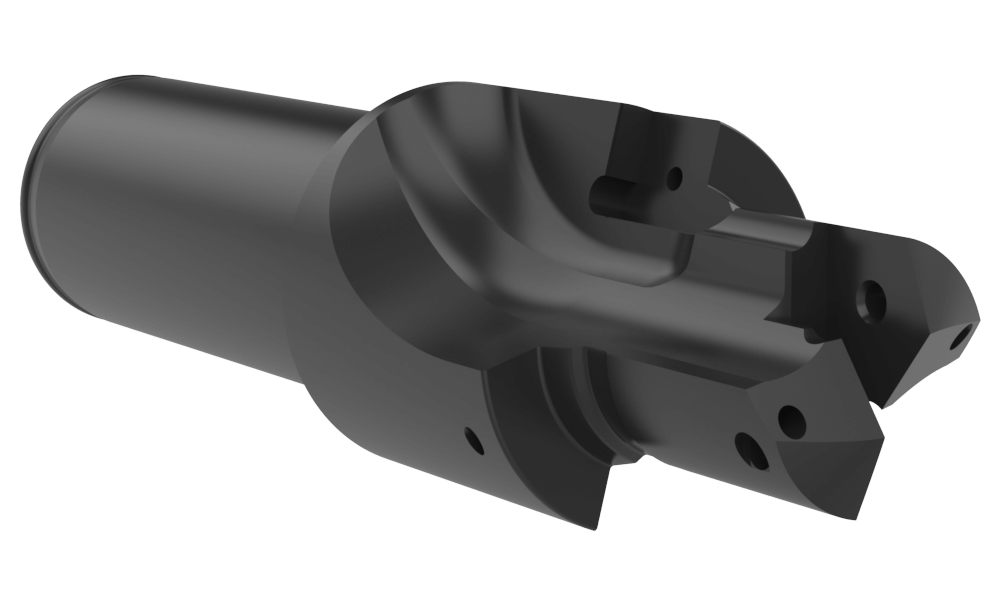

| Type of Product | Replaceable Port Form Body |
| Series | 1 |
| Overall length inch | 4.67 |
| Overall length mm | 118.6 |
| Pipe tap rear inch | 1/8 |
| Shank diameter mm | 25.4 |
| Shank diameter inch | 1 |
| Shank length mm | 57.9 |
| Shank length inch | 2.281 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 20.5 |
| Pilot Diameter inch | 0.807 |
| Pilot length mm | 26.3 |
| Pilot length inch | 1.037 |
| Tool Reference Length mm | 60.7 |
| Tool Reference Length inch | 2.39 |
| Port Standard | SAE J-1926 |
| Tube Size | -10 |
| Port thread size | 7/8-14 UNF-2B |
| Spotface diameter mm | 34.1 |
| Spotface diameter inch | 1.344 |
| Seal angle | 15° |
| Seal angle diameter mm | 24 |
| Seal angle diameter inch | 0.945 |
| Seal angle length mm | 2.7 |
| Seal angle length inch | 0.106 |
| Spotface to shoulder length inch | 1.185 |
| Spotface to shoulder length mm | 30.1 |
| Minor Diameter Insert Carbide | 4C11H-20.5 |
| Minor Diameter Insert Super Cobalt | 451H-20.5 |
