0160HA
Criterion® Boring Bar: .160" (4.06 mm) Min Ø, Carbide, TiAlN
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

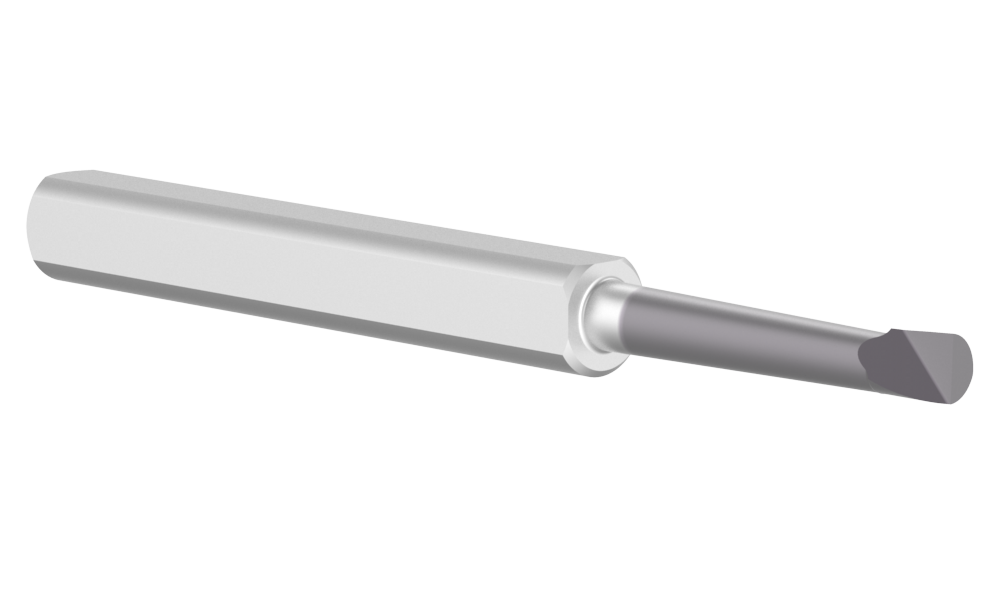

Angle

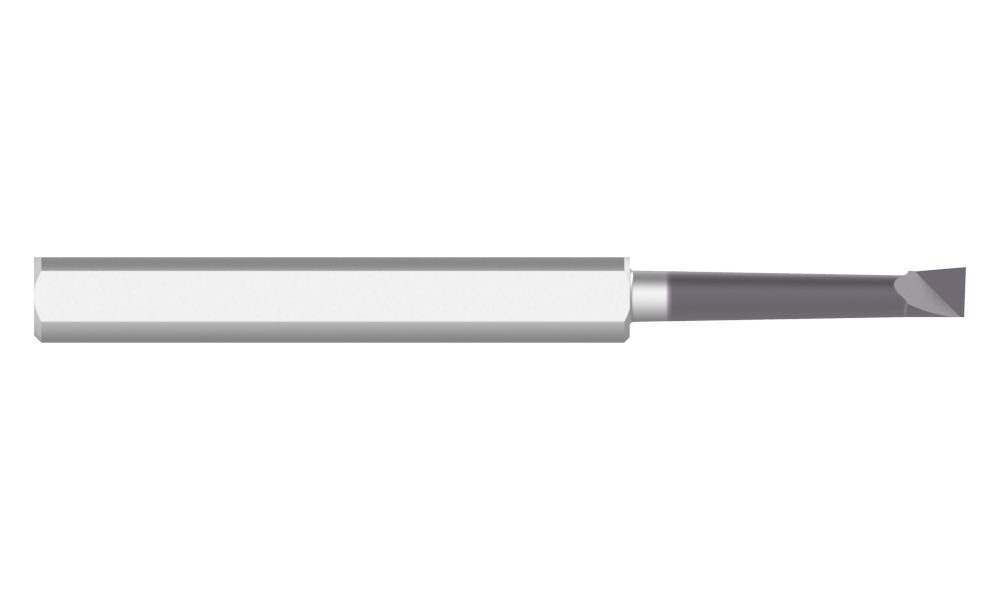

Side
Product Specifications
Type of Product Boring Bar
Material Carbide
Max bore depth mm 22.22
Max bore depth inch .875
Minimum diameter inch .160
Minimum diameter mm 4.06
Number of Flats 2
Overall length inch 2.500
Overall length mm 63.50
Shank diameter mm 6.35
Shank diameter inch .250
Coating TiAlN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.054
Weight in kg (each) 0.02
Category Stocked
