0688CHM
Criterion® Boring Bar: .688" Min Ø, Heavy Metal
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

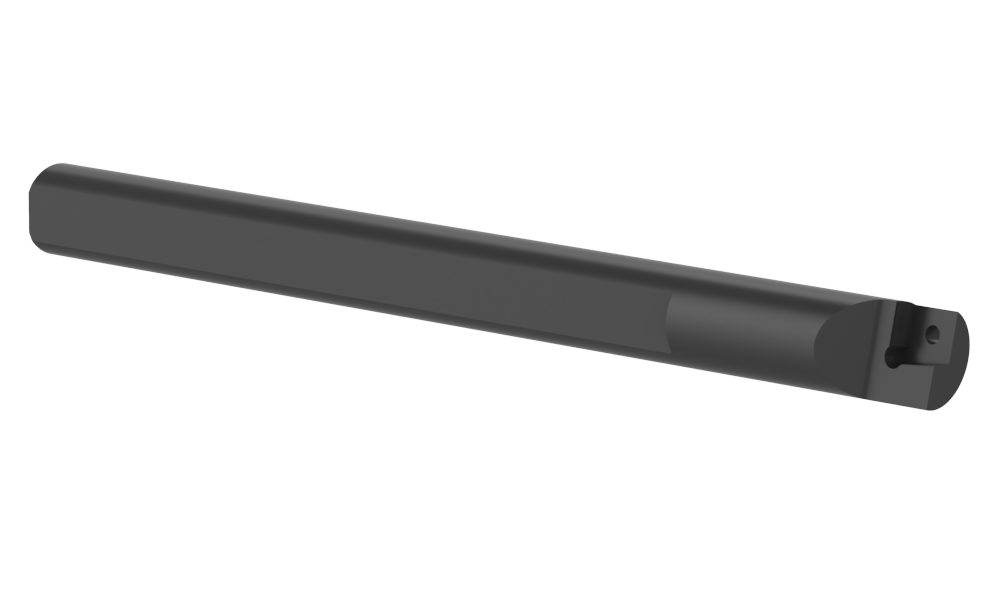

Angle

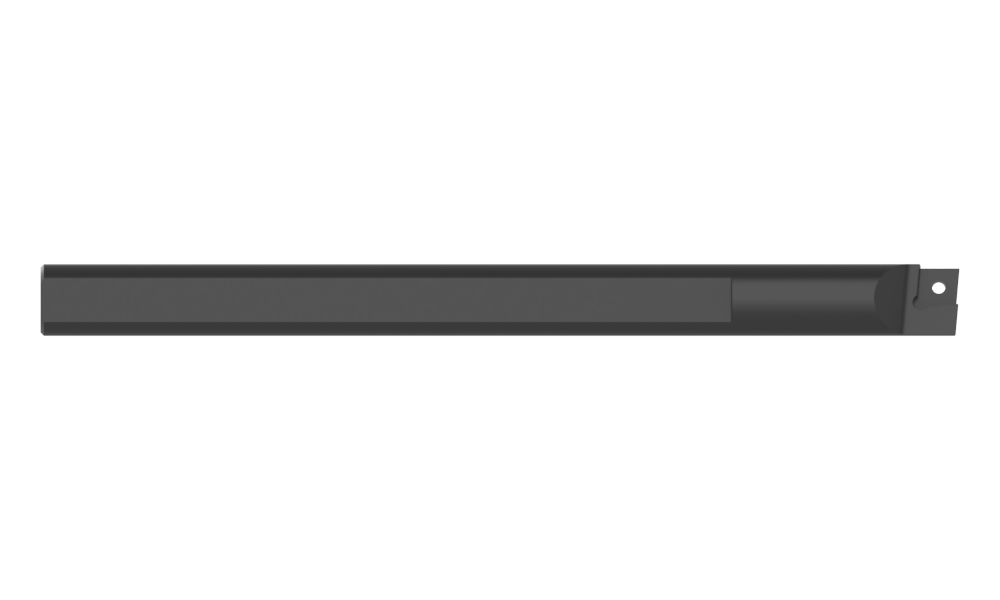

Side
Product Specifications
Type of Product Boring Bar
Style Steel / Heavy Metal
IC Size inch .375
Insert thickness inch .156
Material Heavy Metal
Max bore depth inch 4.250
Minimum diameter inch .688
Number of Flats 1
Overall length inch 8.00
Shank diameter inch .625
Shape CC
Width across flats inch .565
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.531
Weight in kg (each) 0.24
Category Stocked
