081045
Wohlhaupter® Indexable Boring Bar: 0.591" (15 mm) Min Ø, 2.362" (60 mm) Max depth, Form 20, 16 mm Shank, Steel
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

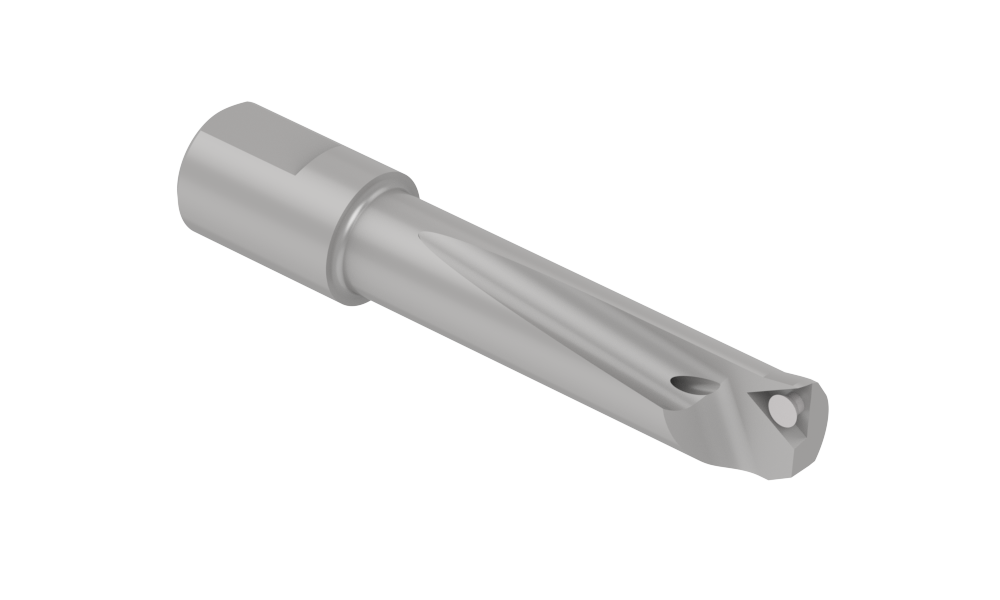

Angle

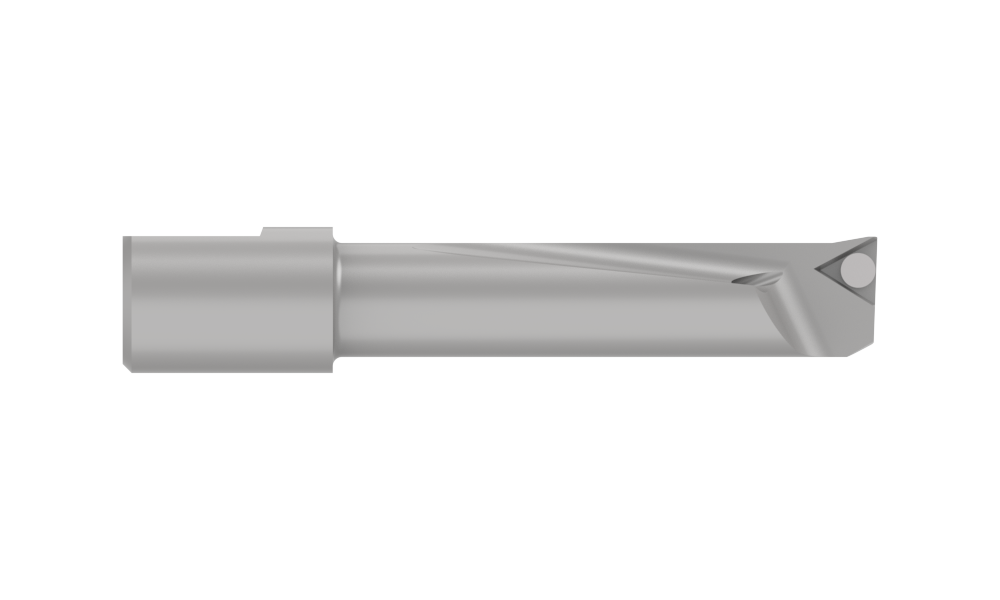

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Steel
Form Type Form 20
IC Size mm 5
IC Size inch 0.197
Insert thickness mm 2.38
Insert thickness inch 0.094
Max bore depth mm 60
Max bore depth inch 2.362
Minimum diameter mm 15
Minimum diameter inch 0.591
Number of Flats 1
Overall length mm 83
Overall length inch 3.268
Shank diameter mm 16
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0
Weight in kg (each) 0
Category Stocked
