081055
Wohlhaupter® Indexable Boring Bar: 0.236" (6 mm) Min Ø, 1.26" (32 mm) Max depth, Form 211, 16 mm Shank, Heavy Metal
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

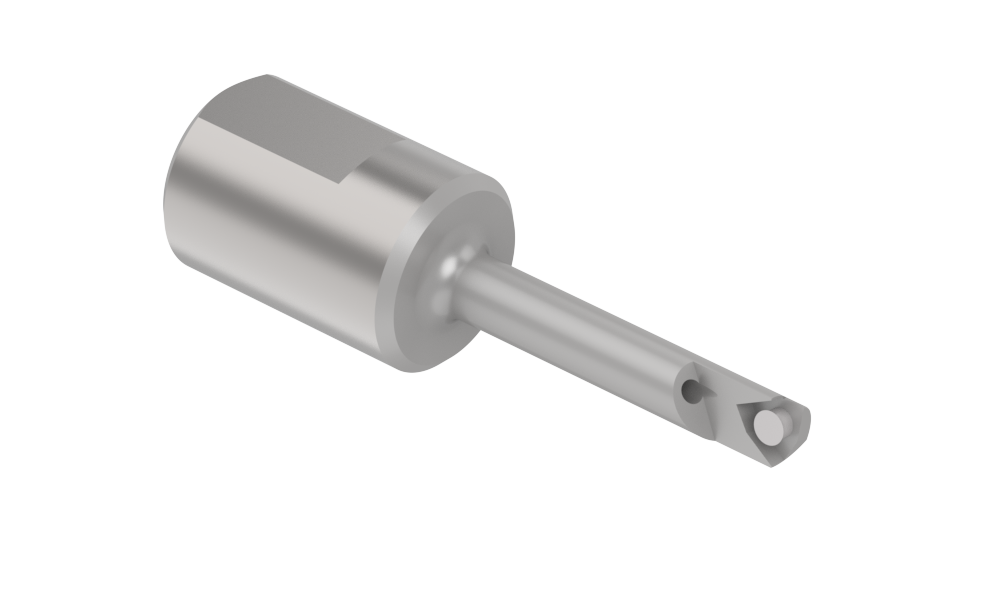

Angle

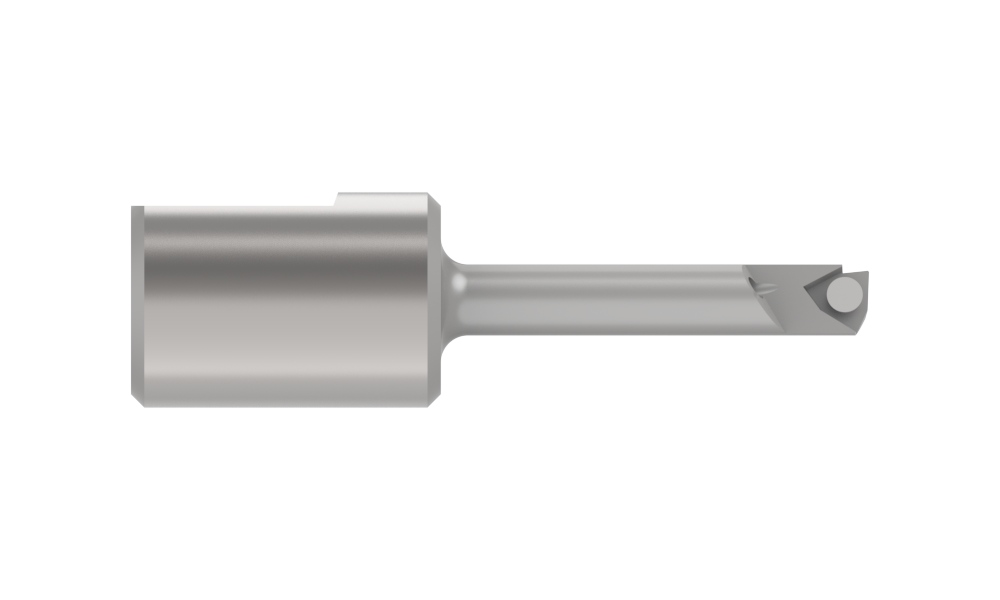

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Heavy Metal
Form Type Form 211
IC Size mm 3.97
IC Size inch 0.156
Insert thickness mm 1.59
Insert thickness inch 0.063
Max bore depth mm 32
Max bore depth inch 1.26
Minimum diameter mm 6
Minimum diameter inch 0.236
Number of Flats 1
Overall length mm 55
Overall length inch 2.165
Shank diameter mm 16
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.176
Weight in kg (each) 0.08
Category Stocked
