081313WHW04

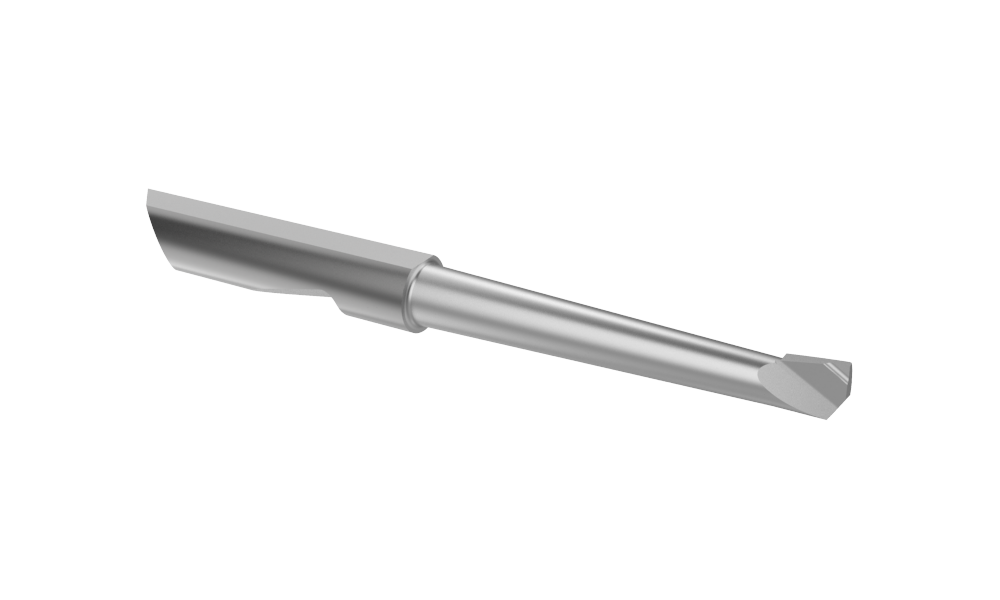

Wohlhaupter® Solid Bar: 0.197" (5.00 mm) Min Ø, 1.181" (30.00 mm) Max depth, 6.00 mm Shank, Carbide
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image
Angle

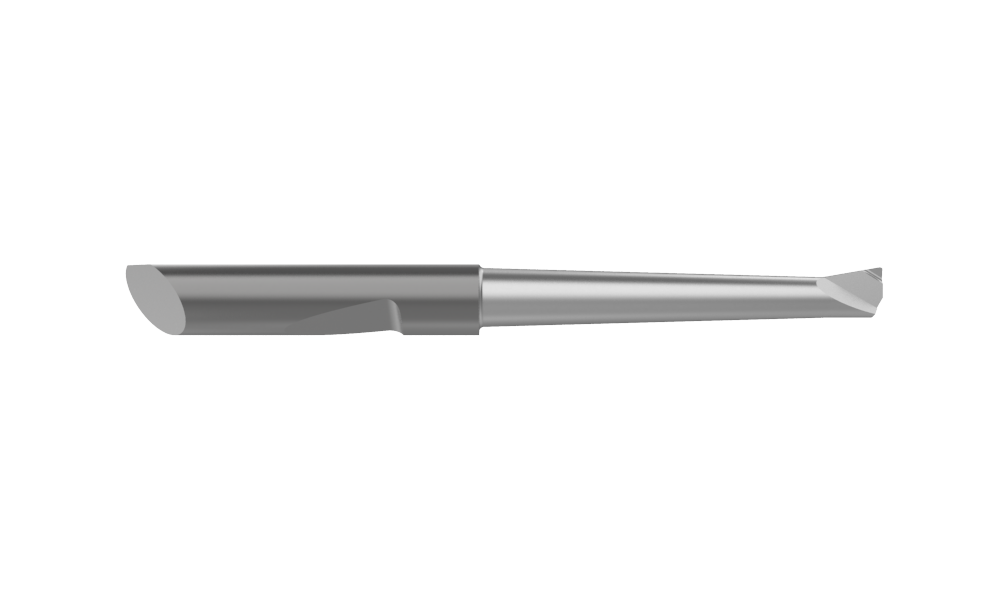

Side
Product Specifications
Product Line VarioBore | PrimeBore | 510 (511) | DigiBore
Male Connection Type Side Lock
Male Connection 6
Minimum Boring Diameter (inch) 0.196
Minimum Boring Diameter (mm) 5.00
Lead-In 90°
Corner Radius (inch) 0.007
Corner Radius (mm) 0.20
Grade WHW04
Material Carbide
Coating Uncoated
Coolant Through No
Type of Product Mini Boring Bar
Product Application Versatile Fine Boring
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0
Weight in kg (each) 0
Category Stocked
