148007
Wohlhaupter® Serrated Body: 3.937" - 6.102" (100 mm -155 mm), MVS 80-36
Wohlhaupter® Serrated Body

Add to cart image Add to list image







Default Image

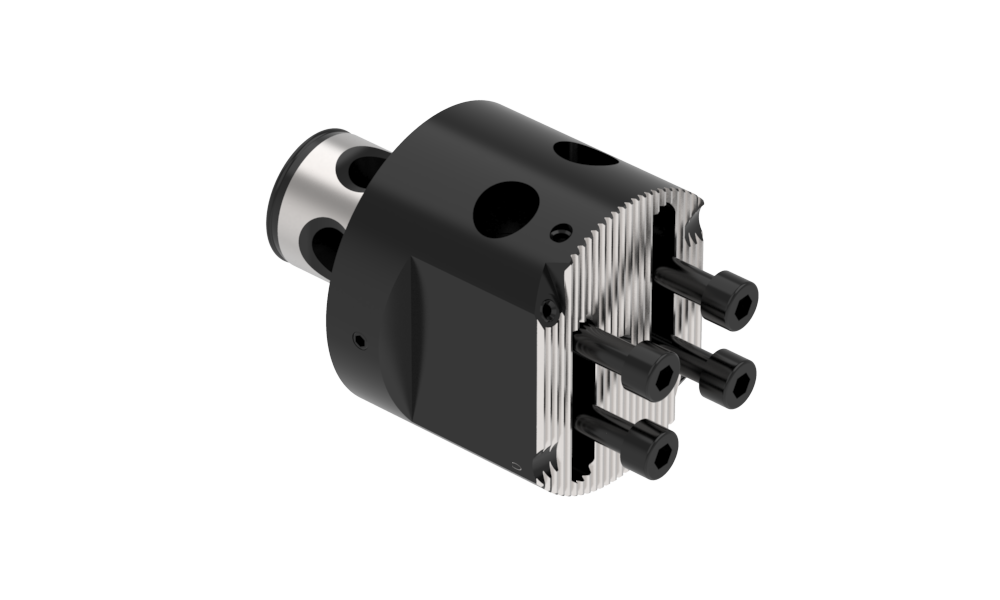

Angle

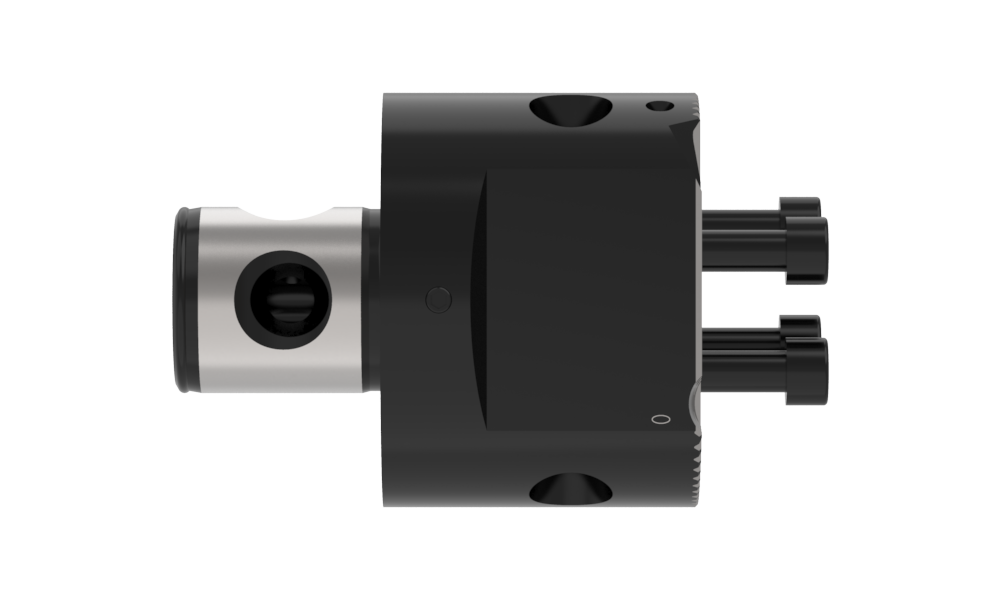

Side
Product Specifications
Type of Product Serrated Body
Minimum diameter mm 100
Minimum diameter inch 3.937
Maximum diameter mm 155
Maximum diameter inch 6.102
Working length mm 90
Working length inch 3.543
Body length mm 60
Body length inch 2.362
Body Diameter mm 80
Body Diameter inch 3.15
Male minor 36
Male major 80
Material Steel
Connection Style MVS
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.925
Weight in kg (each) 2.24
Category Stocked
