148009
Wohlhaupter® Serrated Body: 5.906" - 8.071" (150 mm -205 mm), MVS 80-36
Wohlhaupter® Serrated Body

Add to cart image Add to list image







Default Image

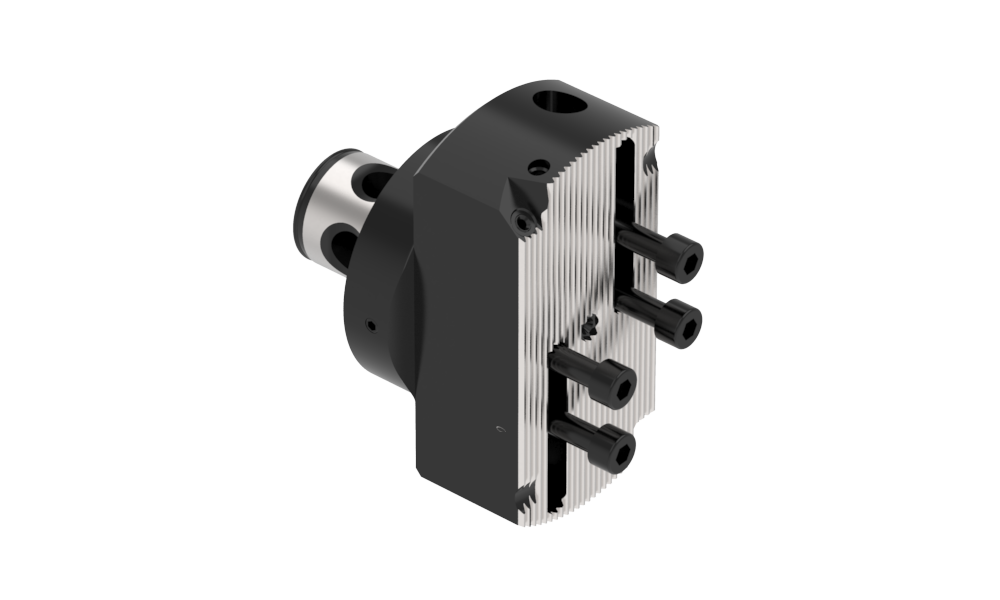

Angle

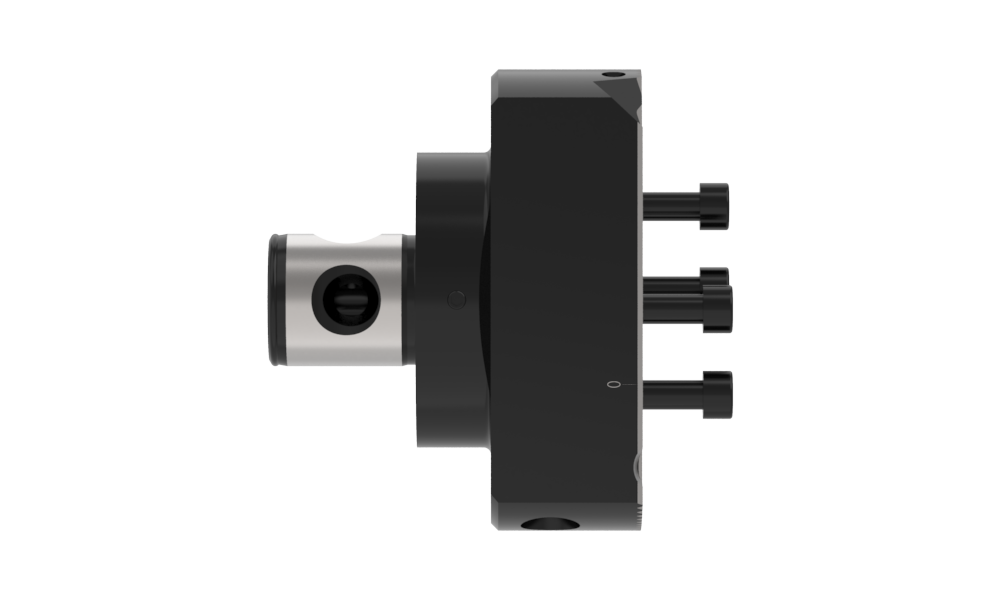

Side
Product Specifications
Type of Product Serrated Body
Minimum diameter mm 150
Minimum diameter inch 5.906
Maximum diameter mm 205
Maximum diameter inch 8.071
Working length mm 90
Working length inch 3.543
Body length mm 60
Body length inch 2.362
Body Diameter mm 125
Body Diameter inch 4.921
Male minor 36
Male major 80
Material Steel
Connection Style MVS
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 6.839
Weight in kg (each) 3.1
Category Stocked
