1C50A-0022
T-A® Replaceable Drill Insert: 0.6875" (17.46 mm), Standard Geometry, TiAlN
T-A® Insert

Add to cart image Add to list image







See Additional Technical Information

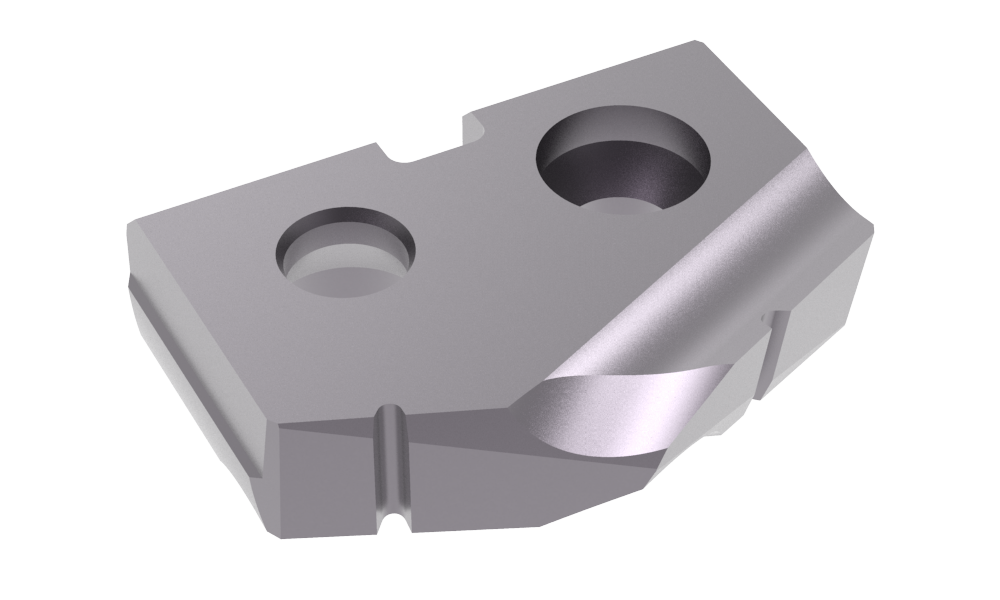

Default Image
Angle

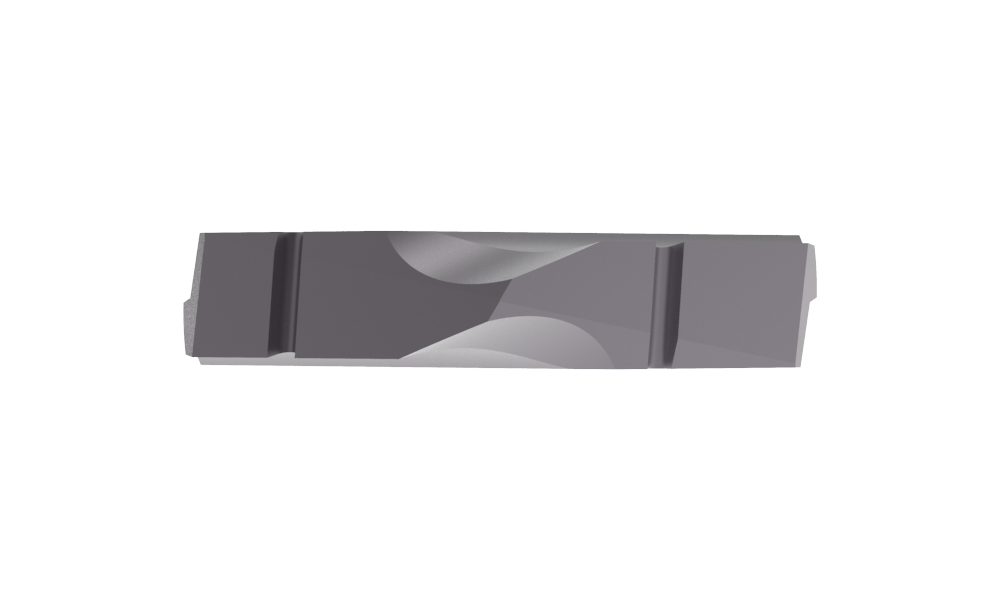

Front

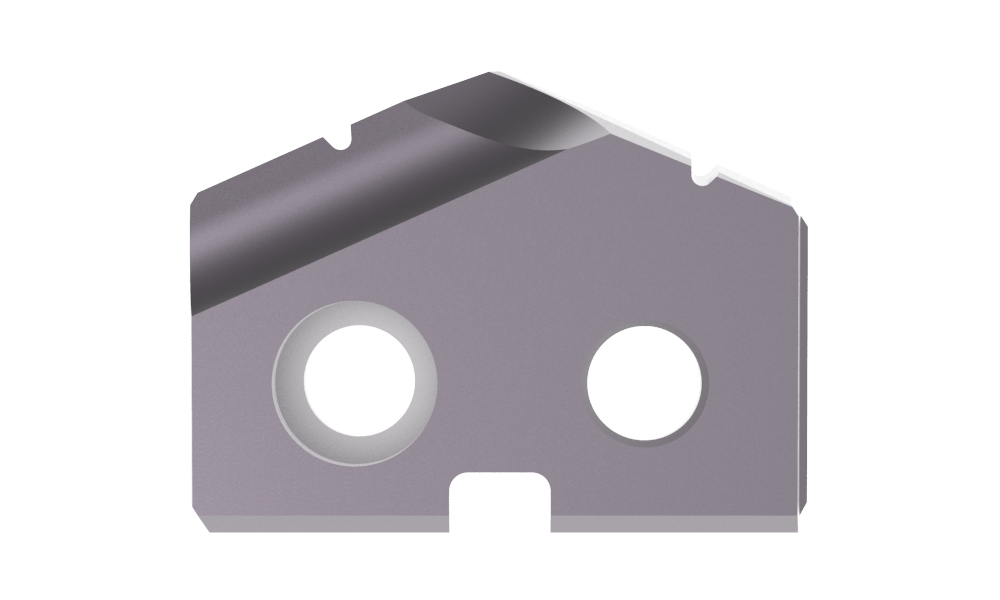

Top
Product Specifications
Series 0
Sub-Series .5
Diameter Fractional Equivalent 11/16"
Diameter inch 0.6875
Diameter mm 17.46
Geometry Standard
Material Carbide
Grade C5 (P40)
Coating TiAlN
Included Angle 132°
Thickness inch 1/8"
Type of Product Replaceable Drill Insert
Product Application General Purpose
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.008
Weight in kg (each) 0
Category Stocked
