210Y0S-16FM
T-A® Replaceable Drill Body: 9.50 mm - 11.09 mm, Stub, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

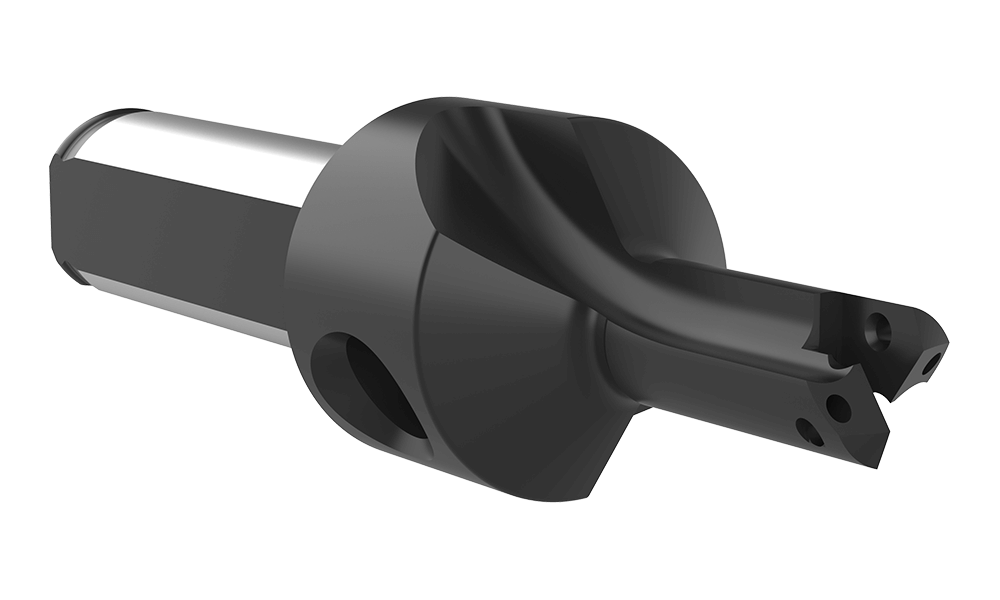

Default Image
Angle

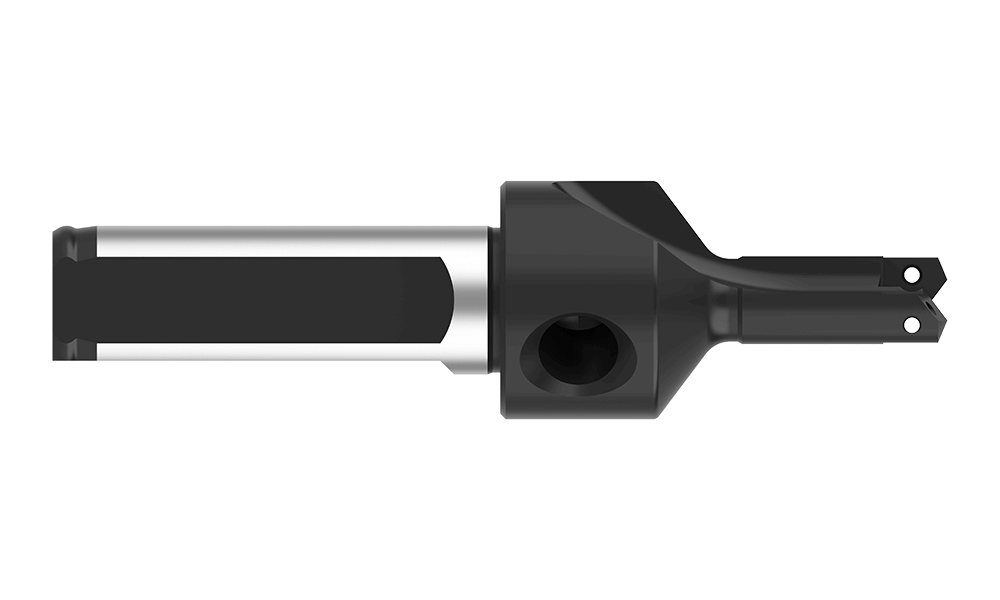

Front

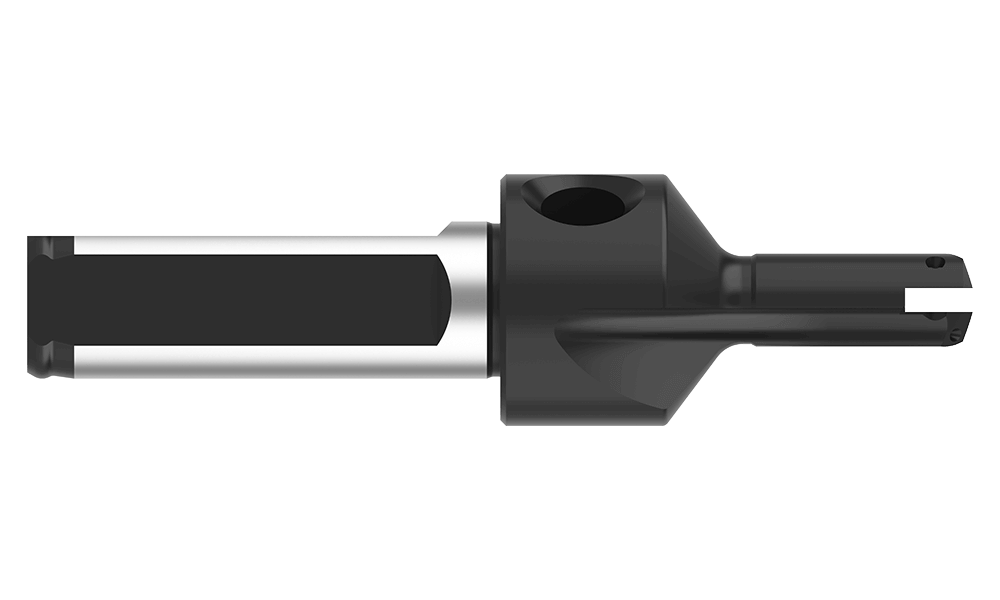

Side
Product Specifications
Series Y
Minimum diameter mm 9.50
Maximum diameter mm 11.09
Length Type Stub
Flute Type Straight
Overall length mm 95.6
Tool Reference Length mm 49.9
Body length mm 47.6
Drill depth mm 21.9
Shank type Flanged
Shank diameter mm 16
Shank length mm 48.0
Pipe tap rear inch 1/16
Pipe tap rear mm 1/16 BSPT
Pipe tap side inch 1/8
Pipe tap side mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 724-IP7-1 (Qty0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.32
Weight in kg (each) 0.15
Category Stocked
