210Z0S-20ER
T-A® Replaceable Drill Body: 11.10 mm - 12.97 mm, Stub, ER20 Collet Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

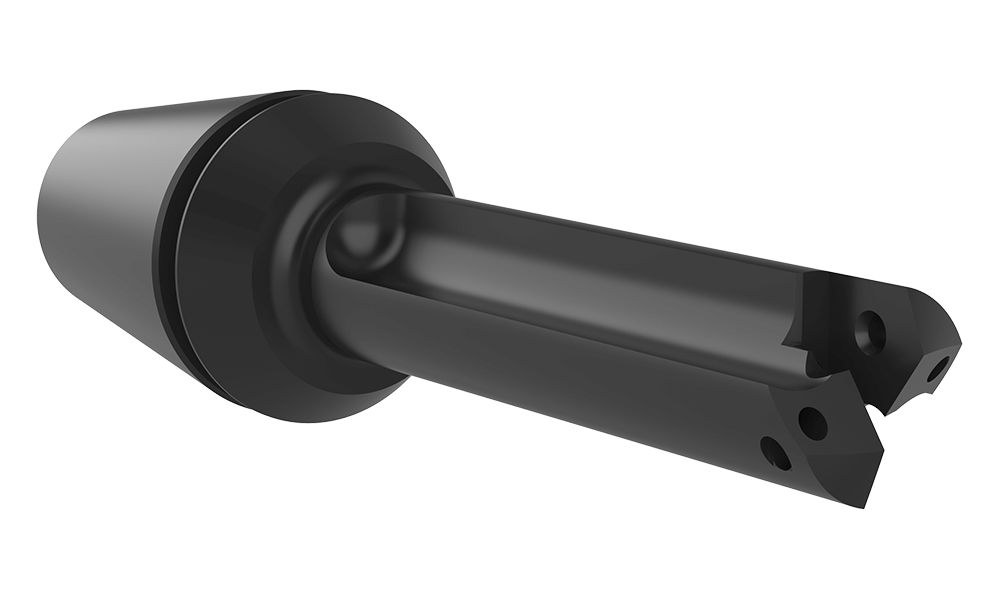

Angle

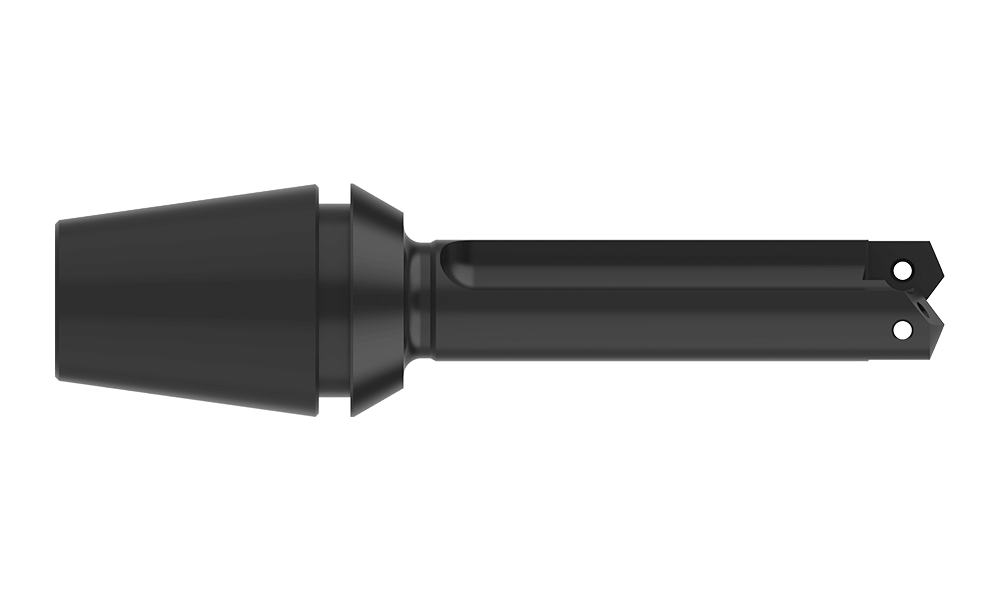

Front

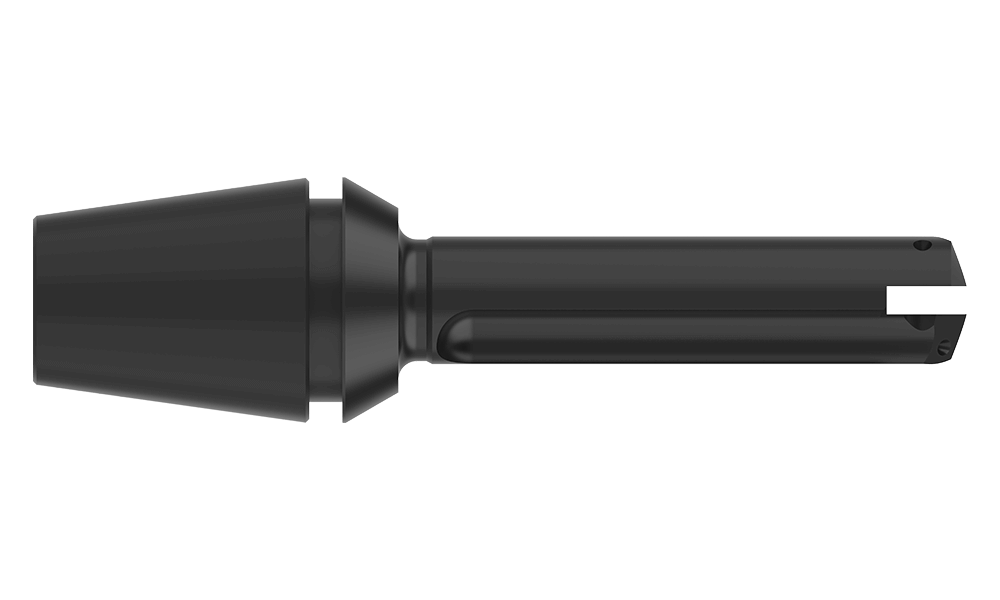

Side
Product Specifications
Series Z
Minimum diameter mm 11.10
Maximum diameter mm 12.97
Length Type Stub
Flute Type Straight
Overall length mm 79.8
Tool Reference Length mm 50.8
Body length mm 48.5
Drill depth mm 42.1
Shank type ER20 Collet
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.18
Weight in kg (each) 0.08
Category Stocked
