22040S-150F
T-A® Replaceable Drill Body: 1.8500" - 2.5709", Short, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

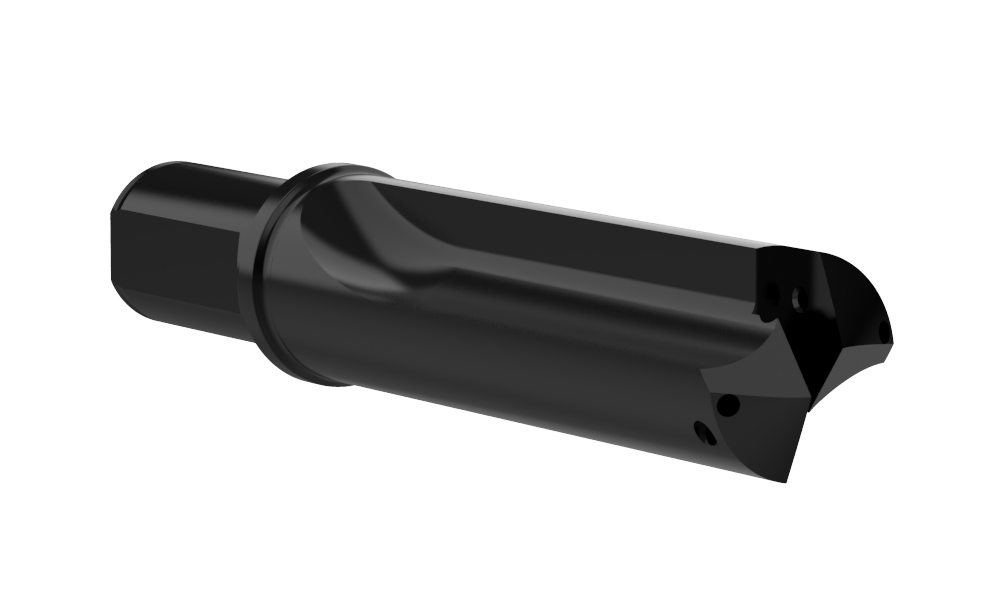

Default Image
Angle

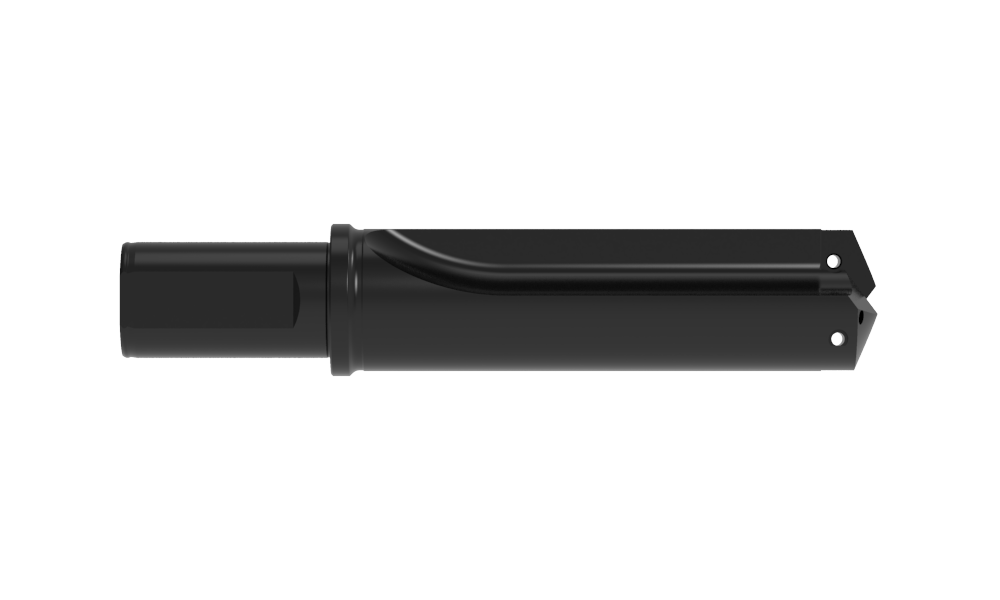

Front

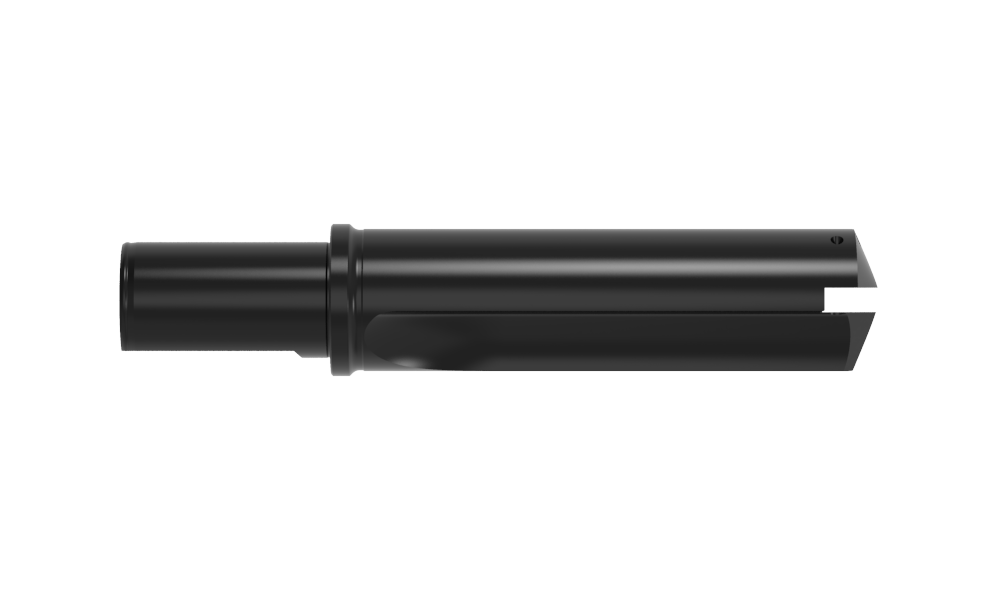

Side
Product Specifications
Series 4
Minimum diameter inch 1.8500
Maximum diameter inch 2.5709
Length Type Short
Flute Type Straight
Overall length inch 9.751
Tool Reference Length inch 7.250
Body length inch 7.063
Drill depth inch 4.798
Shank type Flanged
Shank diameter inch 1-1/2
Shank length inch 2.688
Pipe tap rear inch 1/4 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 5.13
Weight in kg (each) 2.33
Category Stocked
