22070S-50FM
T-A® Replaceable Drill Body: 89.10 mm - 114.48 mm, Short, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

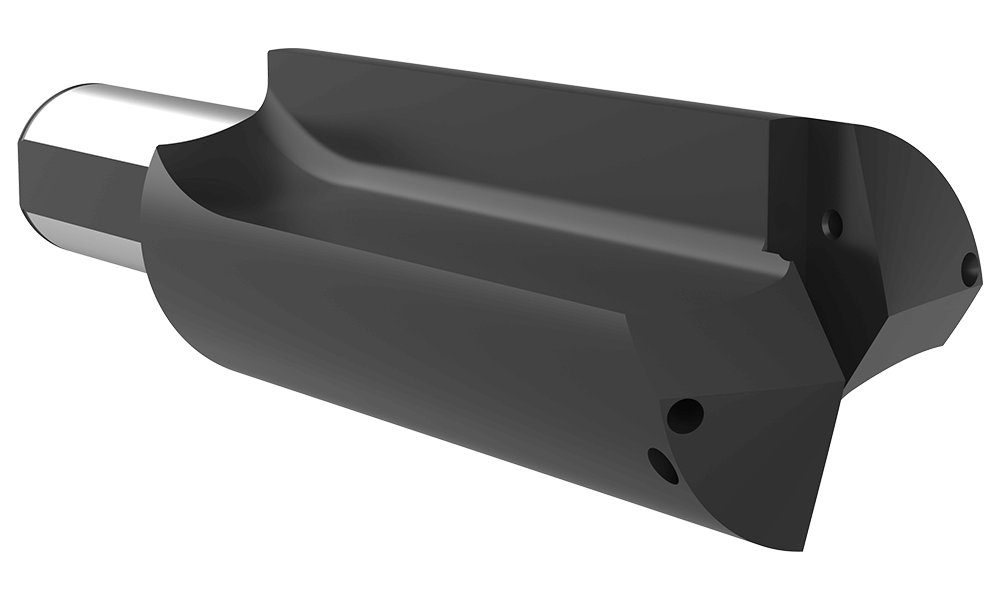

Default Image
Angle

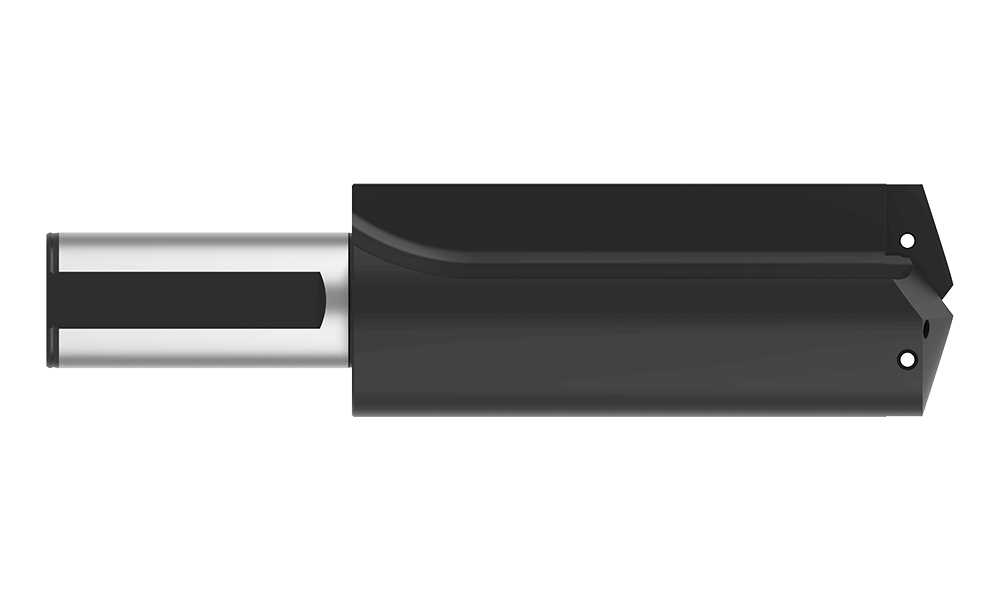

Front

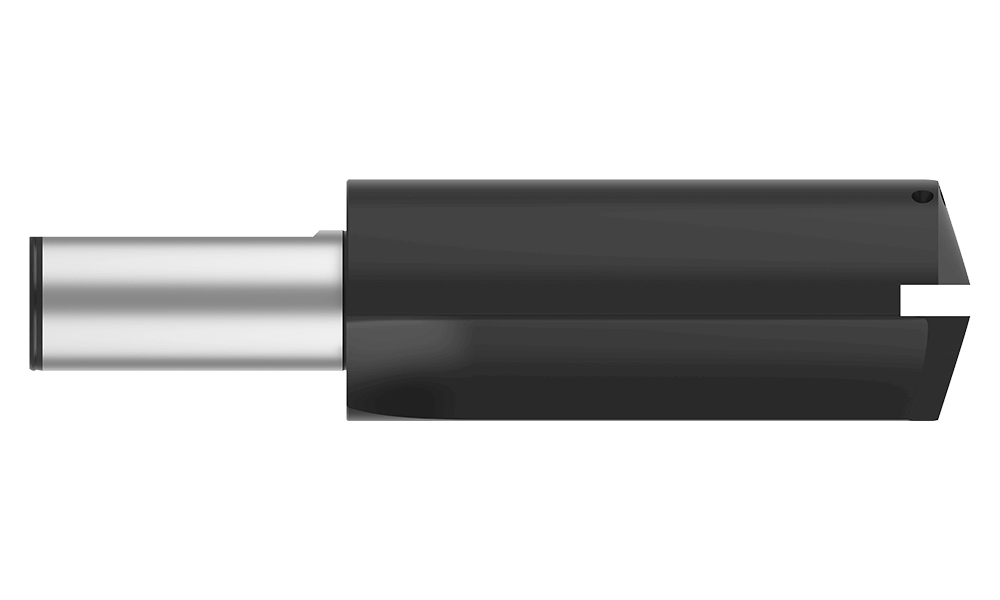

Side
Product Specifications
Series 7
Minimum diameter mm 89.10
Maximum diameter mm 114.48
Length Type Short
Flute Type Straight
Overall length mm 305.4
Tool Reference Length mm 231.8
Body length mm 225.4
Drill depth mm 178.9
Shank type Flanged
Shank diameter mm 50
Shank length mm 80.0
Pipe tap rear inch 1/2
Pipe tap rear mm 1/2 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7619-IP25-1 (Qty0)
Replacement T-A® Screw
5-8 KIT (1) TORX PLUS,CL 6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-25 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-25
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 18.13
Weight in kg (each) 8.23
Category Stocked
