24020S-100L

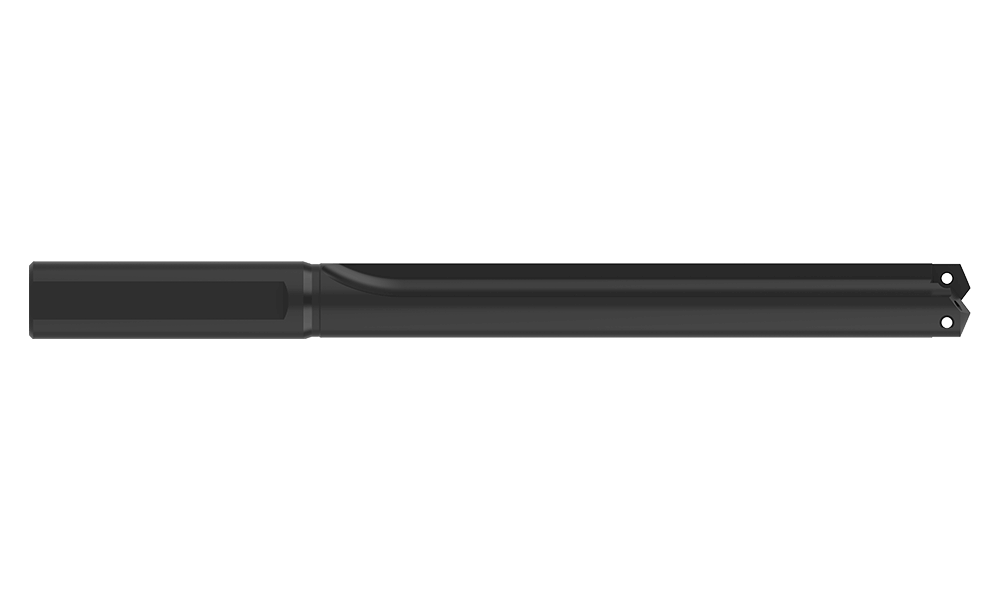

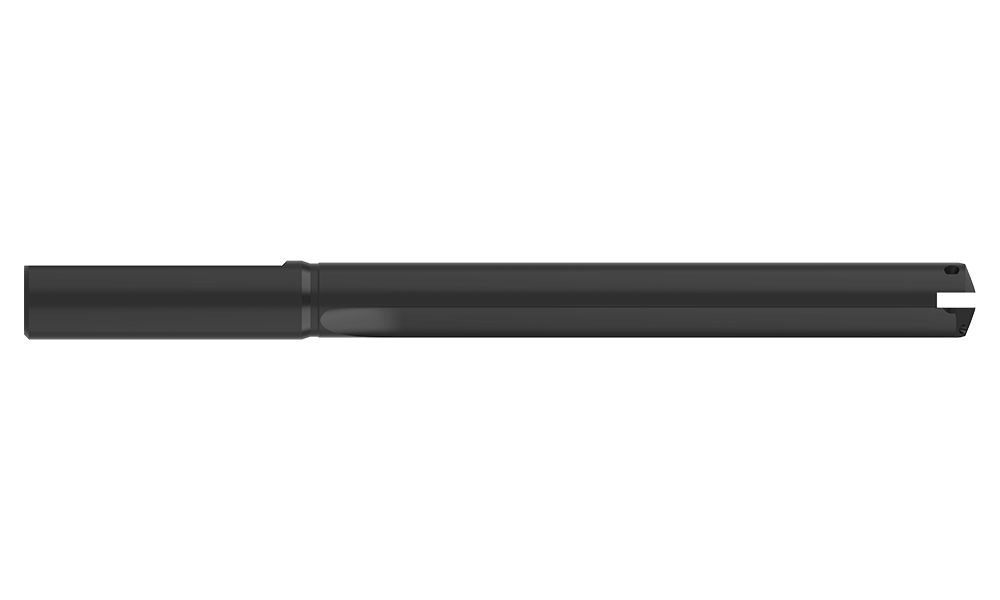

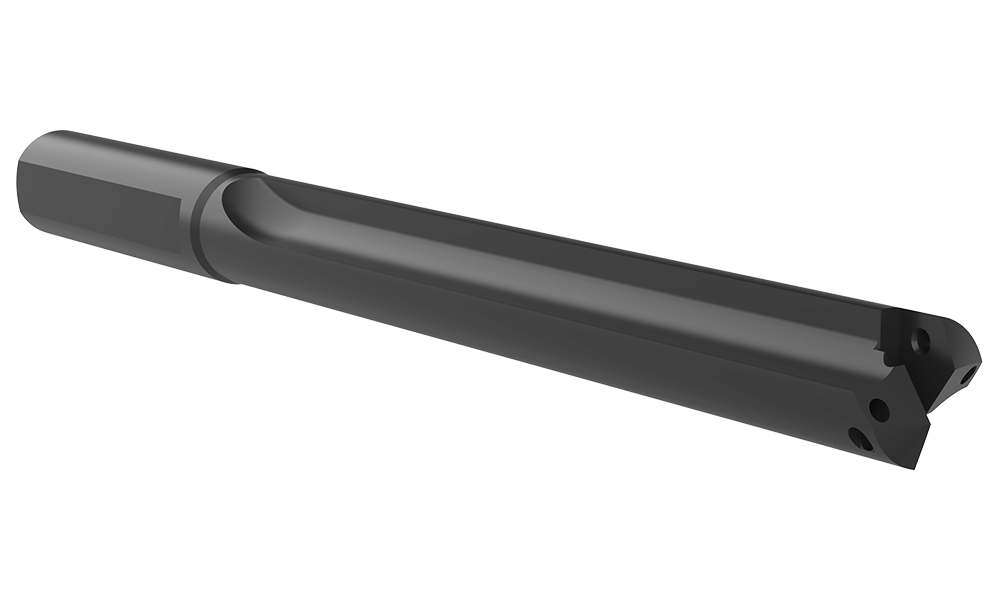

T-A® Replaceable Drill Body: 0.9610" - 1.3809", Standard, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 2
Minimum Diameter (inch) 0.9610
Maximum Diameter (inch) 1.3809
Length Type Standard
Flute Type Straight
Overall Length (inch) 12.000
Tool Reference Length (inch) 8.640
Body Length (inch) 8.500
Drill Depth (inch) 7.226
Shank Type Lathe
Shank Diameter (inch) 1
Shank Length (inch) 3.5000
Pipe Tap Rear (inch) 1/8 NPT
Pipe Tap Side (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.93
Weight in kg (each) 0.88
Category Stocked
