24050S-200L
T-A® Replaceable Drill Body: 2.4560" - 3.5079", Standard, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

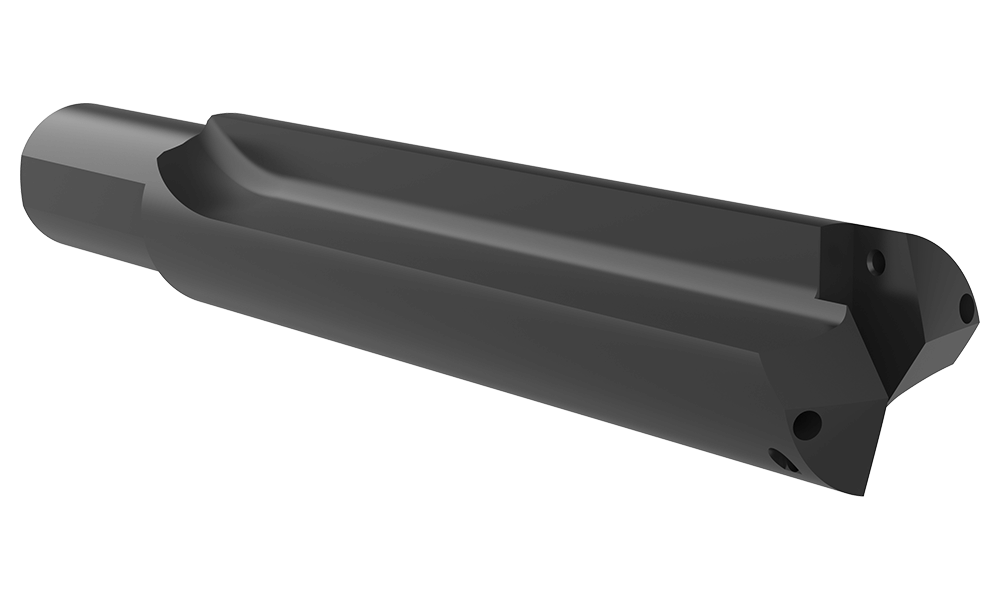

Default Image
Angle
Front
Side
Product Specifications
Series 5
Minimum diameter inch 2.4560
Maximum diameter inch 3.5079
Length Type Standard
Flute Type Straight
Overall length inch 16.500
Tool Reference Length inch 12.750
Body length inch 12.500
Drill depth inch 10.353
Shank type Lathe
Shank diameter inch 2
Shank length inch 4.000
Pipe tap rear inch 1/2 NPT
Pipe tap side inch 1/2 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7619-IP25-1 (Qty0)
Replacement T-A® Screw
5-8 KIT (1) TORX PLUS,CL 6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-25 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-25
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 15.24
Weight in kg (each) 6.92
Category Stocked
