25005S-075F
T-A® Replaceable Drill Body: 0.6094" - 0.6959", Extended, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

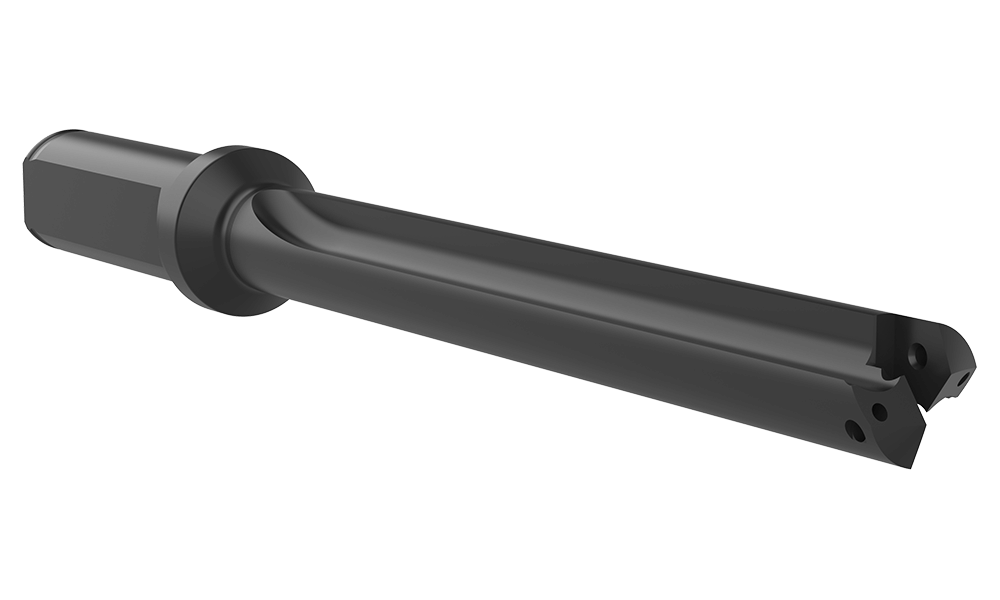

Default Image
Angle

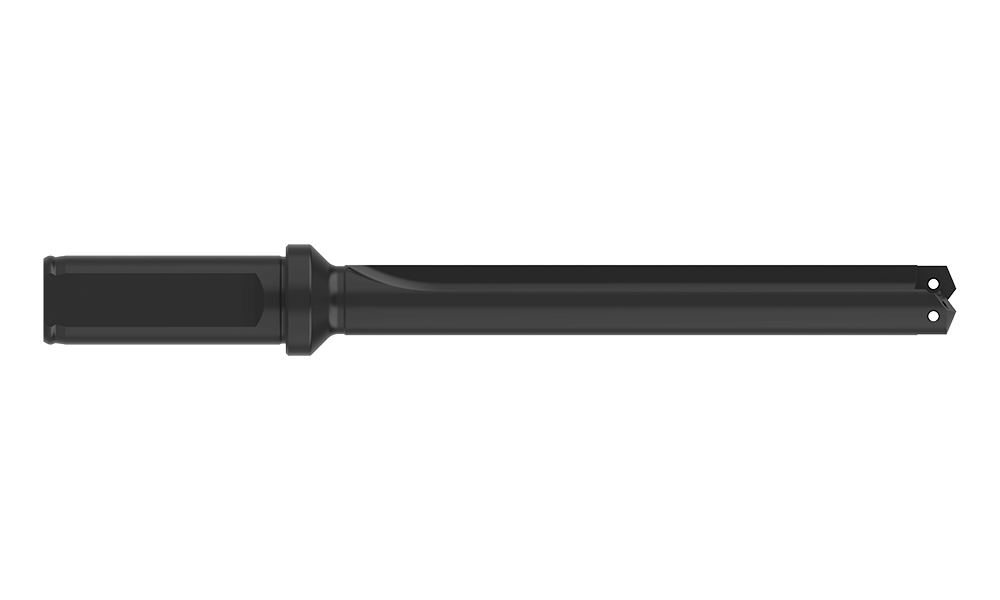

Front

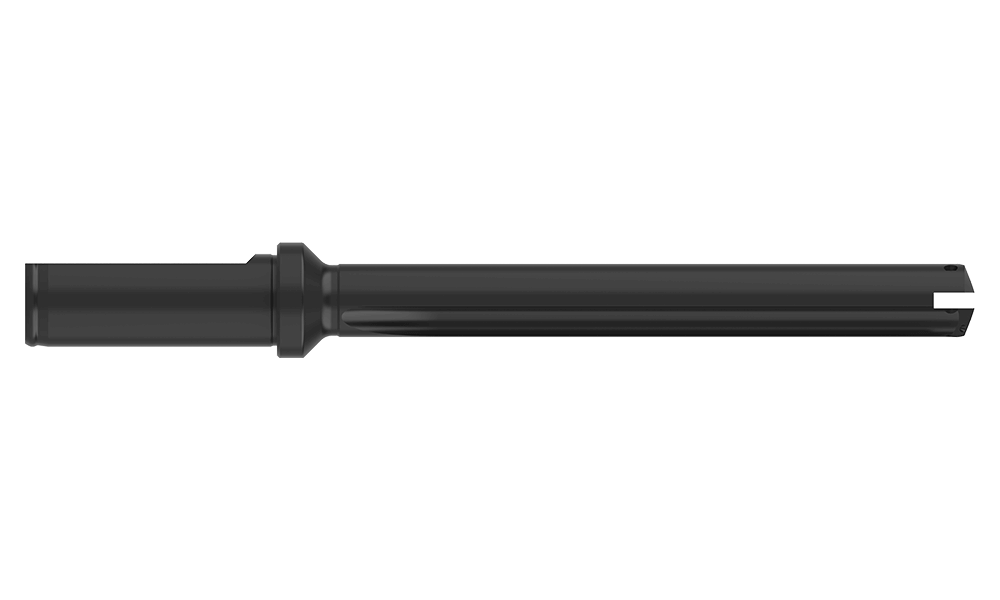

Side
Product Specifications
Series 0
Sub-Series .5
Minimum diameter inch 0.6094
Maximum diameter inch 0.6959
Length Type Extended
Flute Type Straight
Overall length inch 7.655
Tool Reference Length inch 5.732
Body length inch 5.625
Drill depth inch 4.320
Shank type Flanged
Shank diameter inch 3/4
Shank length inch 2.030
Pipe tap rear inch 1/8 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement T-A® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.59
Weight in kg (each) 0.27
Category Stocked
