25010H-004IS052
T-A® Structural Steel Replaceable Drill Body: 0.8125" - 0.9609", Extended, Morse Taper (SS) Shank
T-A® SS Holder

Add to cart image Add to list image







See Additional Technical Information

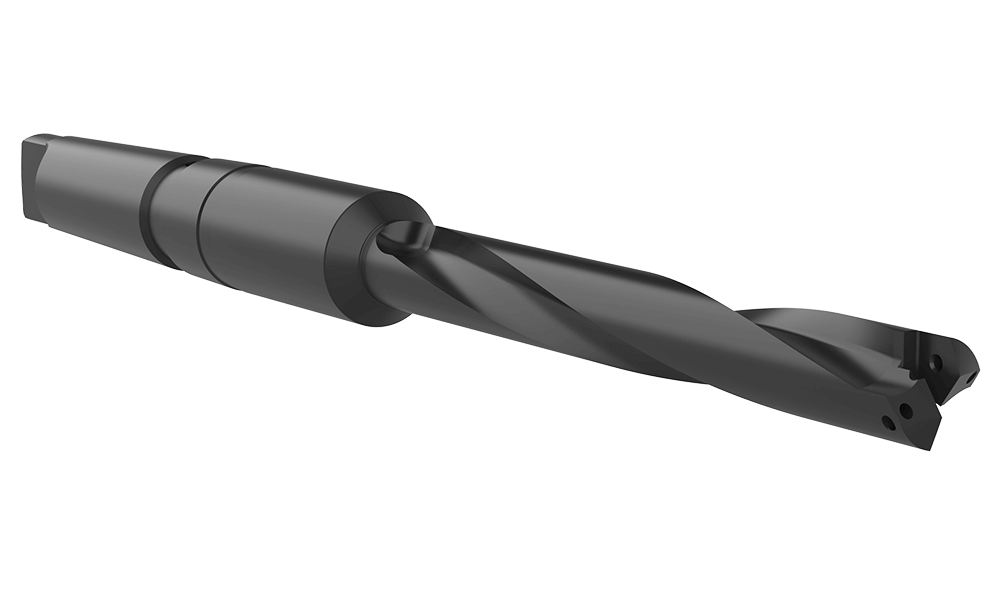

Default Image
Angle
Front

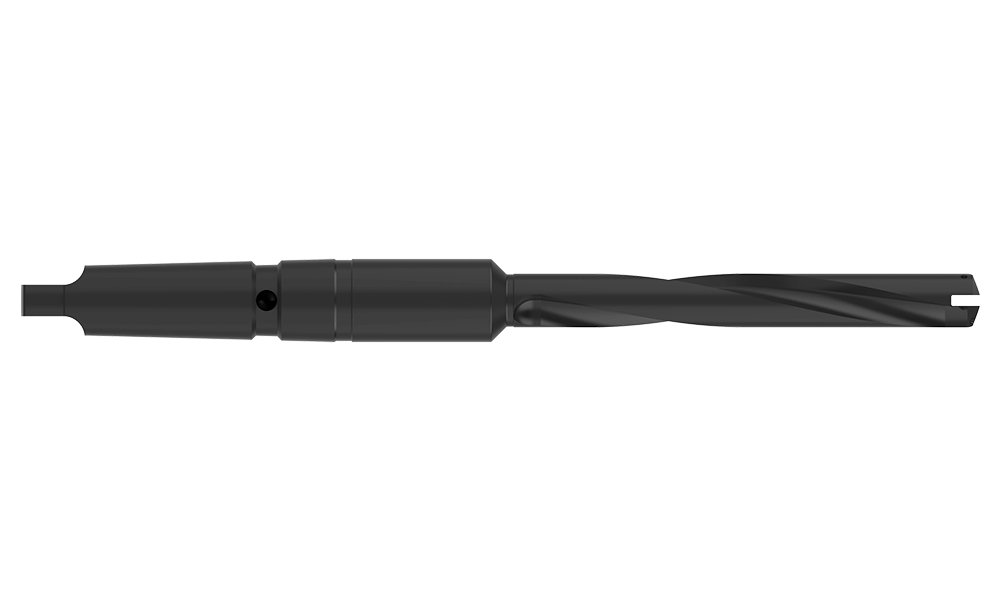

Side
Product Specifications
Series 1
Minimum diameter inch 0.8125
Maximum diameter inch 0.9609
Length Type Extended
Flute Type Helical
Overall length inch 14.235
Tool Reference Length inch 9.484
Body length inch 9.360
Drill depth inch 6.688
Shank type Morse Taper (SS)
Shank diameter inch #4 MT
Coolant Inlet Style Rear Through Tang Coolant
Coolant Inlet Style Side Through Shank Coolant
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application Structural Steel
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.63
Weight in kg (each) 1.19
Category Stocked
