25070S-005M

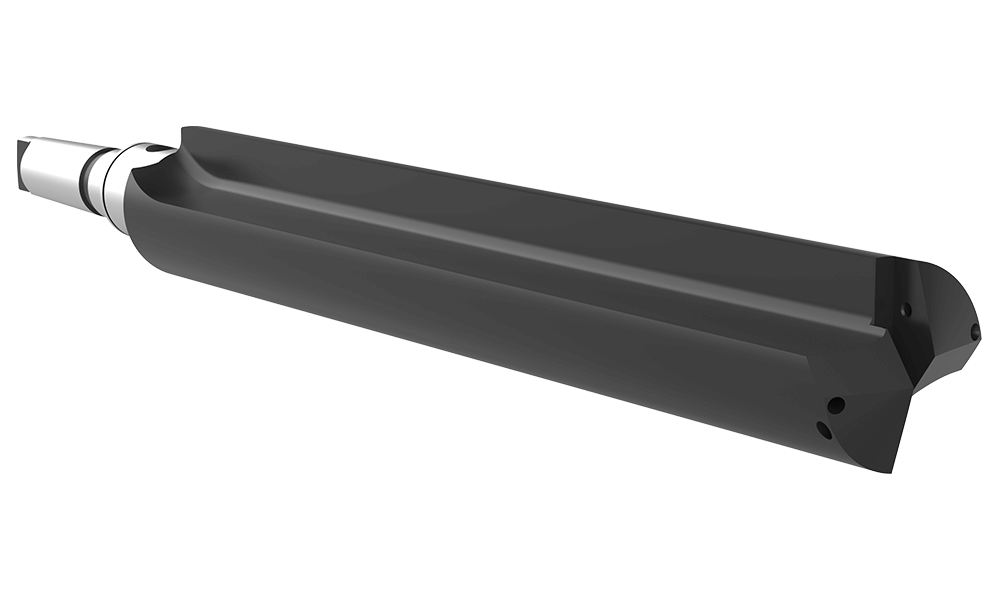

T-A® Replaceable Drill Body: 89.10 mm - 114.48 mm, Extended, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 7
Minimum diameter mm 89.10
Maximum diameter mm 114.48
Length Type Extended
Flute Type Straight
Overall length mm 823.9
Tool Reference Length mm 681.0
Body length mm 609.6
Drill depth mm 561.3
Shank type Morse Taper
Shank diameter mm #5 MT ISO
Pipe tap side inch 1/2
Pipe tap side mm 1/2 BSPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7619-IP25-1 (Qty0)
Replacement T-A® Screw
5-8 KIT (1) TORX PLUS,CL 6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-25 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-25
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 48.82
Weight in kg (each) 22.16
Category Stocked
