250Y0H-002M
T-A® Replaceable Drill Body: 9.50 mm - 11.09 mm, Extended, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

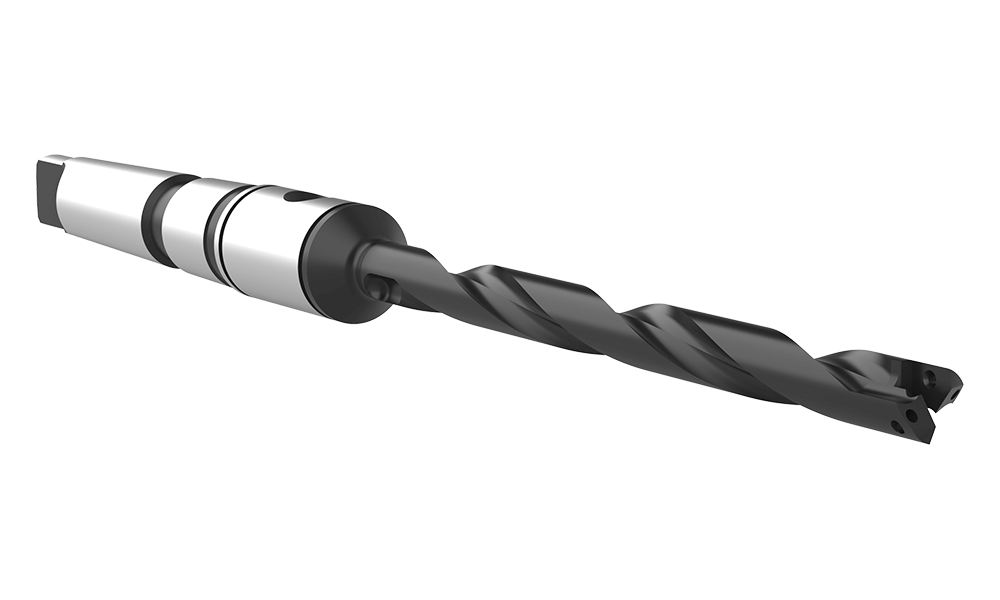

Angle

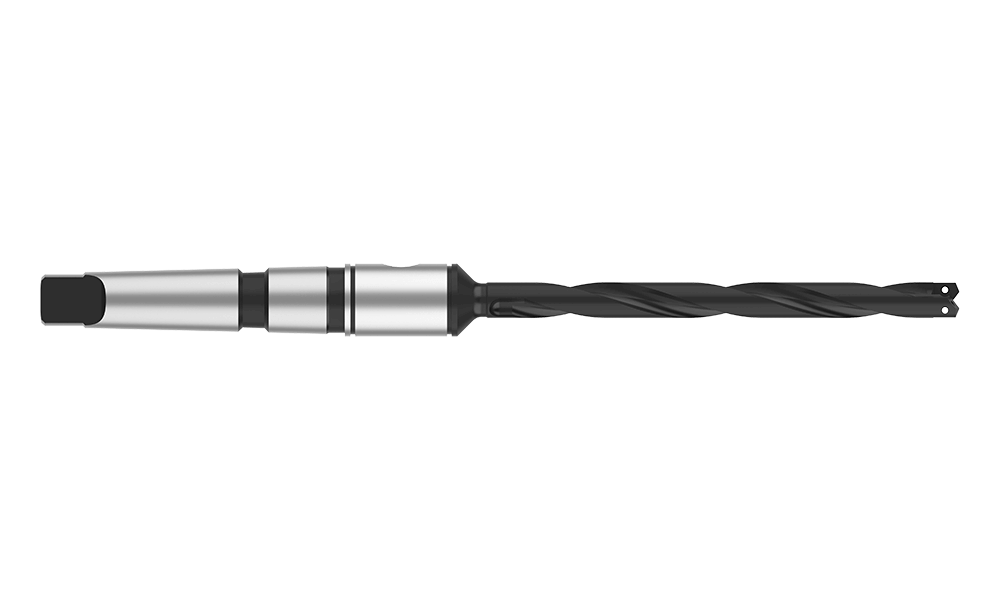

Front

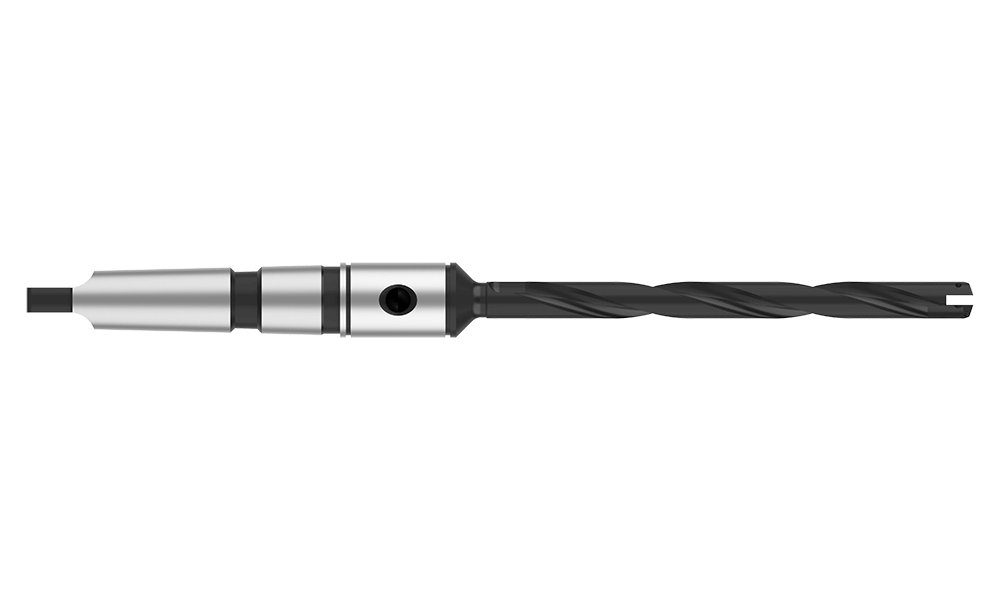

Side
Product Specifications
Series Y
Minimum diameter mm 9.50
Maximum diameter mm 11.09
Length Type Extended
Flute Type Helical
Overall length mm 239.7
Tool Reference Length mm 167.4
Body length mm 131.0
Drill depth mm 119.9
Shank type Morse Taper
Shank diameter mm #2 MT ISO
Pipe tap side inch 1/16
Pipe tap side mm 1/16 BSPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 724-IP7-1 (Qty0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.5
Weight in kg (each) 0.23
Category Stocked
