250Z0H-075F
T-A® Replaceable Drill Body: 0.4370" - 0.5109", Extended, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front

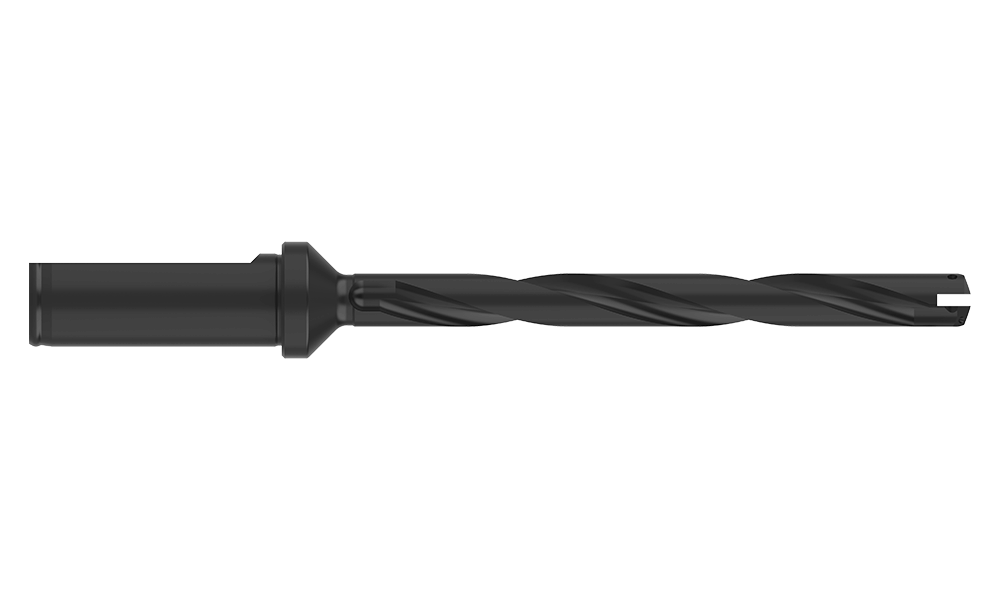

Side
Product Specifications
Series Z
Minimum diameter inch 0.4370
Maximum diameter inch 0.5109
Length Type Extended
Flute Type Helical
Overall length inch 7.561
Tool Reference Length inch 5.621
Body length inch 5.531
Drill depth inch 4.874
Shank type Flanged
Shank diameter inch 3/4
Shank length inch 2.030
Pipe tap rear inch 1/8 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.44
Weight in kg (each) 0.2
Category Stocked
