26020H-125F
T-A® Replaceable Drill Body: 0.9610" - 1.3809", Long, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

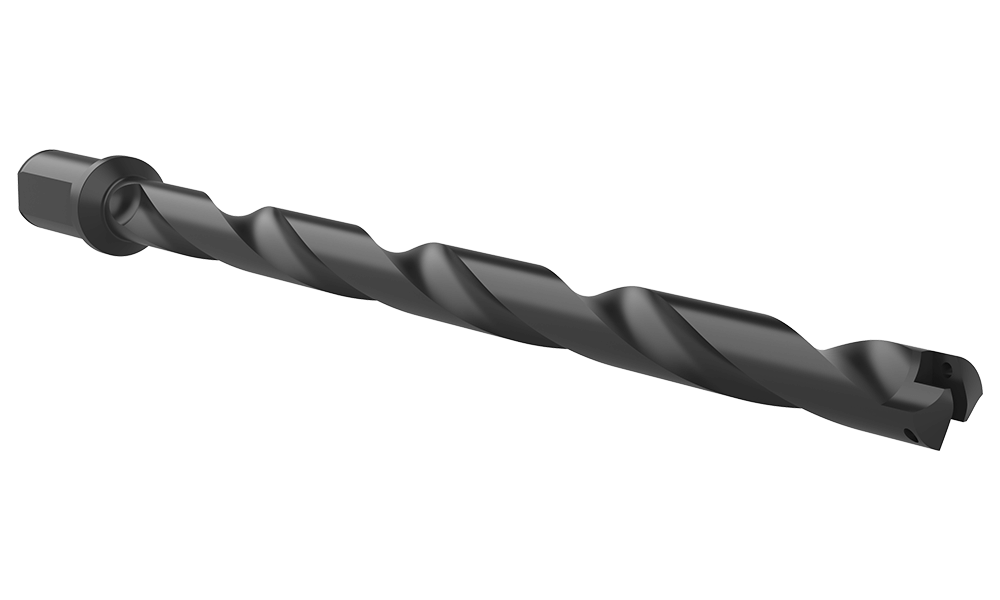

Default Image
Angle
Front
Side
Product Specifications
Series 2
Minimum diameter inch 0.9610
Maximum diameter inch 1.3809
Length Type Long
Flute Type Helical
Overall length inch 20.111
Tool Reference Length inch 17.971
Body length inch 17.831
Drill depth inch 16.861
Shank type Flanged
Shank diameter inch 1-1/4
Shank length inch 2.280
Pipe tap rear inch 1/4 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 3.35
Weight in kg (each) 1.52
Category Stocked
