27000S-075L
T-A® Replaceable Drill Body: 0.5110" - 0.6959", XL, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

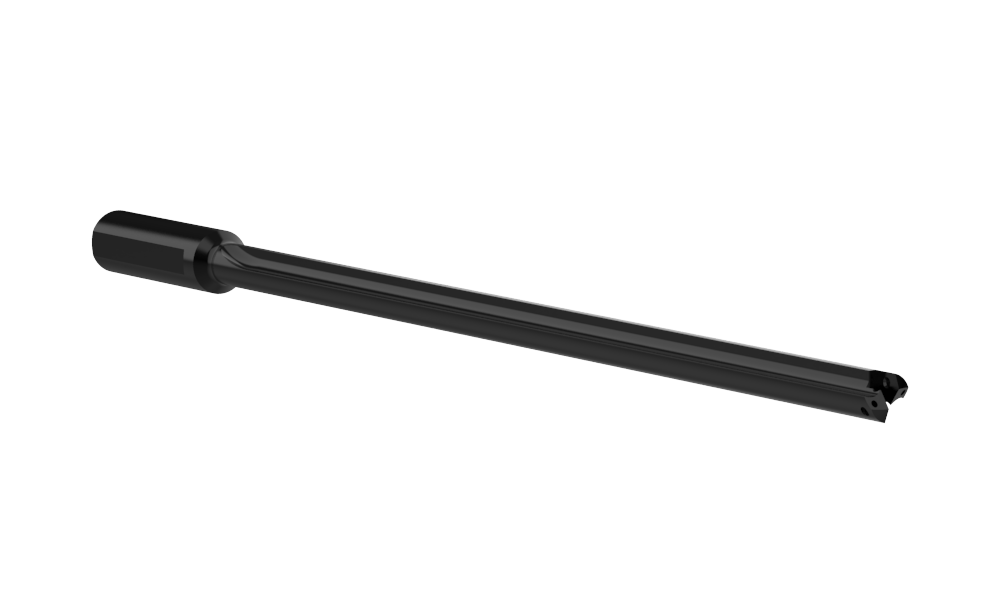

Default Image
Angle

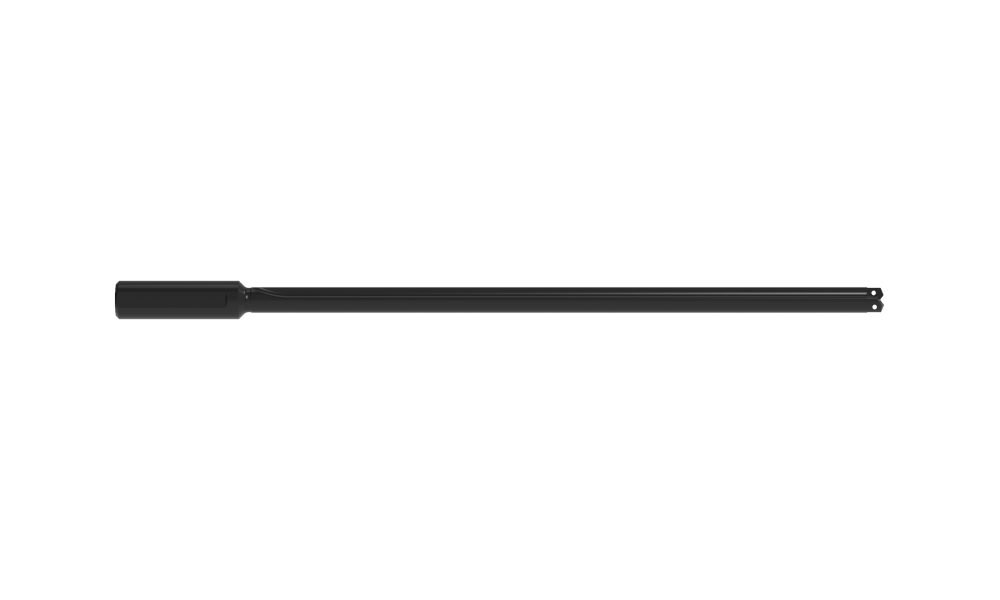

Front

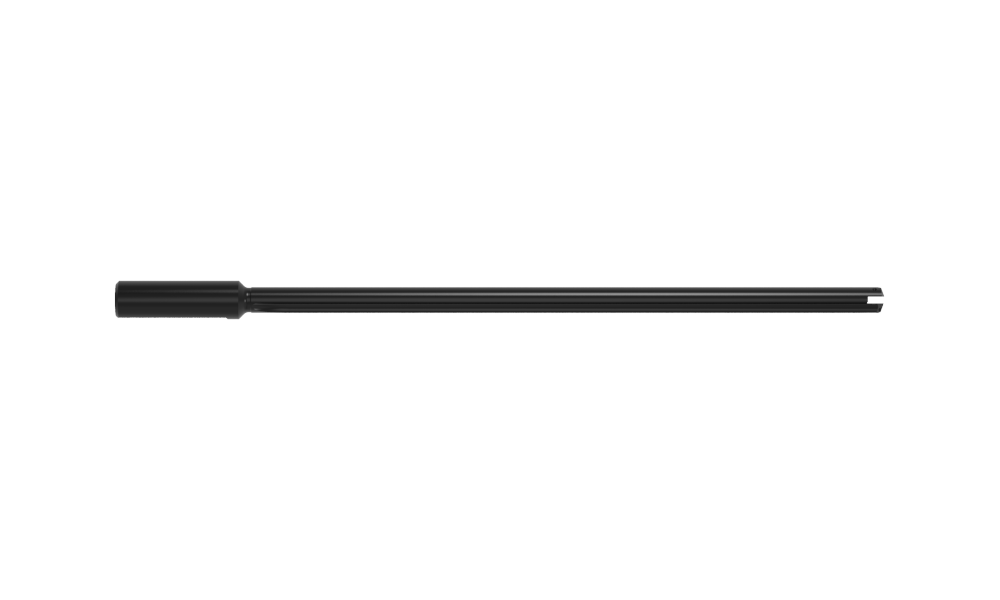

Side
Product Specifications
Series 0
Minimum diameter inch 0.5110
Maximum diameter inch 0.6959
Length Type XL
Flute Type Straight
Overall length inch 14.813
Tool Reference Length inch 12.545
Body length inch 12.438
Drill depth inch 11.468
Shank type Lathe
Shank diameter inch 3/4
Shank length inch 2.375
Pipe tap rear inch 1/8 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.78
Weight in kg (each) 0.35
Category Stocked
