27030S-40FM
T-A® Replaceable Drill Body: 34.37 mm - 47.82 mm, XL, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

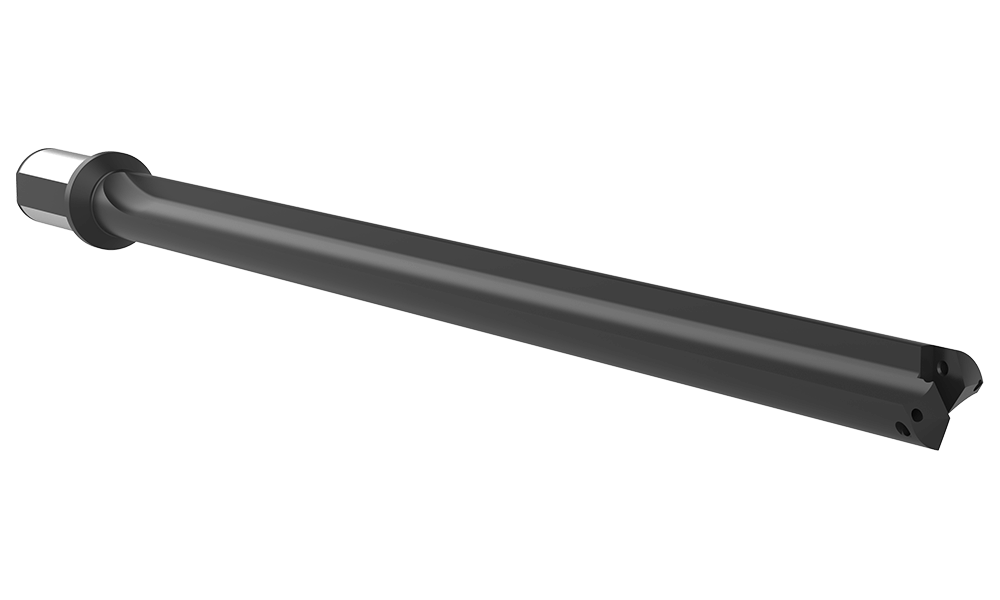

Default Image
Angle

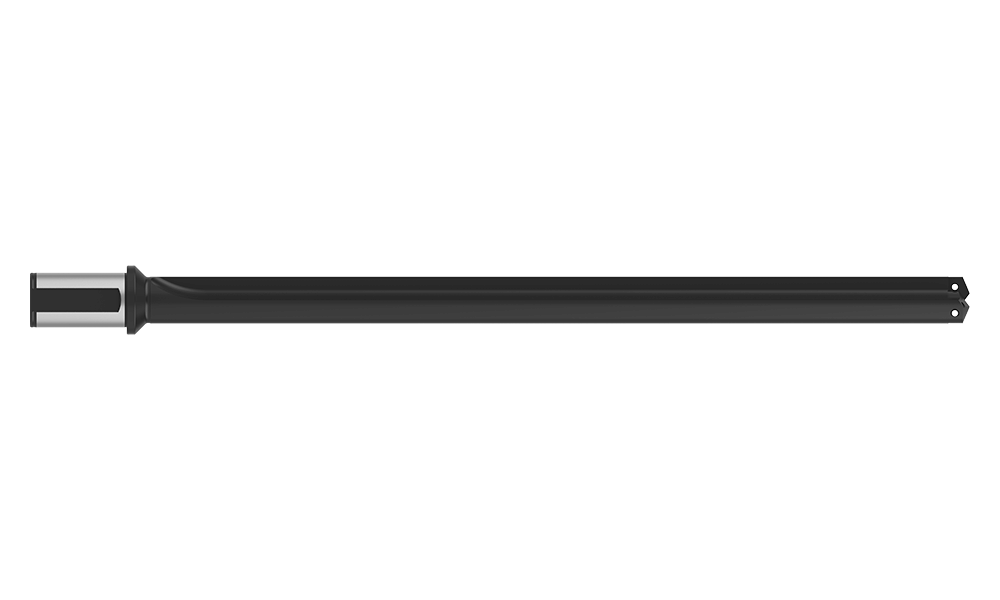

Front

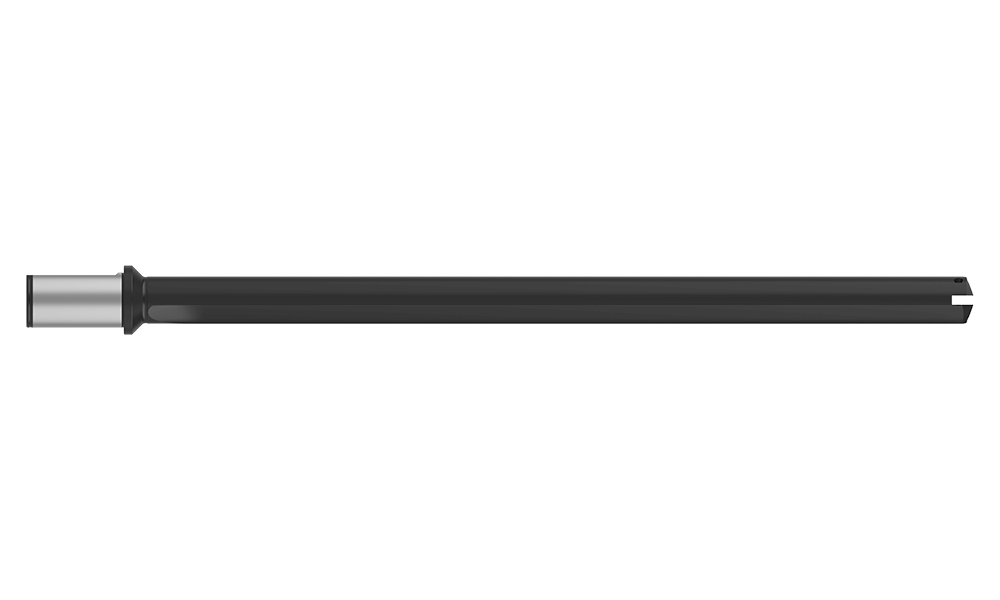

Side
Product Specifications
Series 3
Minimum diameter mm 34.37
Maximum diameter mm 47.82
Length Type XL
Flute Type Straight
Overall length mm 681.2
Tool Reference Length mm 616.0
Body length mm 611.2
Drill depth mm 552.8
Shank type Flanged
Shank diameter mm 40
Shank length mm 70.0
Pipe tap rear inch 1/4
Pipe tap rear mm 1/4 BSPT
Pipe tap side inch 1/4
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 8.42
Weight in kg (each) 3.82
Category Stocked
