29010S-100L

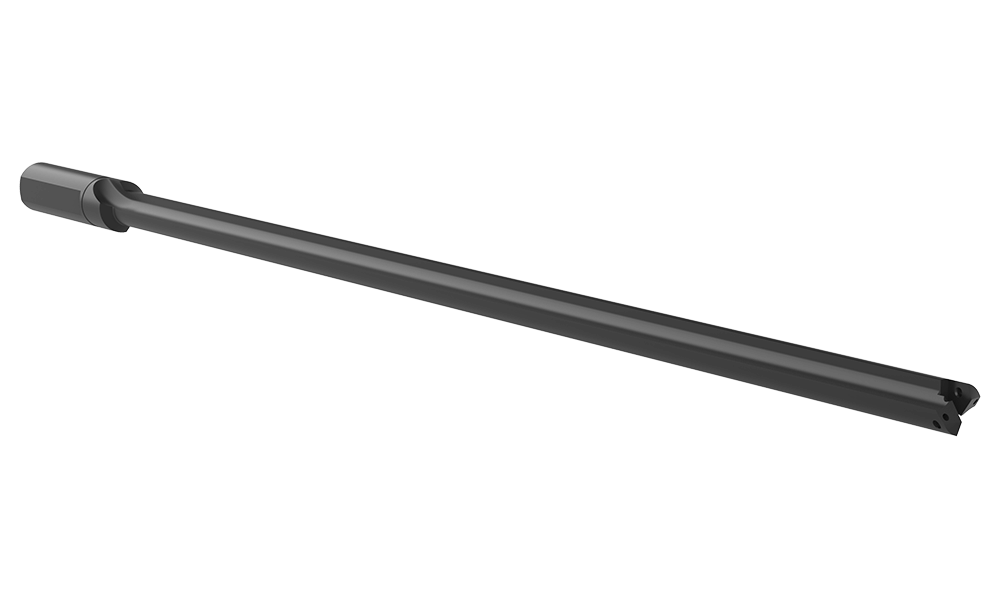

T-A® Replaceable Drill Body: 0.6900" - 0.9609", 3XL, Lathe Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 1
Minimum diameter inch 0.6900
Maximum diameter inch 0.9609
Length Type 3XL
Flute Type Straight
Overall length inch 26.500
Tool Reference Length inch 23.640
Body length inch 23.500
Drill depth inch 22.272
Shank type Lathe
Shank diameter inch 1
Shank length inch 3.000
Pipe tap rear inch 1/8 NPT
Pipe tap side inch 1/8 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.39
Weight in kg (each) 1.09
Category Stocked
