29030S-004I

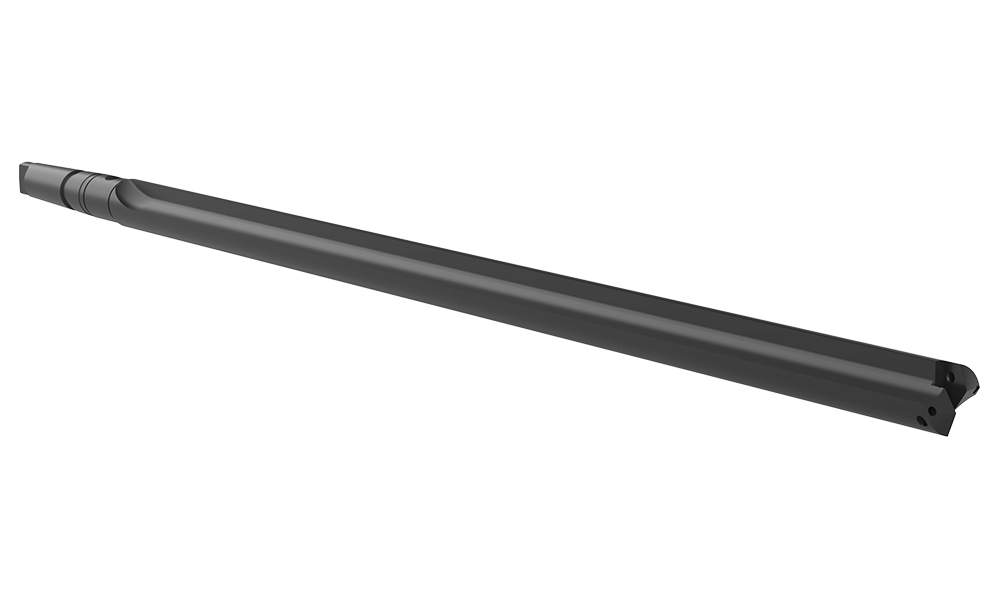

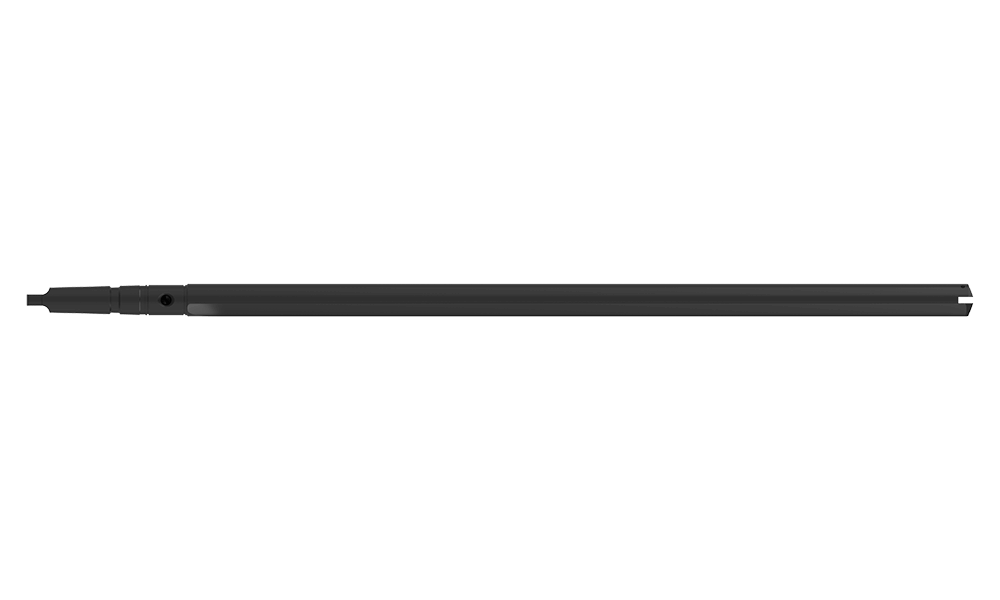

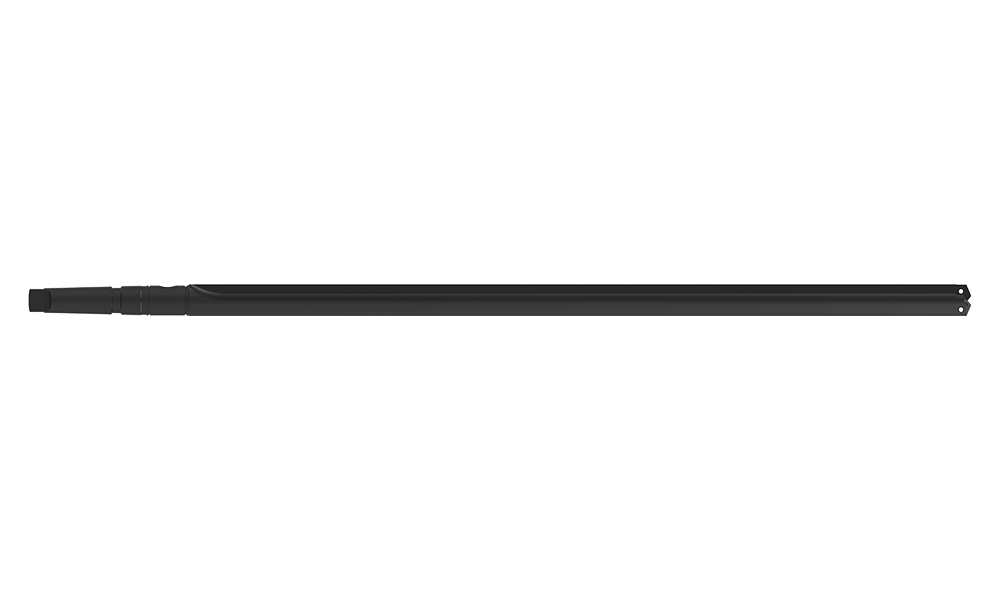

T-A® Replaceable Drill Body: 1.3530" - 1.8829", 3XL, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 3
Minimum diameter inch 1.3530
Maximum diameter inch 1.8829
Length Type 3XL
Flute Type Straight
Overall length inch 38.812
Tool Reference Length inch 34.374
Body length inch 32.250
Drill depth inch 30.641
Shank type Morse Taper
Shank diameter inch #4 MT
Pipe tap side inch 1/4 NPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 10.77
Weight in kg (each) 4.89
Category Stocked
