290Y0S-20FM
T-A® Replaceable Drill Body: 9.50 mm - 11.09 mm, 3XL, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information

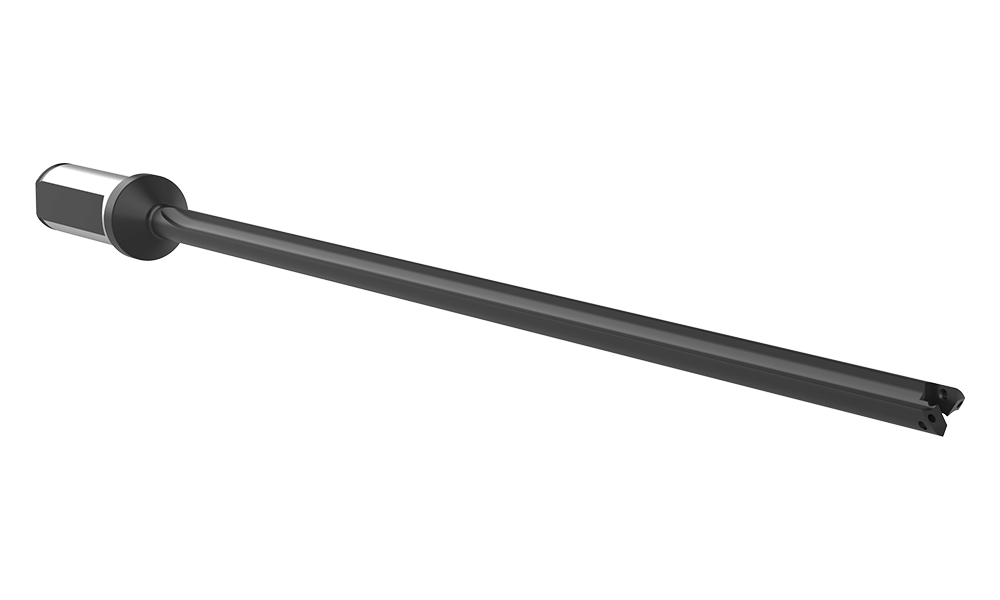

Default Image
Angle
Front
Side
Product Specifications
Series Y
Minimum diameter mm 9.50
Maximum diameter mm 11.09
Length Type 3XL
Flute Type Straight
Overall length mm 369.9
Tool Reference Length mm 322.1
Body length mm 319.9
Drill depth mm 287.6
Shank type Flanged
Shank diameter mm 20
Shank length mm 50.0
Pipe tap rear inch 1/8
Pipe tap rear mm 1/8 BSPT
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 724-IP7-1 (Qty0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.58
Weight in kg (each) 0.26
Category Stocked
