397663WHC19

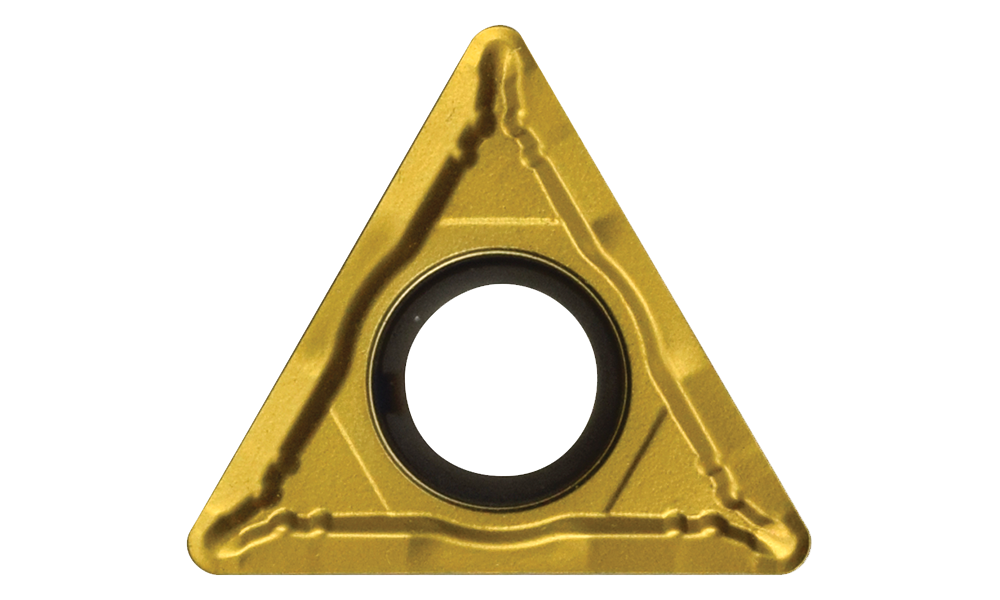

Wohlhaupter® Turning Boring Insert: Form 161, WHC19 Coated Carbide
Wohlhaupter® Insert

Add to cart image Add to list image







Default Image
Main
Product Specifications
Legacy Item Number F161 04MN192 WHC19
Insert Form 161
Corner Radius (inch) 0.016
Corner Radius (mm) 0.40
Tolerance Group M
Machining Direction CW or CCW
Geometry 192
Grade WHC19
Material Carbide
Coating Coated
Wiper Geometry No
Number of Useable Edges 3
Insert ANSI Designation TCMT732
Insert ISO Designation TCMT110202
Machining Conditions Discontinuous Cut
Finishing Primary P | M | S
Finishing Secondary K
Type of Product Indexable Insert
Product Application Boring
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0.011
Weight in kg (each) 0
Category Stocked
