4T-030203C-H
4TEX® Indexable Drill Insert: 0.472" - 0.531", Low Rake Geometry, AM480
4TEX® Insert

Add to cart image Add to list image







See Additional Technical Information

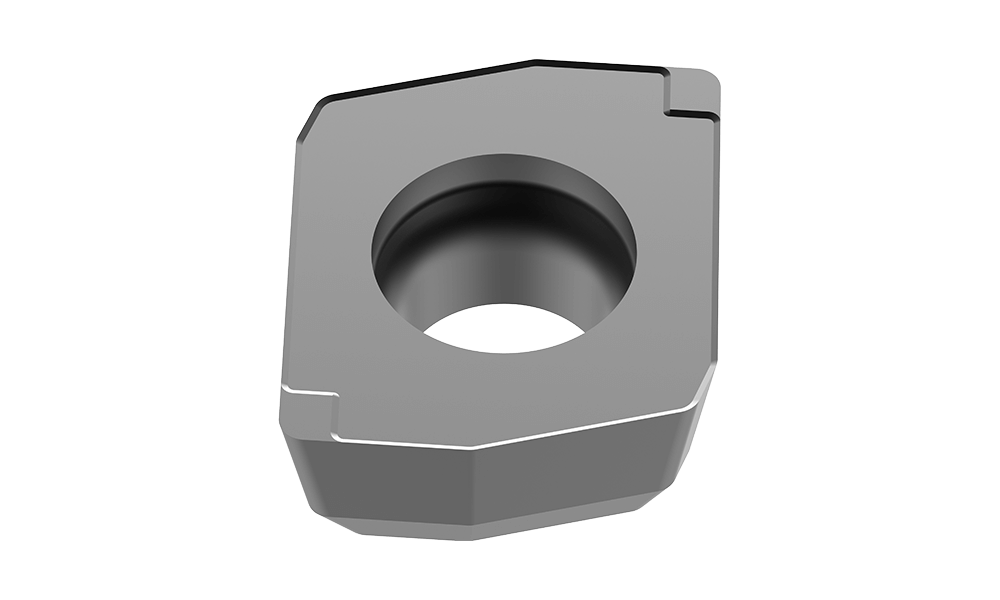

Default Image
Angle

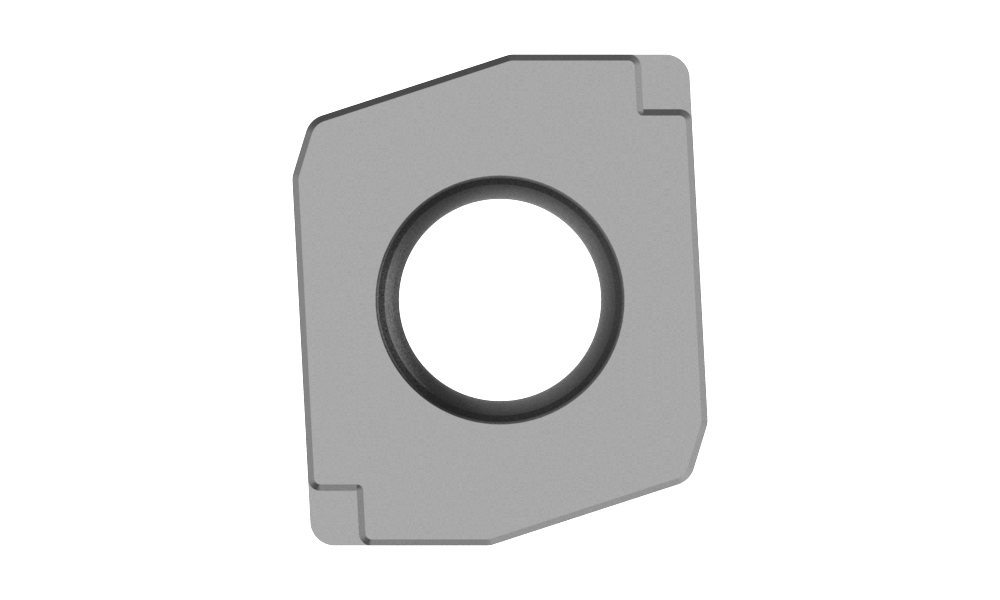

Front
Product Specifications
Type of Product Indexable Drill Insert
Series 03
Insert Shape Proprietary
Cutting direction Right Hand
Style Center
Geometry Low Rake
Grade P30
Coating AM480
Application Type Tool Steel
Material Carbide
Insert thickness inch 0.091
Insert thickness mm 2.3
Screw Hole Diameter inch 0.094
Screw Hole Diameter mm 2.4
Corner radius inch 0.012
Corner radius mm 0.3
Back Clearance 7°
Minimum diameter inch 0.472
Maximum diameter inch 0.531
Ordering Information
Package Qty 10
Min. Order Qty 10
Weight in lbs (each) 0.001
Weight in kg (each) 0
Category Stocked
