502075
Wohlhaupter® Indexable Boring Bar: 0.433" (11 mm) Min Ø, 1.063" (27 mm) Max depth, Form 101, 17 mm Shank, Steel
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

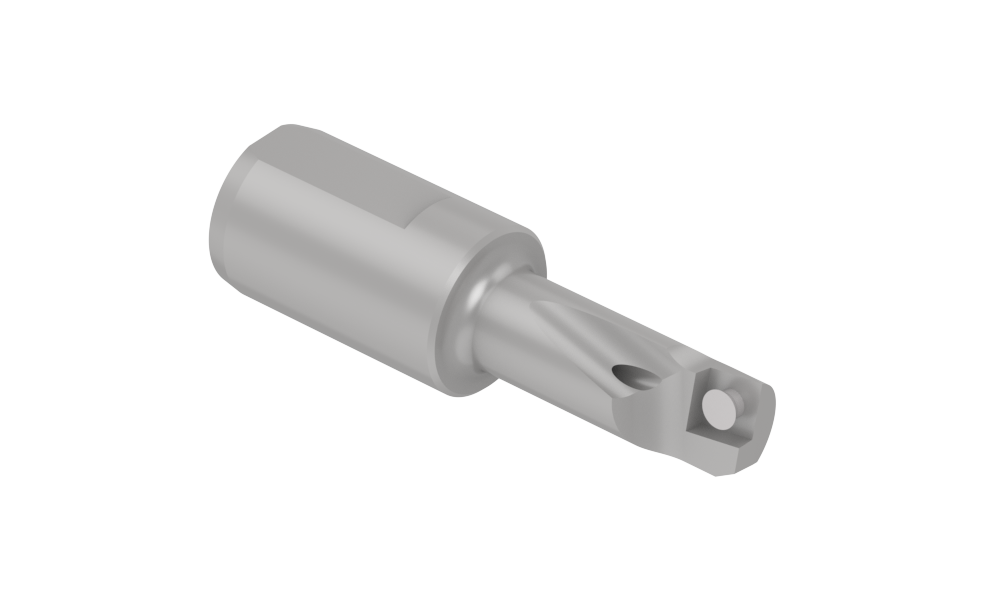

Angle

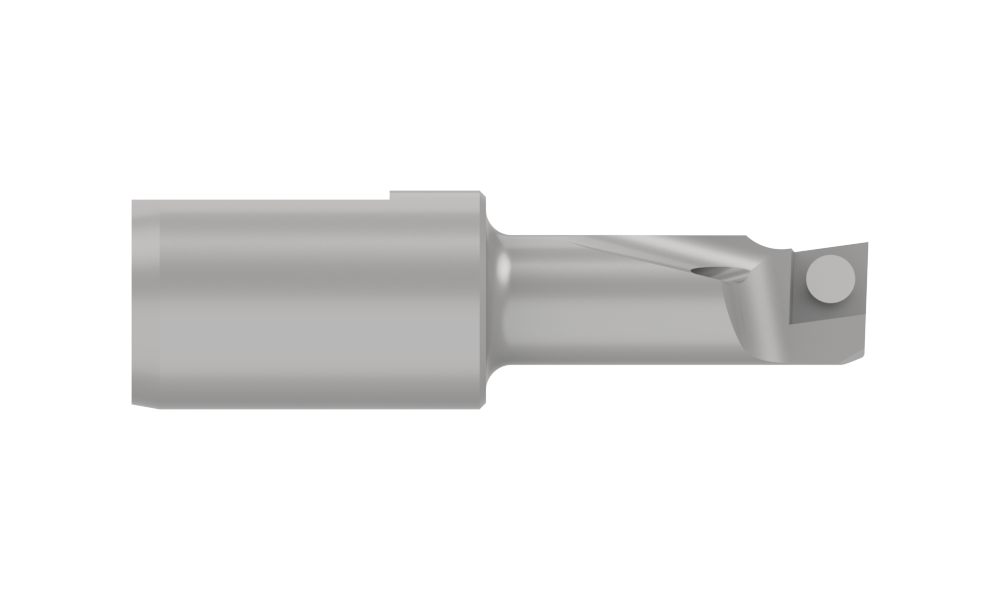

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Steel
Form Type Form 101
IC Size mm 6.35
IC Size inch 0.25
Insert thickness mm 2.38
Insert thickness inch 0.094
Max bore depth mm 27
Max bore depth inch 1.063
Minimum diameter mm 11
Minimum diameter inch 0.433
Number of Flats 1
Overall length mm 57.5
Overall length inch 2.264
Shank diameter mm 17
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.132
Weight in kg (each) 0.06
Category Stocked
