502079
Wohlhaupter® Indexable Boring Bar: 0.748" (19 mm) Min Ø, 2.559" (65 mm) Max depth, Form 101, 17 mm Shank, Steel
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

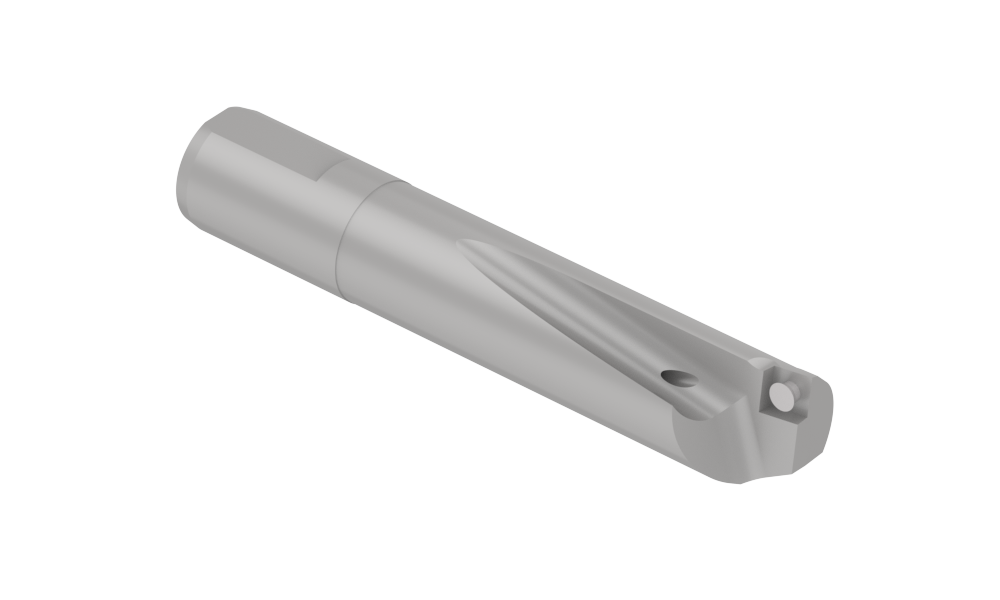

Angle

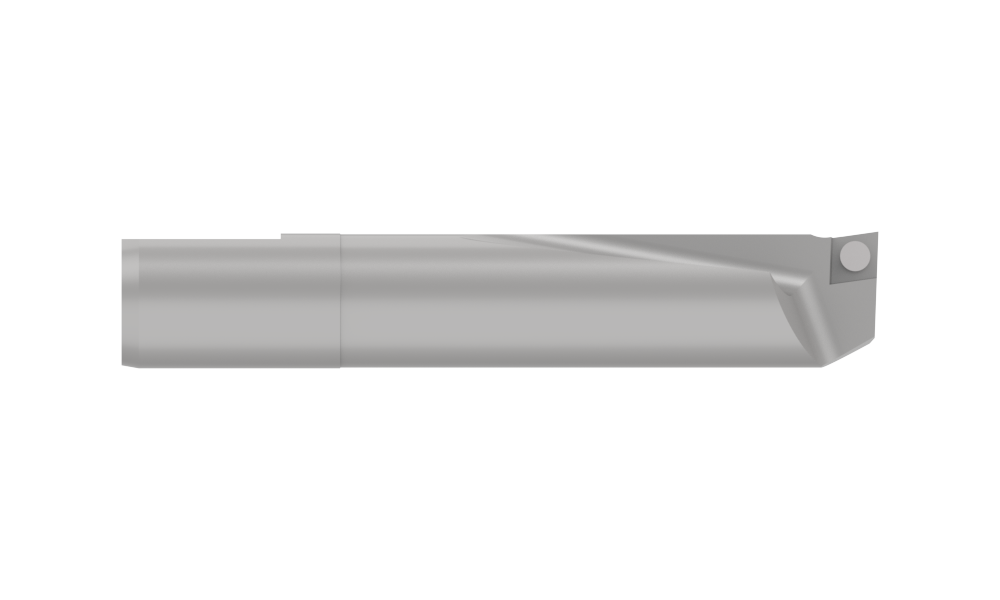

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Steel
Form Type Form 101
IC Size mm 6.35
IC Size inch 0.25
Insert thickness mm 2.38
Insert thickness inch 0.094
Max bore depth mm 65
Max bore depth inch 2.559
Minimum diameter mm 19
Minimum diameter inch 0.748
Number of Flats 1
Overall length mm 95.5
Overall length inch 3.76
Shank diameter mm 17
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.331
Weight in kg (each) 0.15
Category Stocked
