502094
Wohlhaupter® Indexable Boring Bar: 0.472" (12 mm) Min Ø, 2.441" (62 mm) Max depth, Form 101, 17 mm Shank, Carbide
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

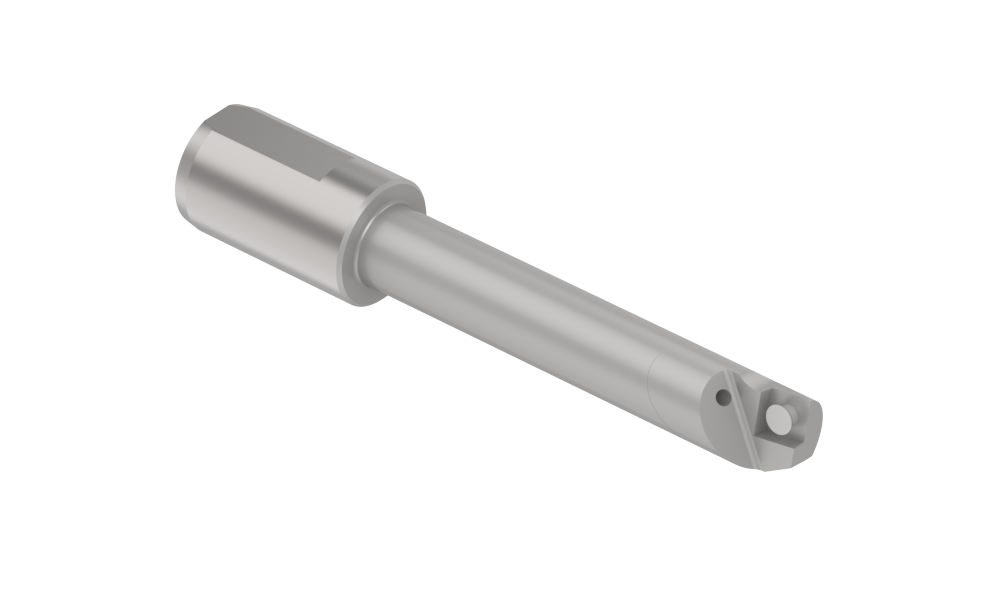

Angle

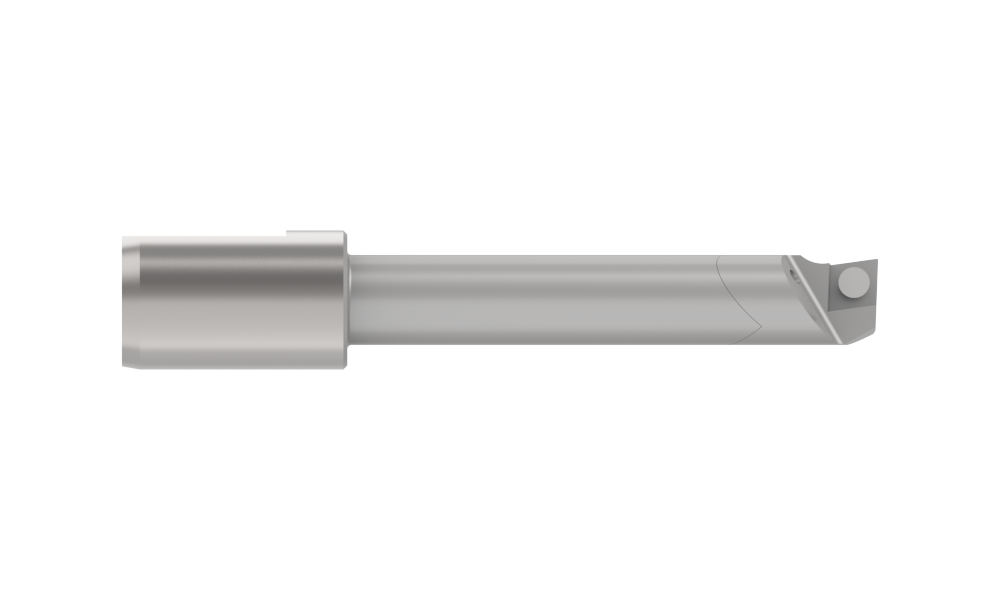

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Carbide
Form Type Form 101
IC Size mm 6.35
IC Size inch 0.25
Insert thickness mm 2.38
Insert thickness inch 0.094
Max bore depth mm 62
Max bore depth inch 2.441
Minimum diameter mm 12
Minimum diameter inch 0.472
Number of Flats 1
Overall length mm 92.5
Overall length inch 3.642
Shank diameter mm 17
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.375
Weight in kg (each) 0.17
Category Stocked
