514034
Wohlhaupter® Indexable Boring Bar: 0.236" (6 mm) Min Ø, 2.559" (65 mm) Max depth, Form 211, 5 mm Shank, Carbide
Wohlhaupter® Boring Bar

Add to cart image Add to list image







Default Image

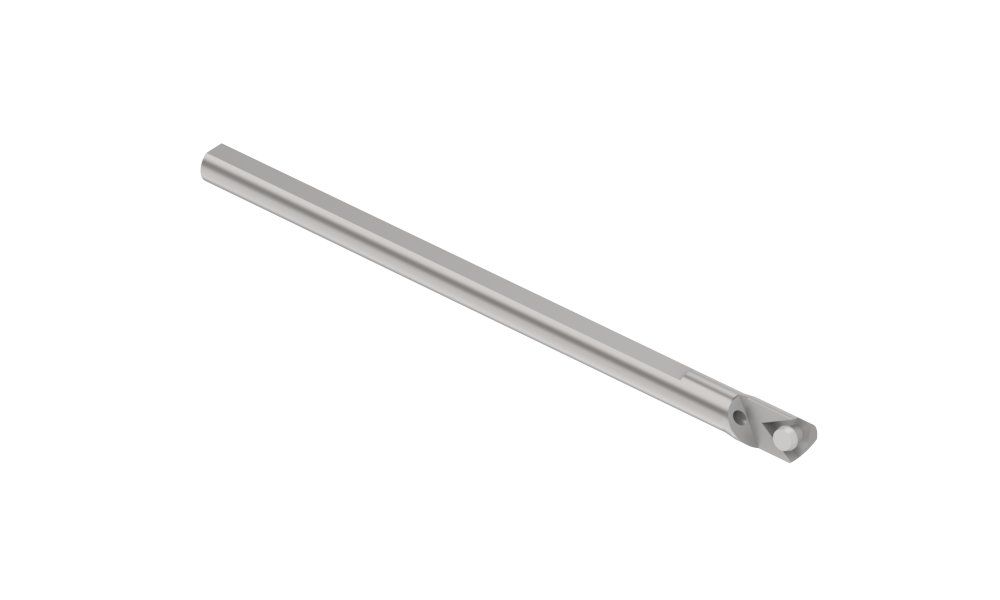

Angle

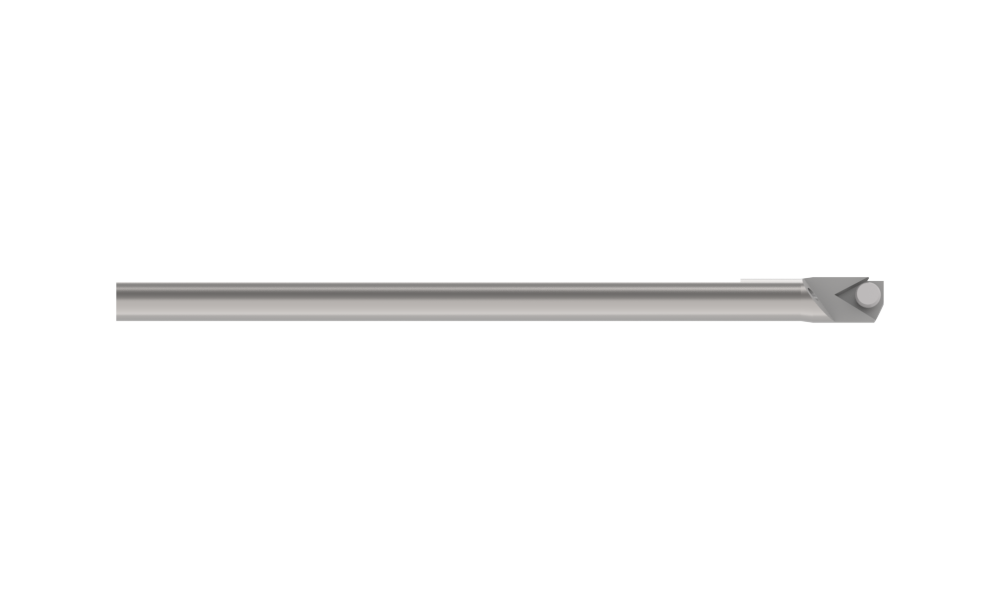

Side
Product Specifications
Type of Product Indexable Boring Bar
Material Carbide
Form Type Form 211
IC Size mm 3.97
IC Size inch 0.156
Insert thickness mm 1.59
Insert thickness inch 0.063
Max bore depth mm 65
Max bore depth inch 2.559
Minimum diameter mm 6
Minimum diameter inch 0.236
Number of Flats 1
Overall length mm 90
Overall length inch 3.543
Shank diameter mm 5
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.11
Weight in kg (each) 0.05
Category Stocked
