60111C45-063F
GEN3SYS® Replaceable Drill Body: 0.4329" - 0.4722", Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

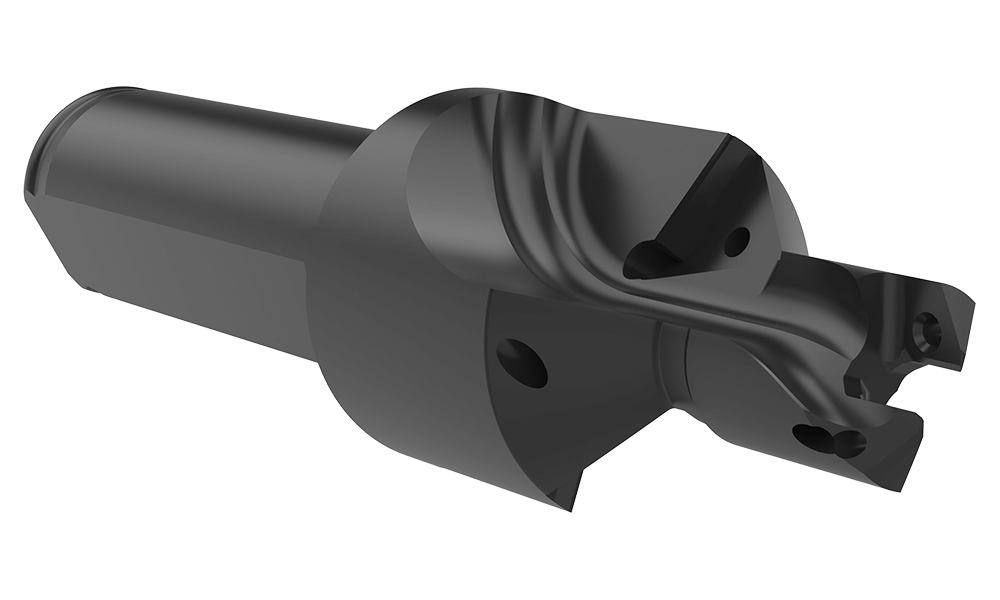

Default Image
Angle

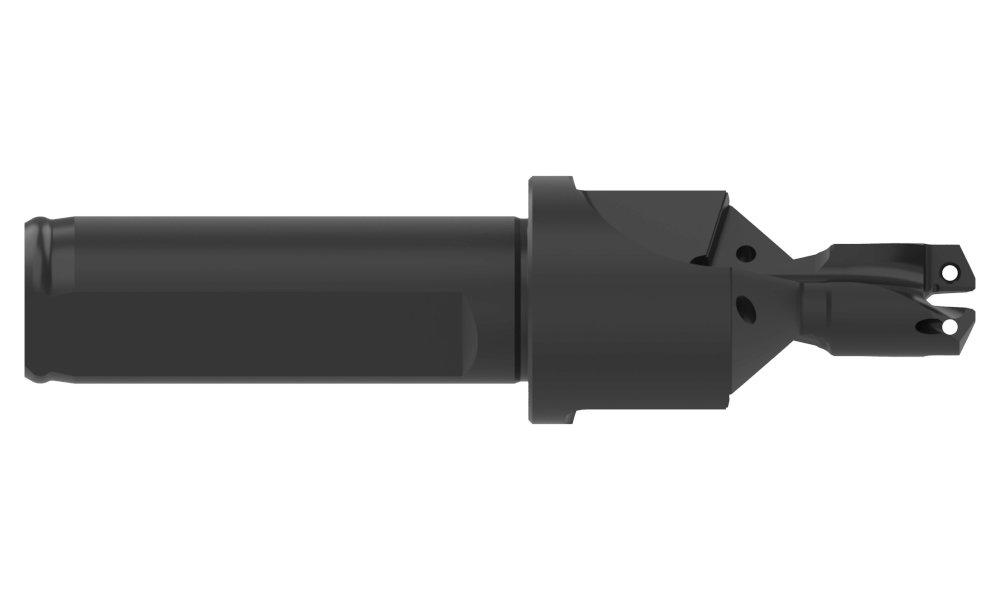

Front

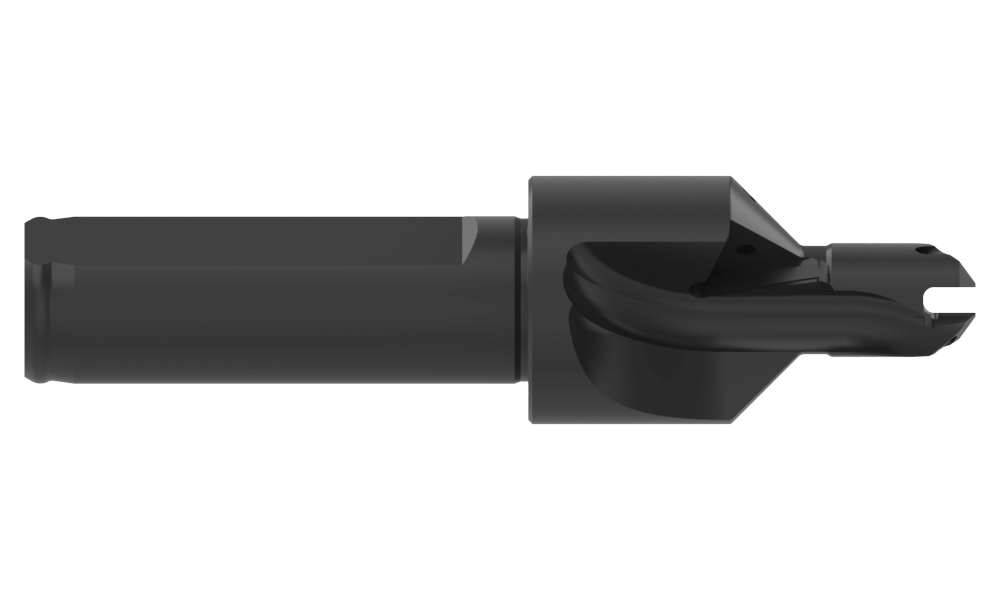

Top
Product Specifications
Series 11
Minimum diameter inch 0.4329
Maximum diameter inch 0.4722
Step Diameter inch 0.9500
Length Type Drill & Chamfer
Flute Type Straight
Overall length inch 3.621
Tool Reference Length inch 1.746
Body length inch 1.666
Step Length inch 0.650
Drill depth inch 0.554
Shank type Flanged
Shank diameter inch 5/8
Shank length inch 1.875
Pipe tap rear inch 1/16 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 71843-IP6-1 (Qty0)
Replacement GEN3SYS® Screw
#11 KIT (1) TORX PLUS, M1,8 X
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-6 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-6
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.27
Weight in kg (each) 0.12
Category Stocked
