60111C45-16FM
GEN3SYS® Replaceable Drill Body: (11.00 mm - 11.99 mm), Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

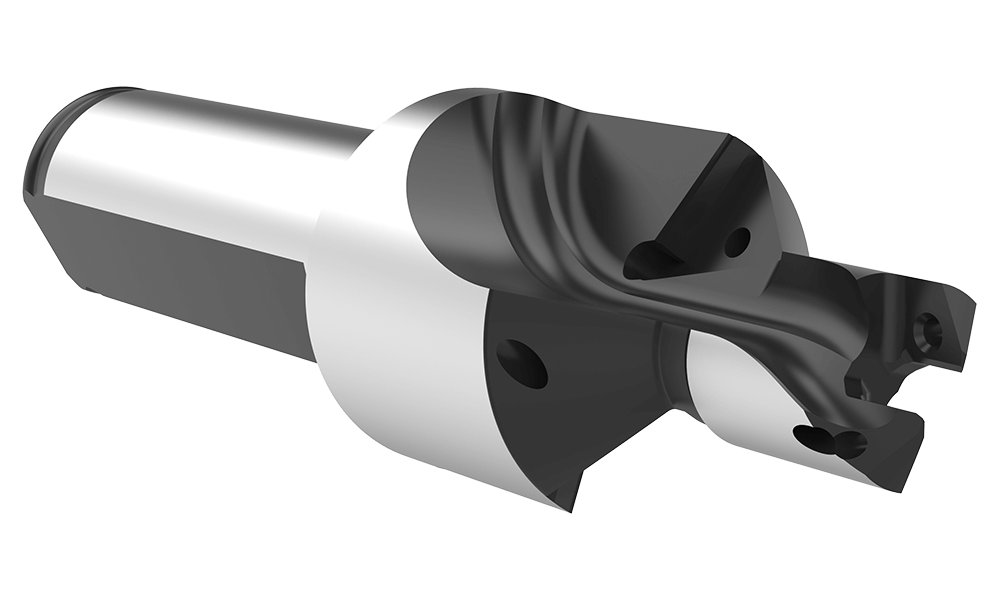

Default Image
Angle

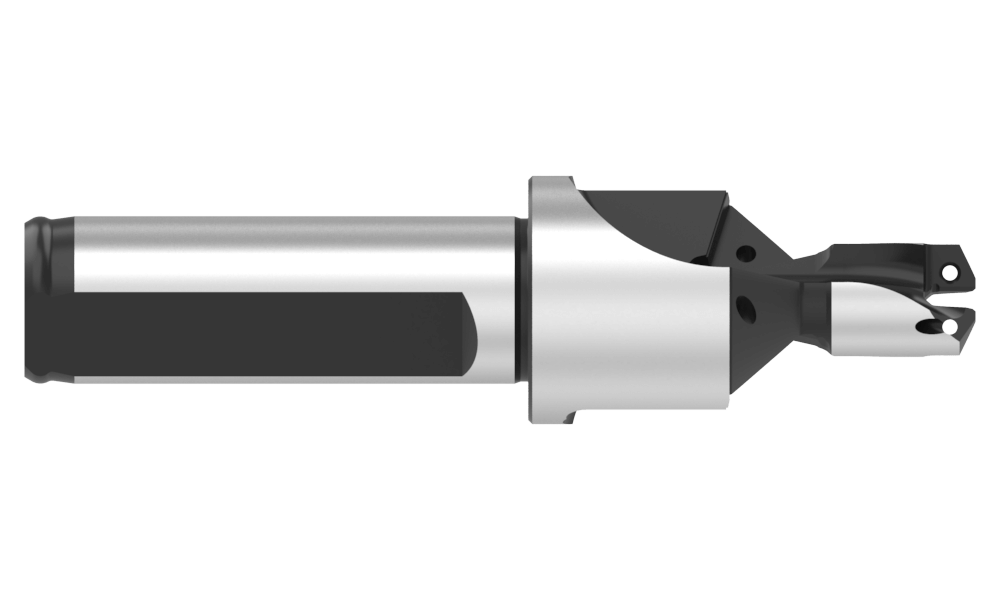

Front

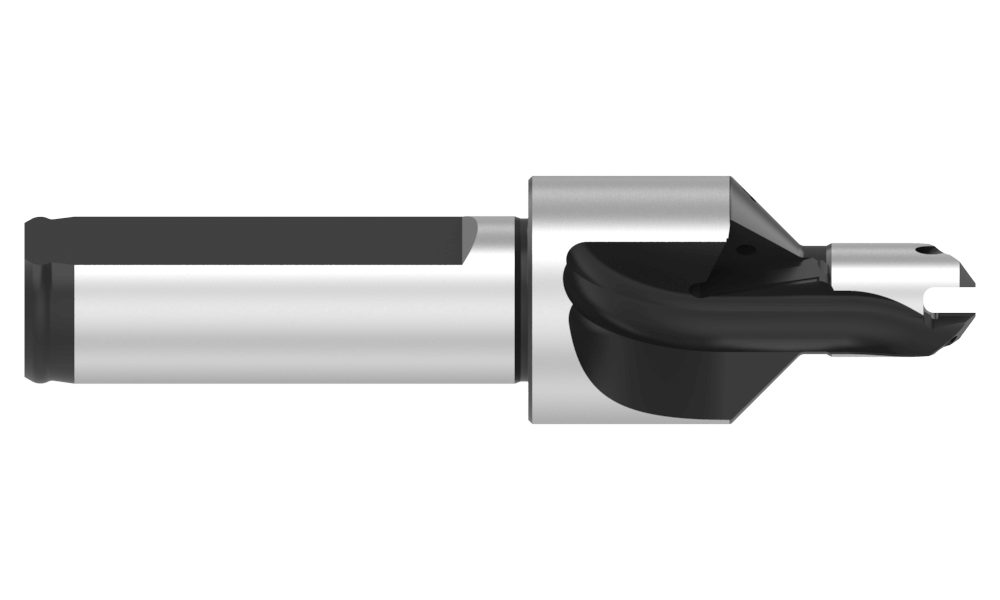

Top
Product Specifications
Series 11
Minimum diameter mm 11.00
Maximum diameter mm 11.99
Step Diameter mm 24.13
Length Type Drill & Chamfer
Flute Type Straight
Overall length mm 92.4
Tool Reference Length mm 44.3
Body length mm 42.3
Step Length mm 16.5
Drill depth mm 14.1
Shank type Flanged
Shank diameter mm 16
Shank length mm 48.0
Pipe tap rear mm 1/16 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 71843-IP6-1 (Qty0)
Replacement GEN3SYS® Screw
#11 KIT (1) TORX PLUS, M1,8 X
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-6 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-6
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.28
Weight in kg (each) 0.13
Category Stocked
