60126C45-125F
GEN3SYS® Replaceable Drill Body: 1.0235" - 1.1415", Drill & Chamfer, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

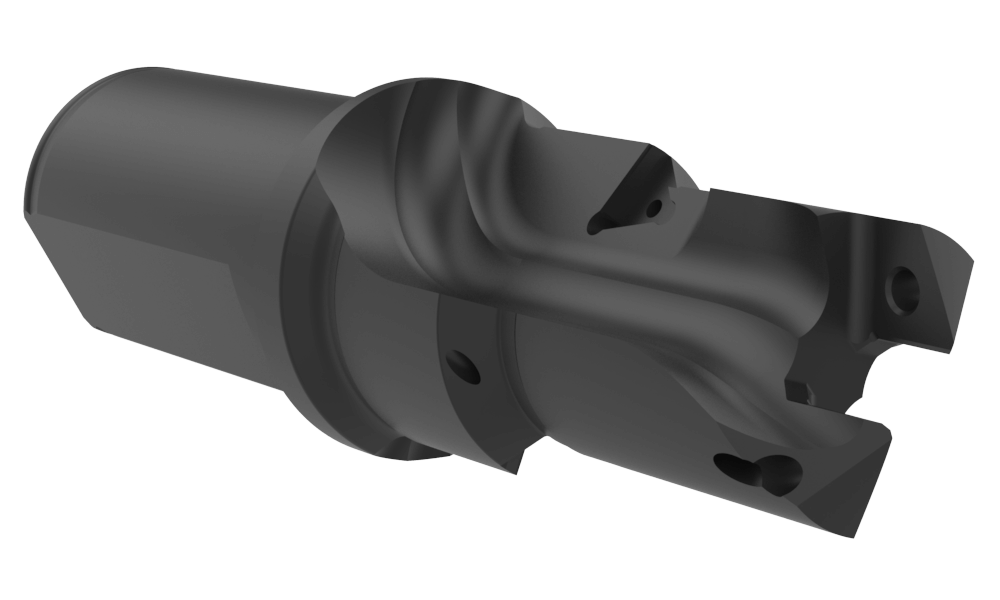

Default Image
Angle

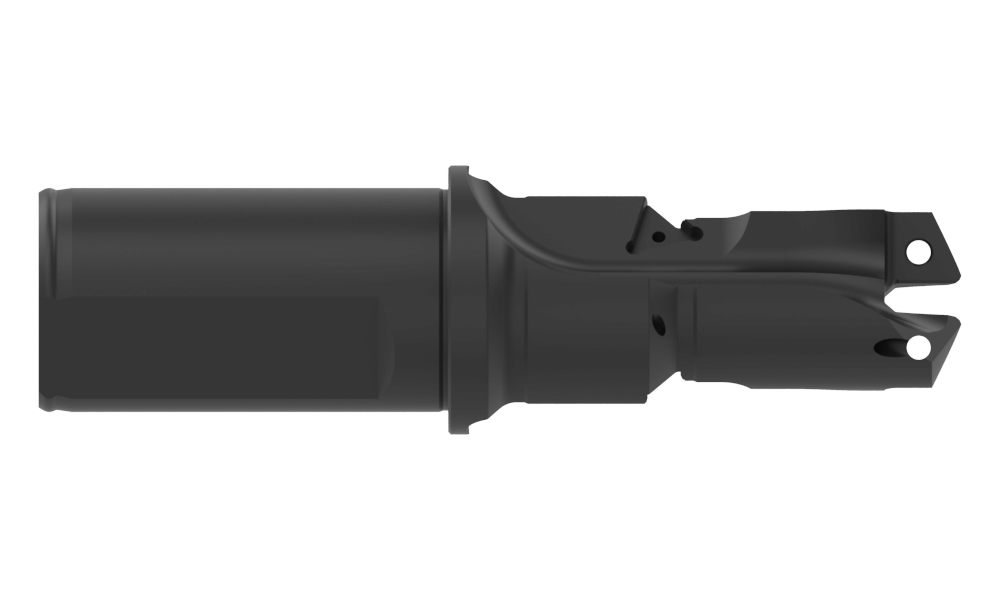

Front

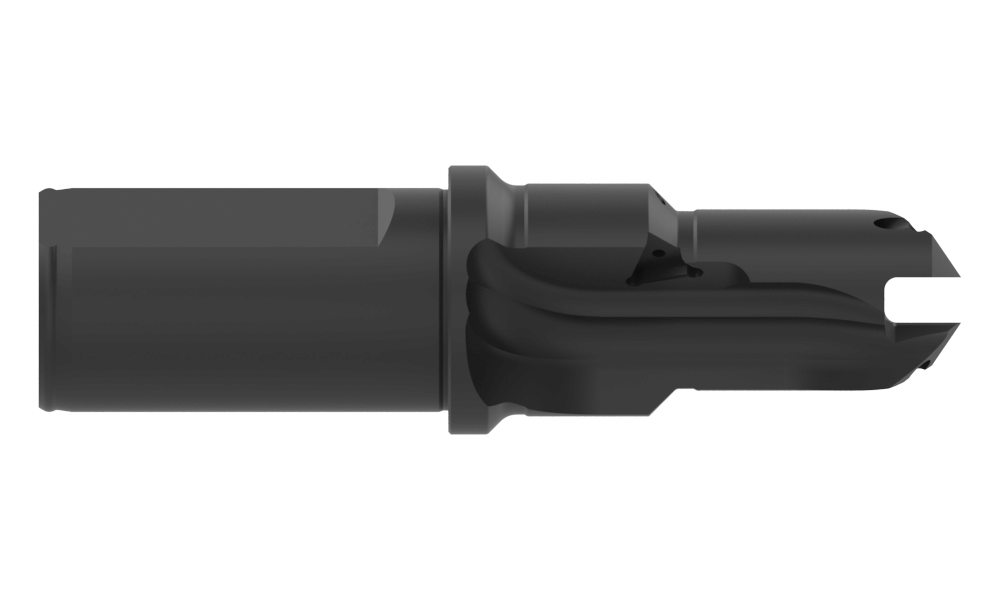

Top
Product Specifications
Series 26
Minimum diameter inch 1.0235
Maximum diameter inch 1.1415
Step Diameter inch 1.3400
Length Type Drill & Chamfer
Flute Type Straight
Overall length inch 5.272
Tool Reference Length inch 2.992
Body length inch 2.872
Step Length inch 1.535
Drill depth inch 1.403
Shank type Flanged
Shank diameter inch 1-1/4
Shank length inch 2.280
Pipe tap rear inch 1/4 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.28
Weight in kg (each) 0.58
Category Stocked
