60512H-20CM
GEN3SYS® Replaceable Drill Body: (12.00 mm - 12.99 mm), 5xD, Cylindrical Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

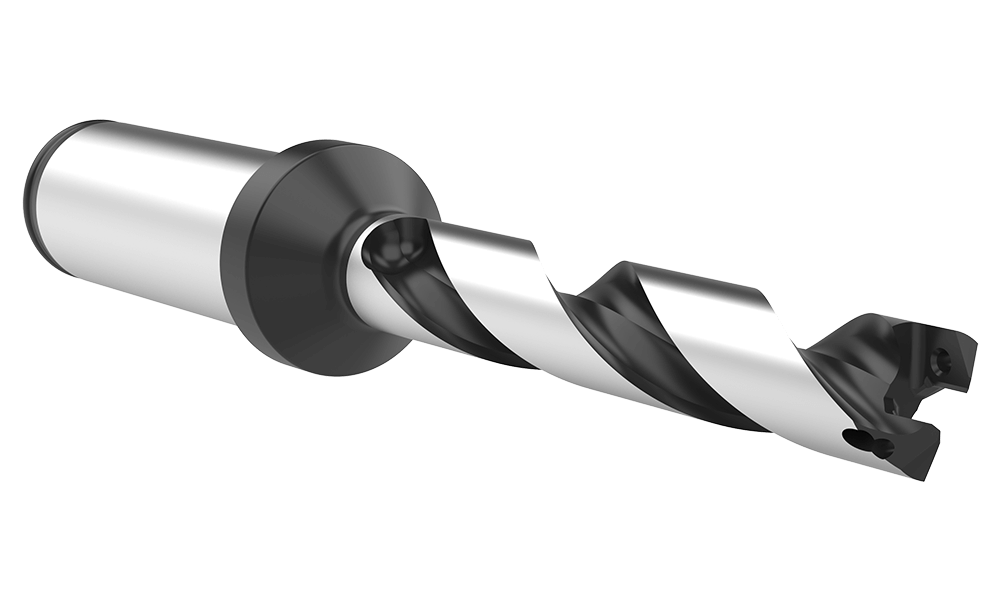

Default Image
Angle

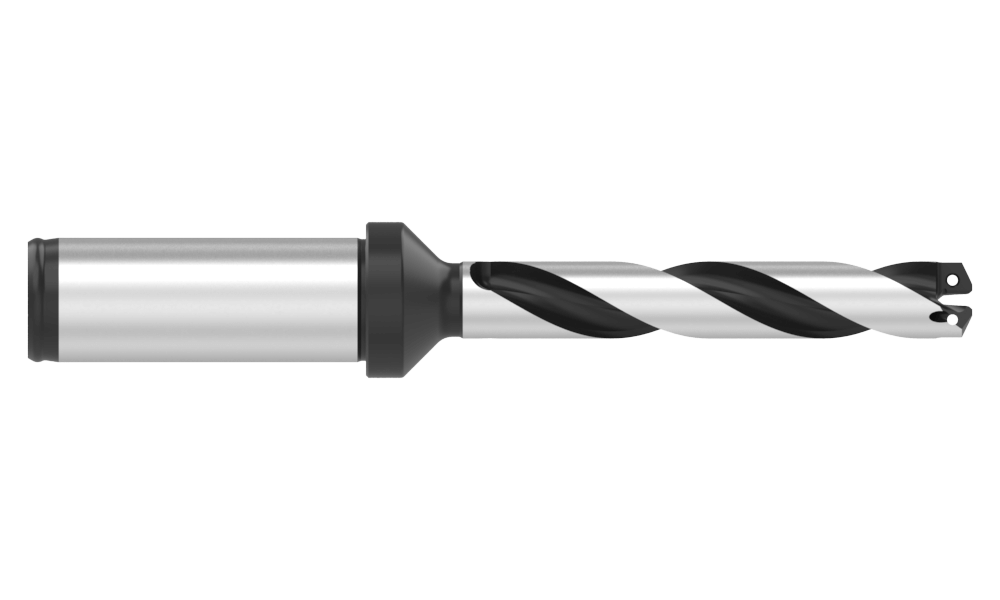

Front

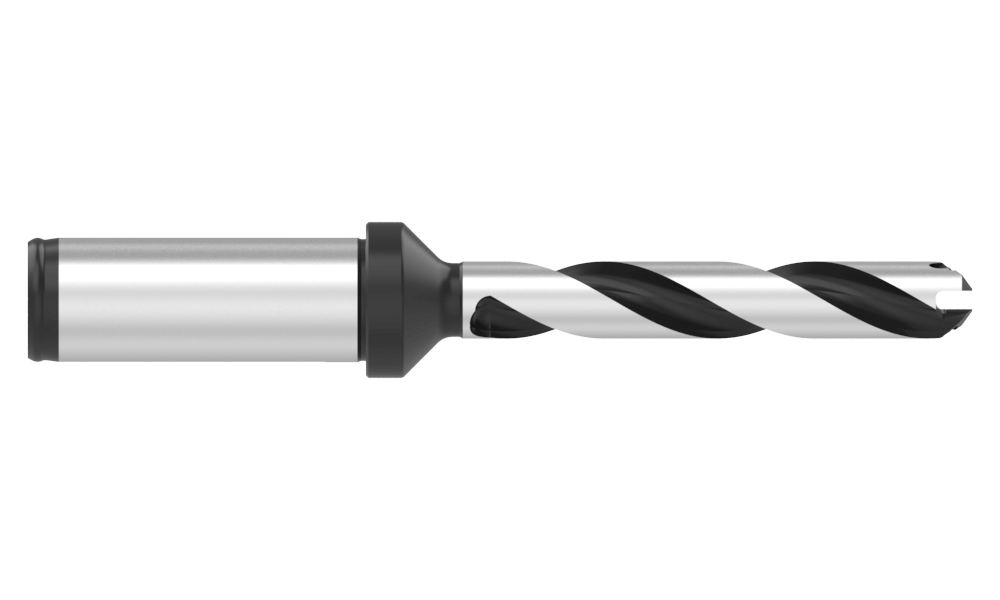

Top
Product Specifications
Series 12
Minimum diameter mm 12.00
Maximum diameter mm 12.99
Length Type 5xD
Flute Type Helical
Overall length mm 144.8
Tool Reference Length mm 94.8
Body length mm 92.6
Drill depth mm 65.0
Shank type Cylindrical
Shank diameter mm 20
Shank length mm 50.0
Pipe tap rear mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.43
Weight in kg (each) 0.2
Category Stocked
