60713H-075F
GEN3SYS® Replaceable Drill Body: 0.5117" - 0.5509", 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

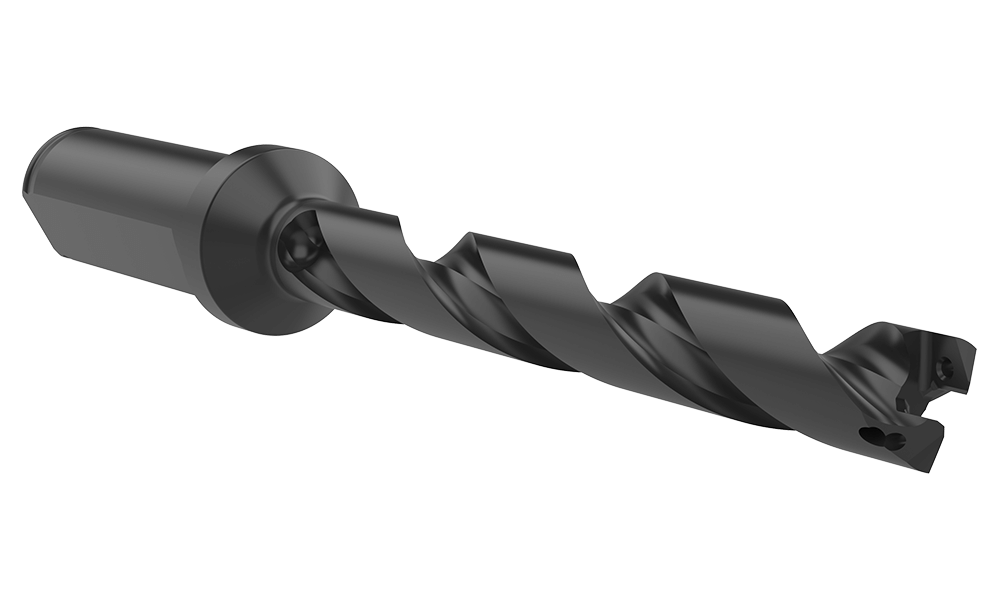

Default Image
Angle

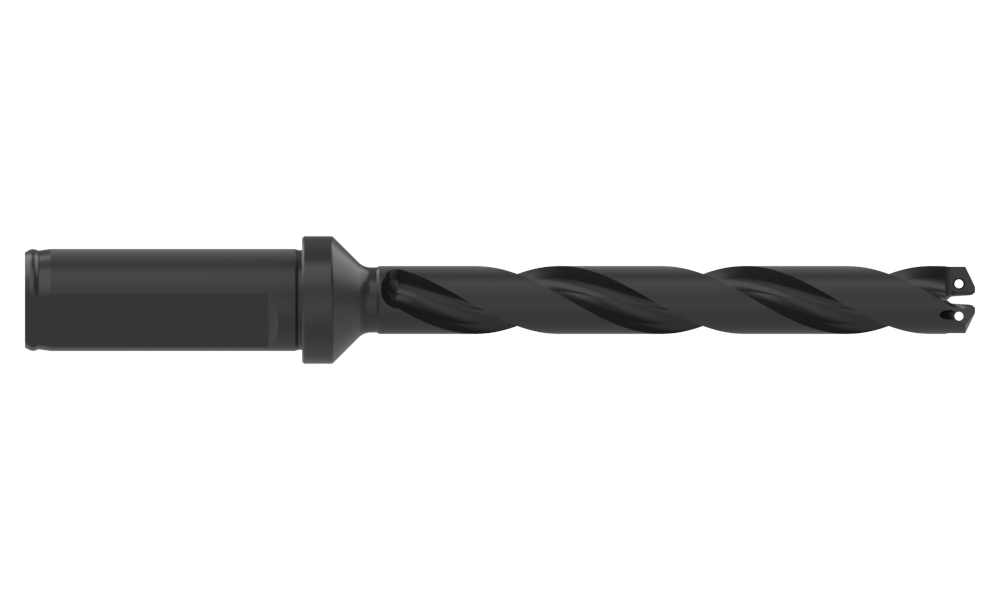

Front

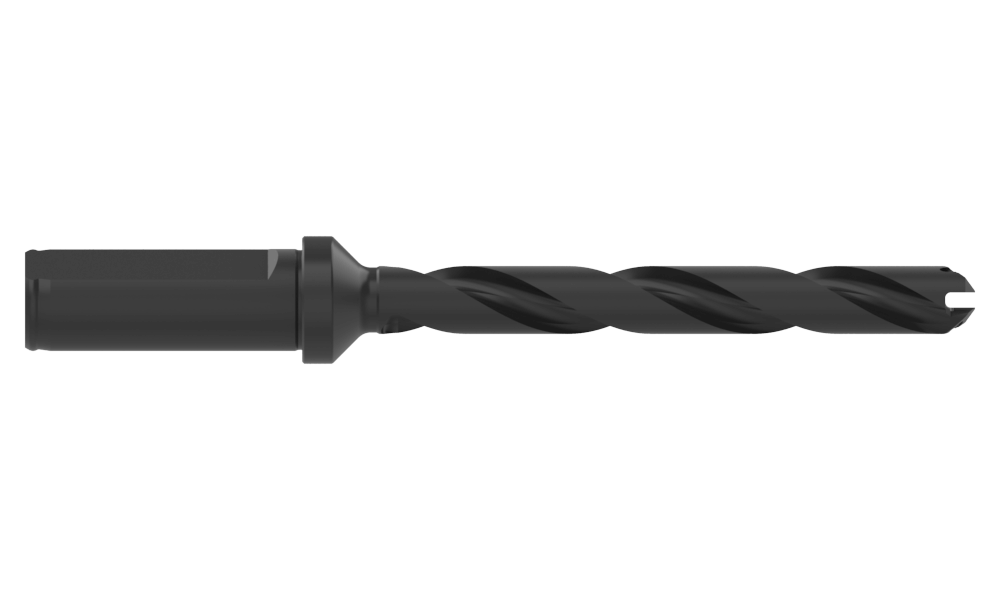

Top
Product Specifications
Series 13
Minimum diameter inch 0.5117
Maximum diameter inch 0.5509
Length Type 7xD
Flute Type Helical
Overall length inch 7.046
Tool Reference Length inch 5.016
Body length inch 4.929
Drill depth inch 3.857
Shank type Flanged
Shank diameter inch 3/4
Shank length inch 2.030
Pipe tap rear inch 1/8 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.46
Weight in kg (each) 0.21
Category Stocked
