60718S-100F
GEN3SYS® Replaceable Drill Body: 0.7085" - 0.7872", 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

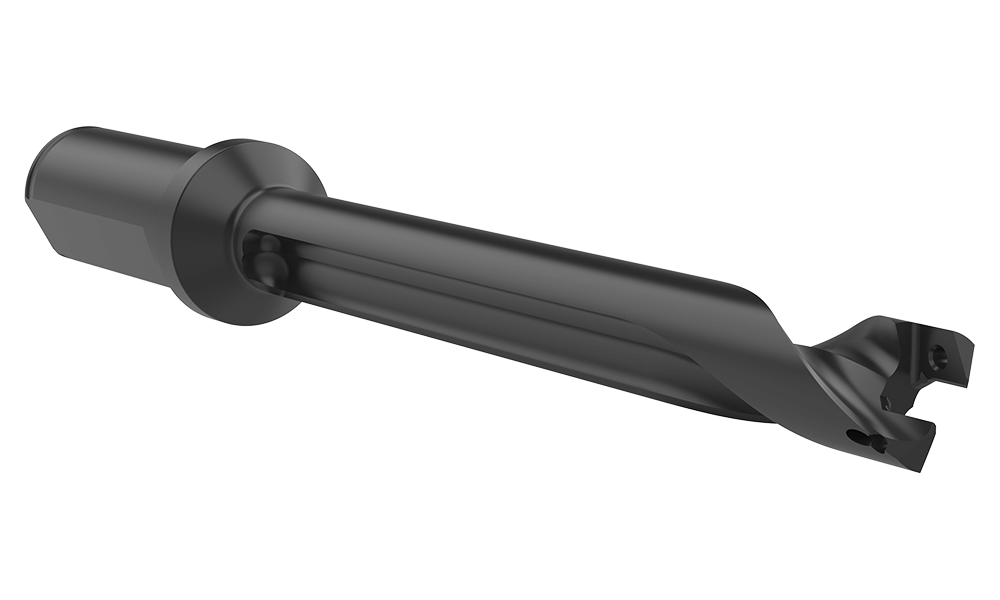

Default Image
Angle

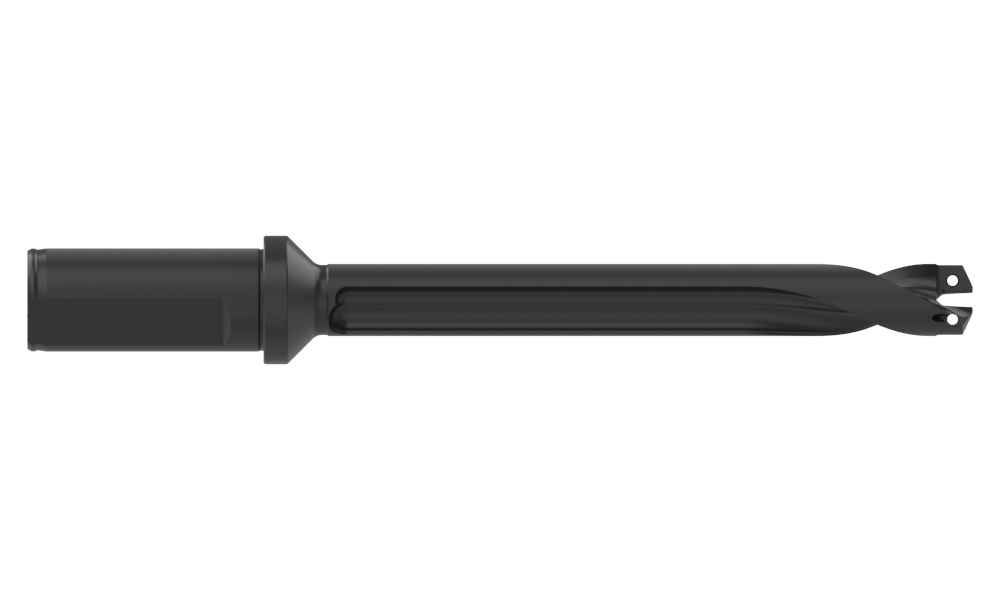

Front

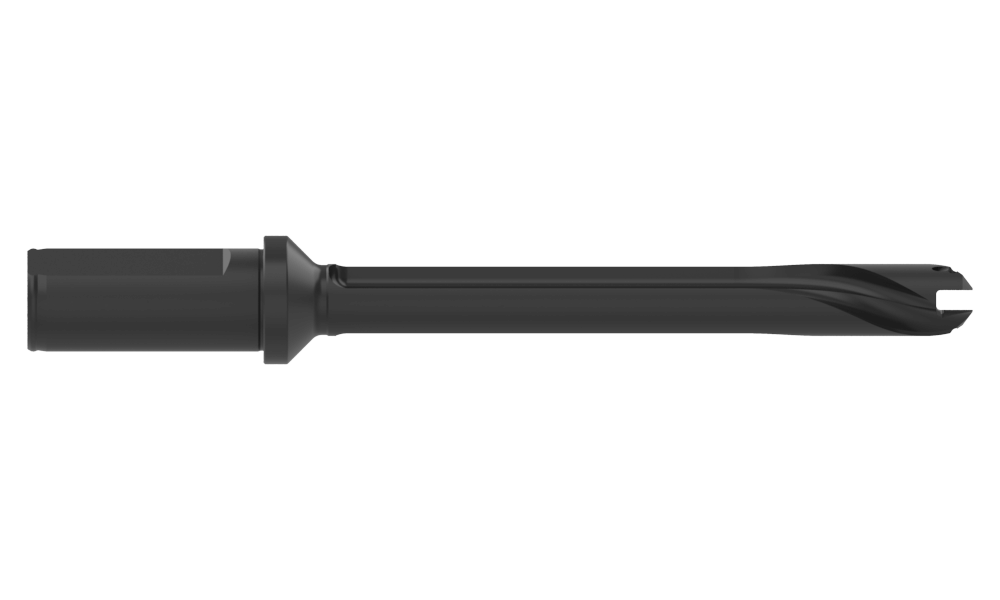

Top
Product Specifications
Series 18
Minimum Diameter (inch) 0.7085
Maximum Diameter (inch) 0.7872
Length Type 7xD
Flute Type Straight
Overall Length (inch) 9.239
Tool Reference Length (inch) 6.959
Body Length (inch) 6.849
Drill Depth (inch) 5.508
Shank Type Flanged
Shank Diameter (inch) 1
Shank Length (inch) 2.280
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.03
Weight in kg (each) 0.47
Category Stocked
