60718S-25FM
GEN3SYS® Replaceable Drill Body: (18.00 mm - 19.99 mm), 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

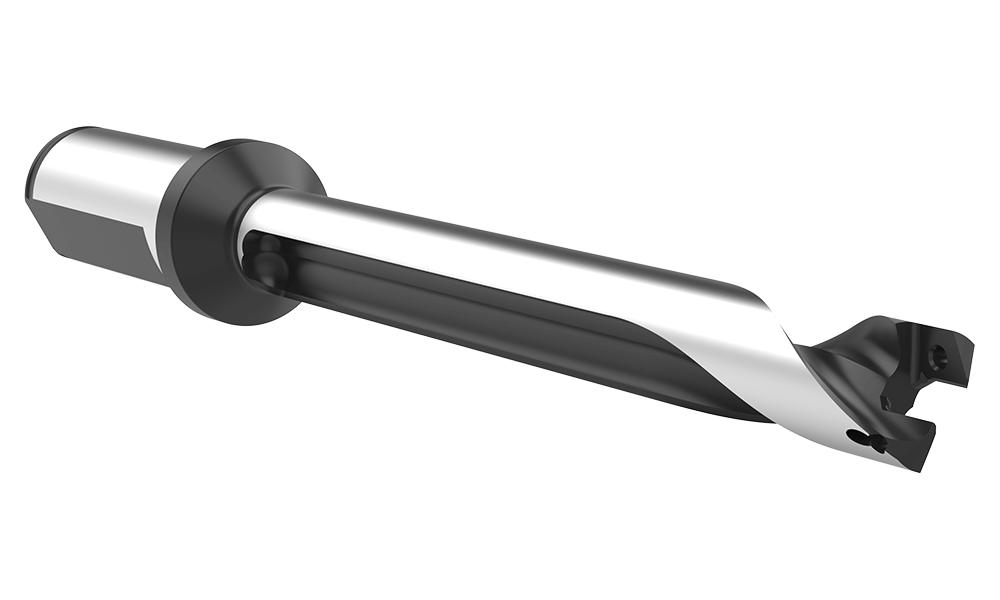

Default Image
Angle

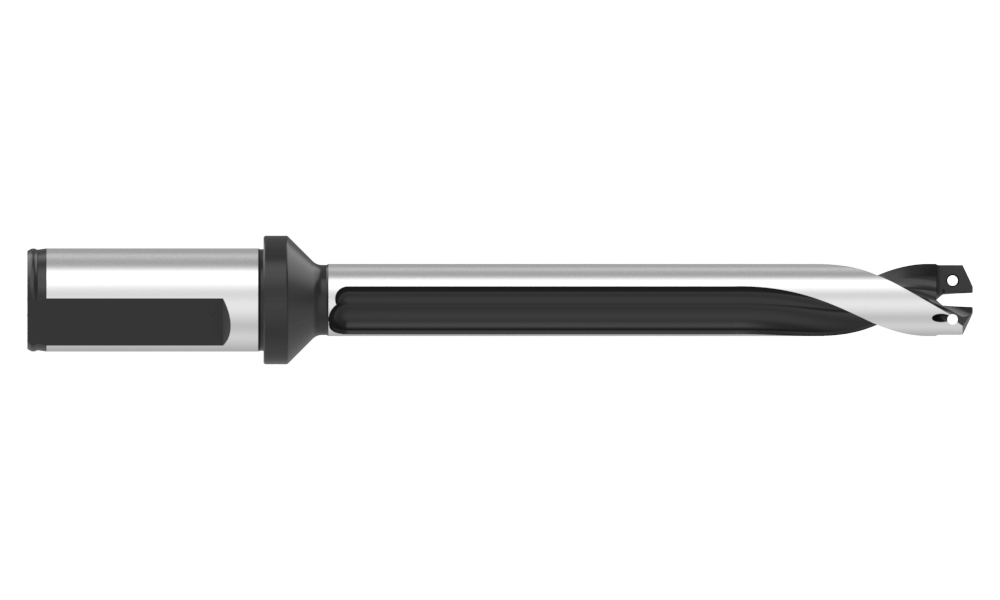

Front

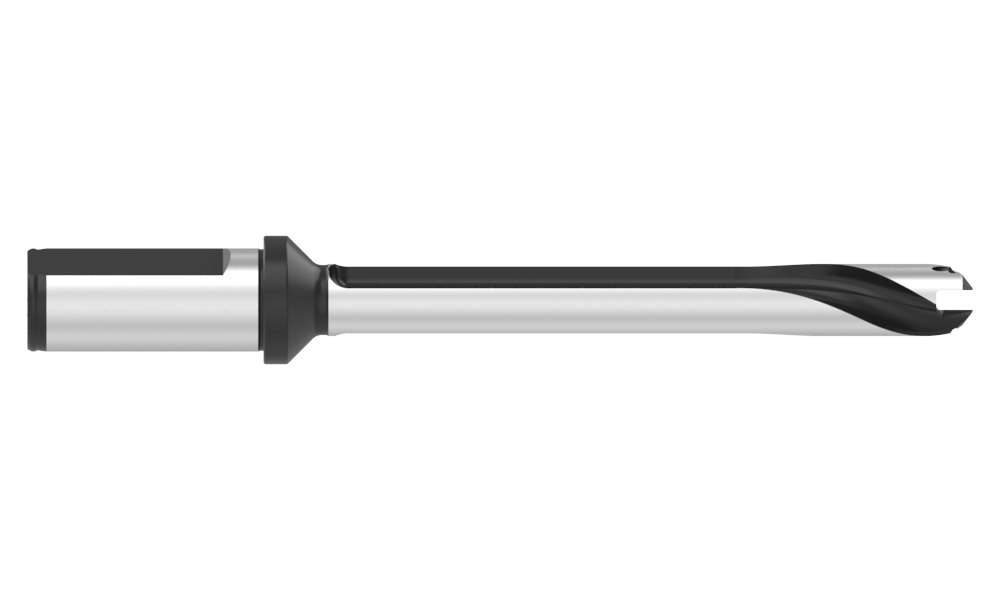

Top
Product Specifications
Series 18
Minimum diameter mm 18.00
Maximum diameter mm 19.99
Length Type 7xD
Flute Type Straight
Overall length mm 232.8
Tool Reference Length mm 176.8
Body length mm 174.0
Drill depth mm 139.9
Shank type Flanged
Shank diameter mm 25
Shank length mm 56.0
Pipe tap rear mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1
Weight in kg (each) 0.45
Category Stocked
