60720H-100F
GEN3SYS® Replaceable Drill Body: 0.7873" - 0.8659", 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

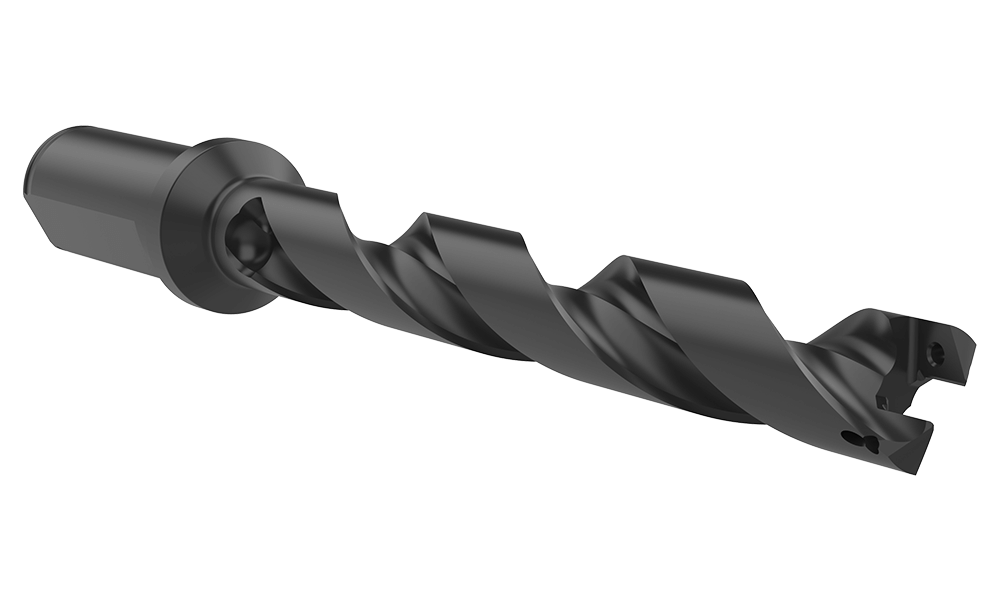

Default Image
Angle

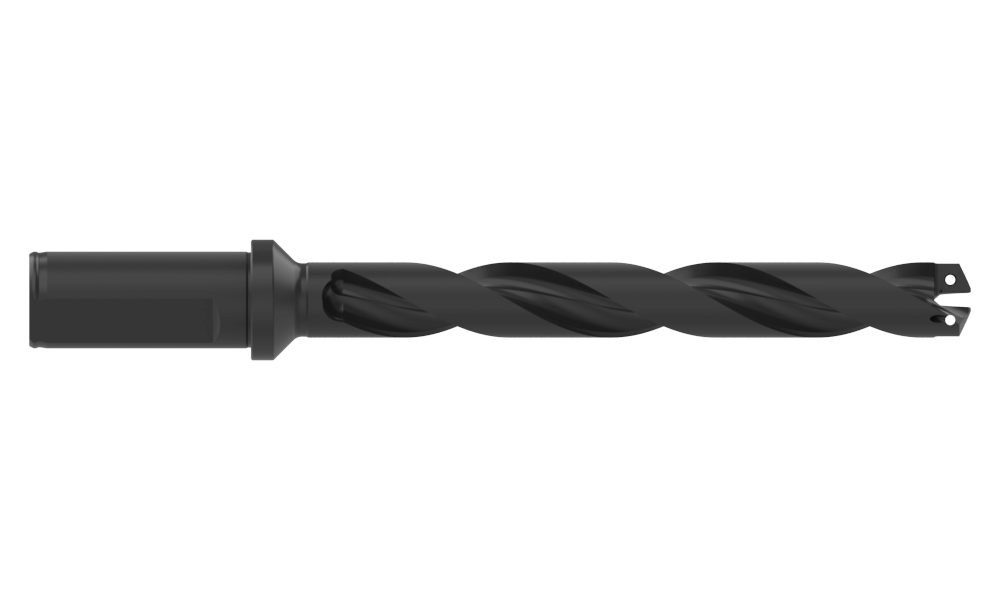

Front

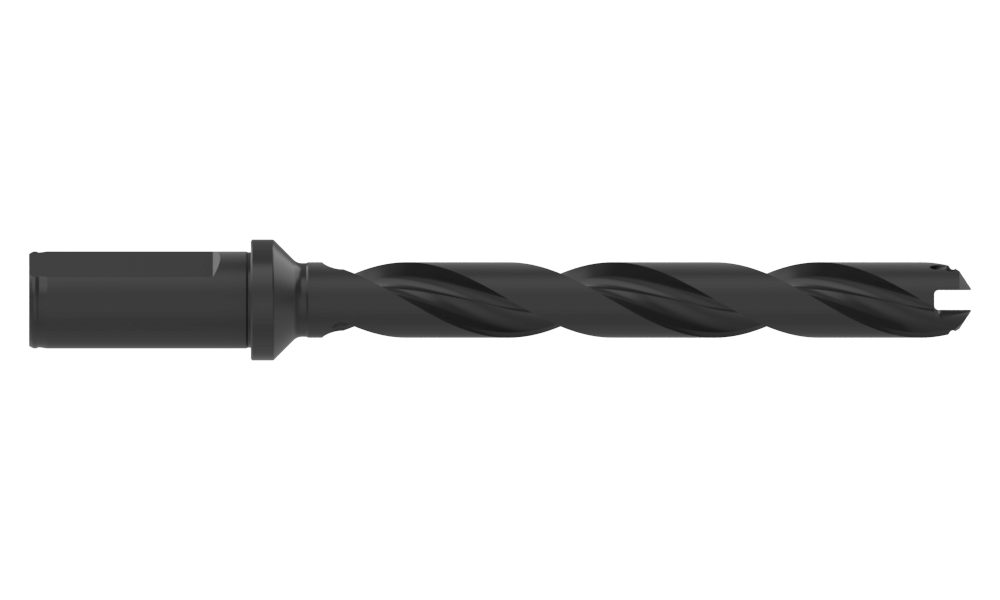

Top
Product Specifications
Series 20
Minimum diameter inch 0.7873
Maximum diameter inch 0.8659
Length Type 7xD
Flute Type Helical
Overall length inch 9.794
Tool Reference Length inch 7.514
Body length inch 7.404
Drill depth inch 6.058
Shank type Flanged
Shank diameter inch 1
Shank length inch 2.280
Pipe tap rear inch 1/8 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.18
Weight in kg (each) 0.54
Category Stocked
