60729S-32FM
GEN3SYS® Replaceable Drill Body: (29.00 mm - 31.99 mm), 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

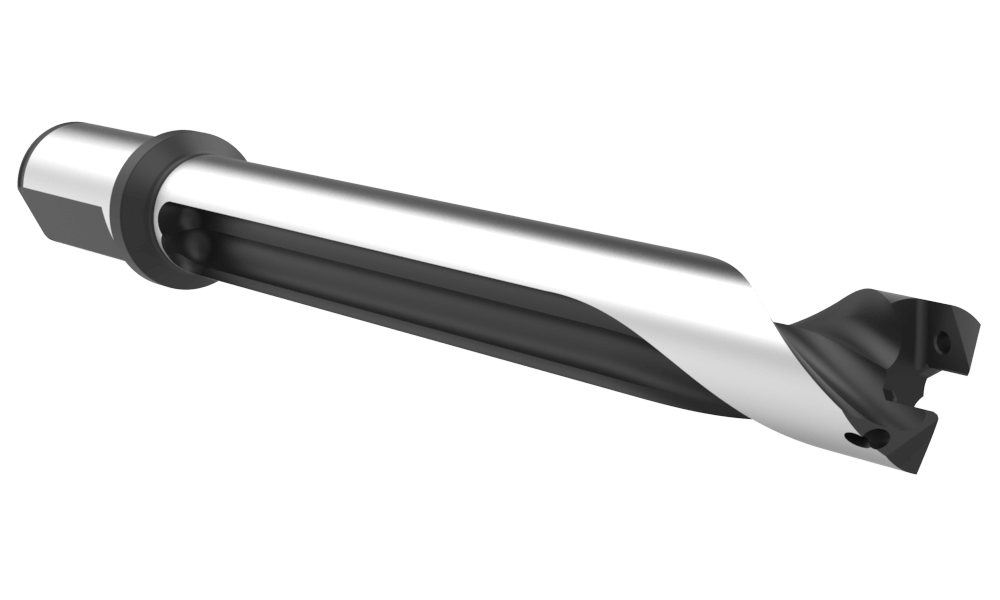

Default Image
Angle

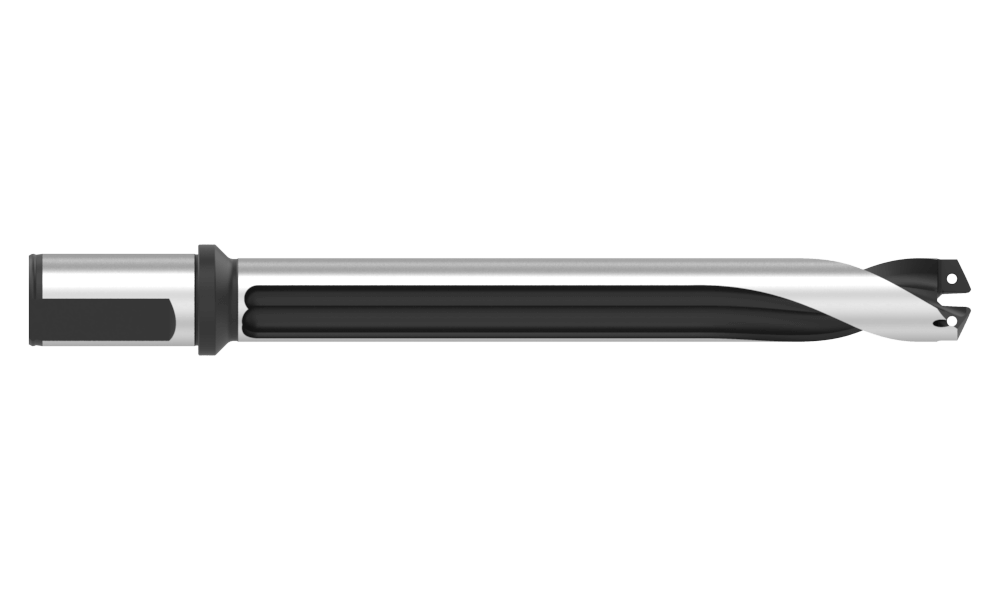

Front

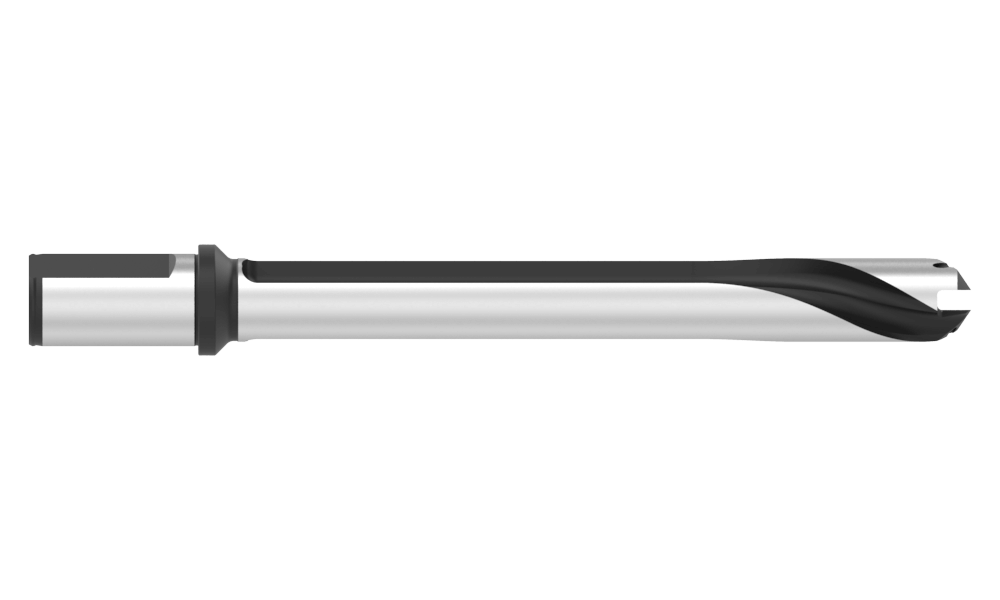

Top
Product Specifications
Series 29
Minimum diameter mm 29.00
Maximum diameter mm 31.99
Length Type 7xD
Flute Type Straight
Overall length mm 327.1
Tool Reference Length mm 267.1
Body length mm 264.1
Drill depth mm 228.0
Shank type Flanged
Shank diameter mm 32
Shank length mm 60.0
Pipe tap rear mm 1/4 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.66
Weight in kg (each) 1.21
Category Stocked
