60732H-40CM
GEN3SYS® Replaceable Drill Body: (32.00 mm - 35.00 mm), 7xD, Cylindrical Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

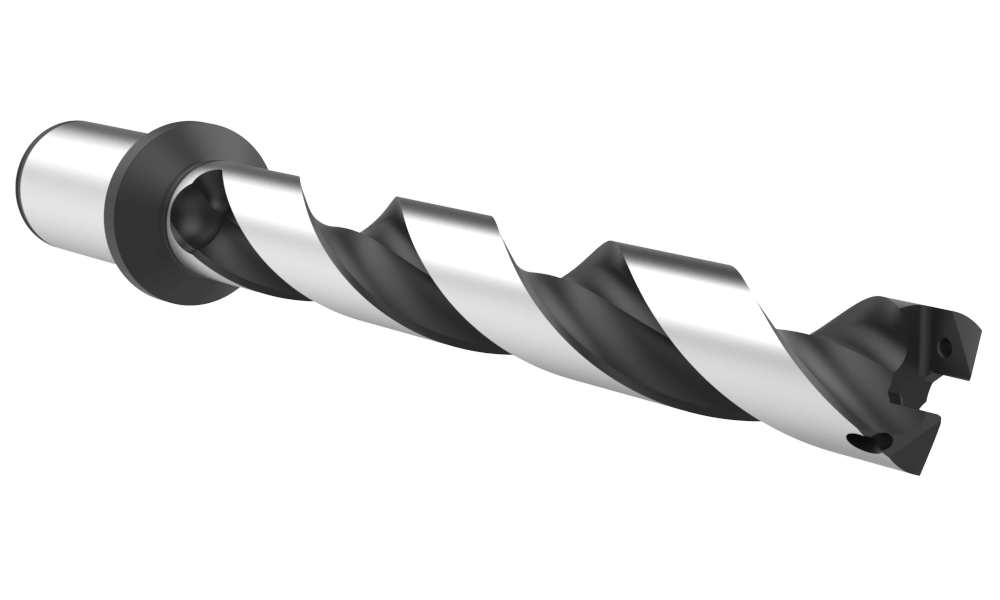

Default Image
Angle

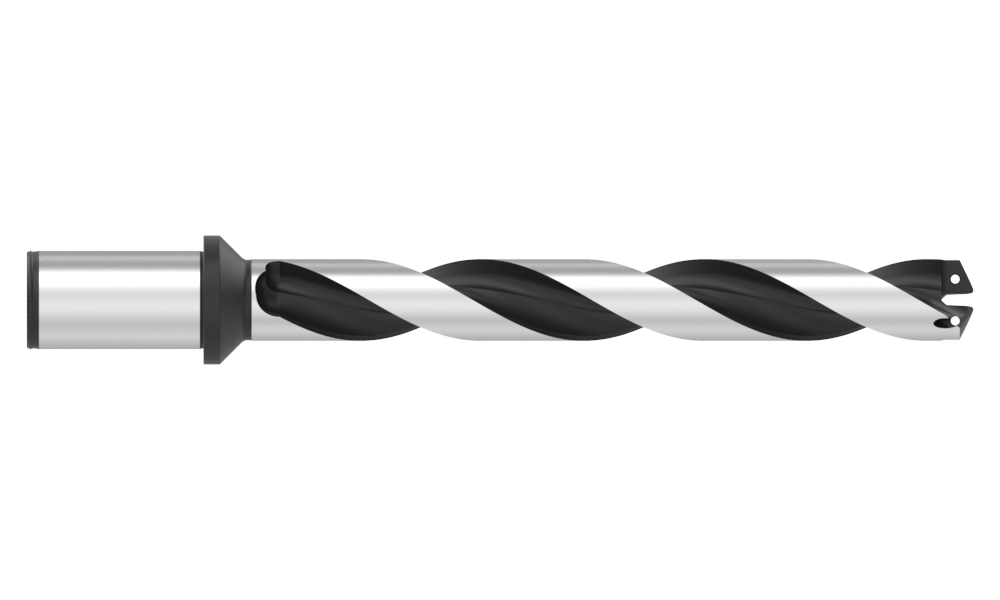

Front

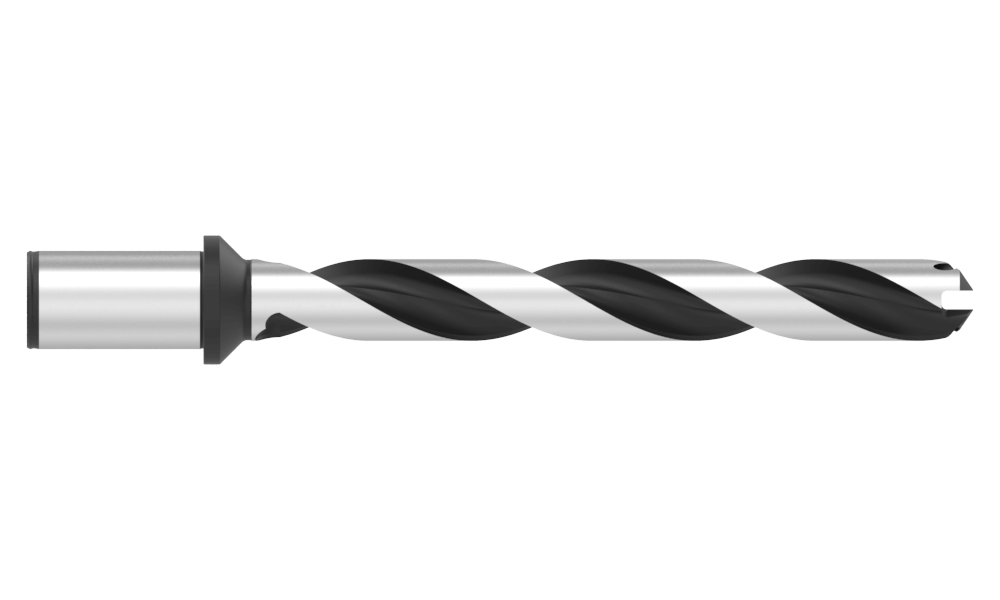

Top
Product Specifications
Series 32
Minimum diameter mm 32.00
Maximum diameter mm 35.00
Length Type 7xD
Flute Type Helical
Overall length mm 371.3
Tool Reference Length mm 301.3
Body length mm 297.7
Drill depth mm 251.2
Shank type Cylindrical
Shank diameter mm 40
Shank length mm 70.0
Pipe tap rear mm 1/4 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.24
Weight in kg (each) 1.92
Category Stocked
