AS5202-101-100F
AccuPort 432® Replaceable Port Form Body: SAE AS5202, -10, Cylindrical
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information

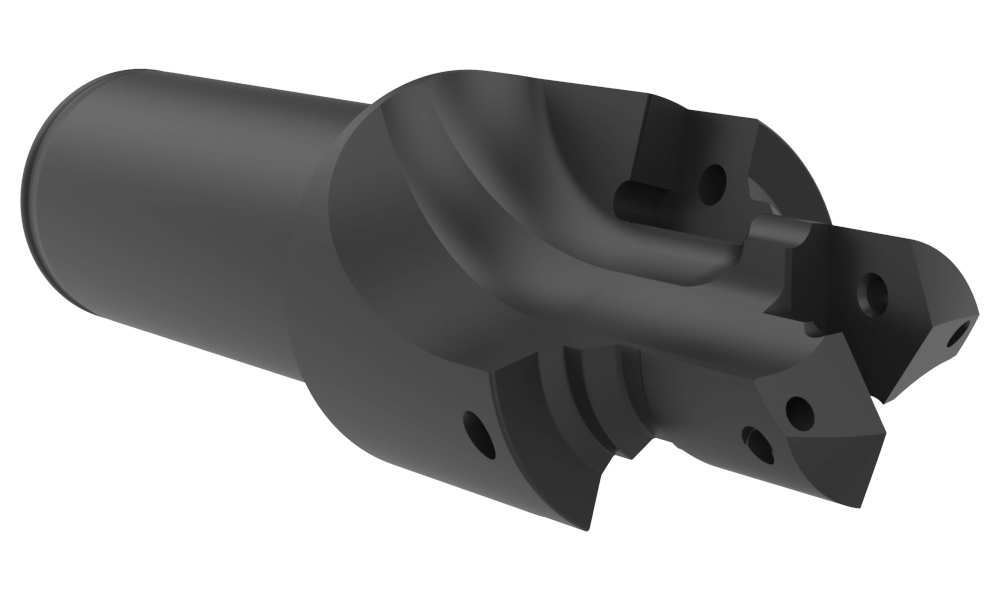

Default Image
Angle

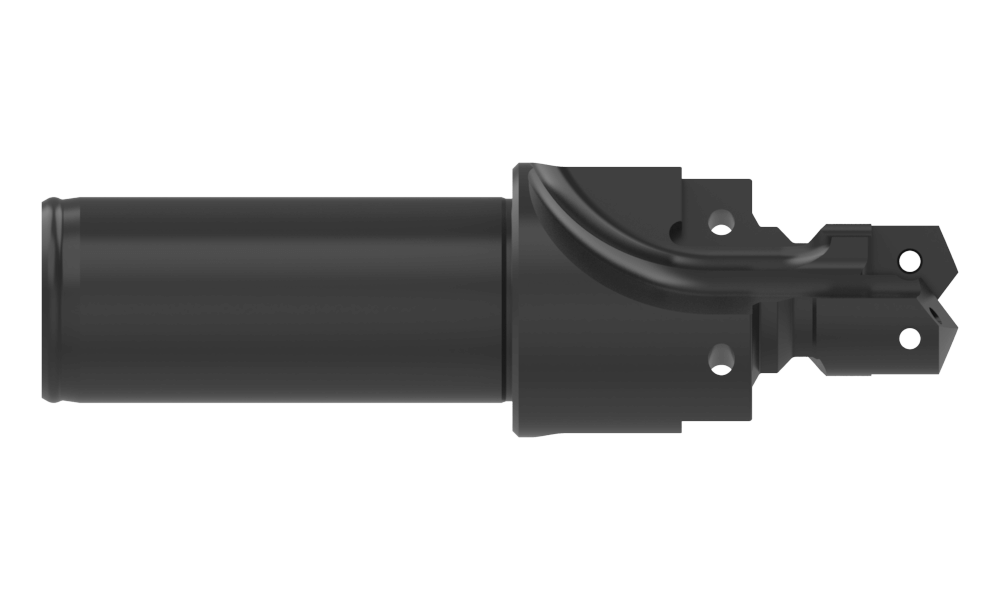

Front

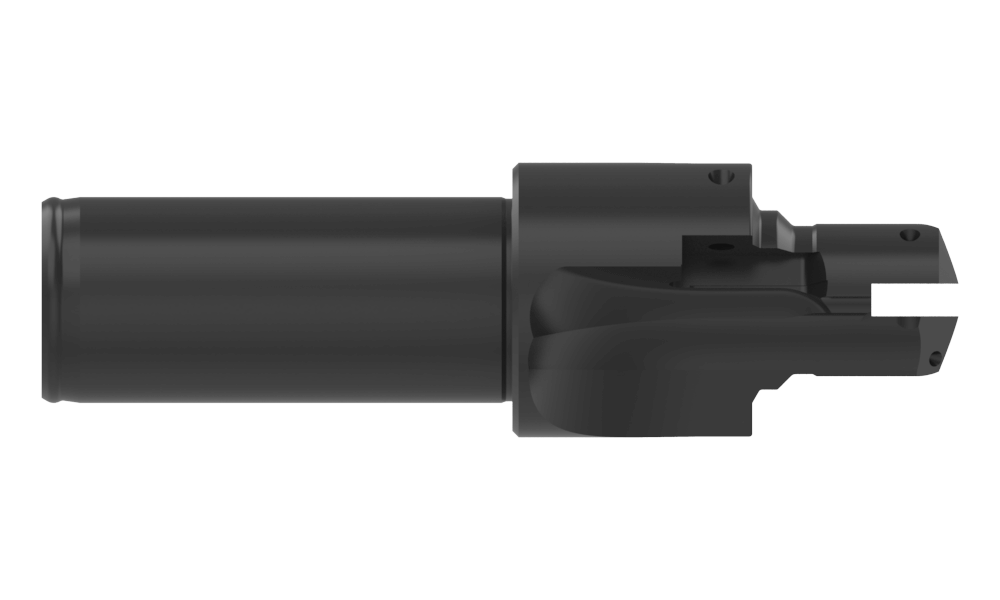

Top
Product Specifications
Specification SAE
Port Standard AS5202
Tube Size -10
Series 1
Spotface Diameter (inch) 1.3540
Flute Type Straight
Overall Length (inch) 4.444
Tool Reference Length (inch) 2.303
Body Length (inch) 2.163
Step Length (inch) 0.947
Shank Type Cylindrical
Shank Diameter (inch) 1
Shank Length (inch) 2.281
Pipe Tap Rear (inch) 1/8 NPT
Type of Product Indexable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement AccuPort Insert Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
AccuPort Insert Screw Driver
DRIVER, TORX PLUS HAND IP-15
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.83
Weight in kg (each) 0.38
Category Stocked
