AS5202-122-125F
AccuPort 432® Replaceable Port Form Body: SAE AS5202, -12, Cylindrical
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information

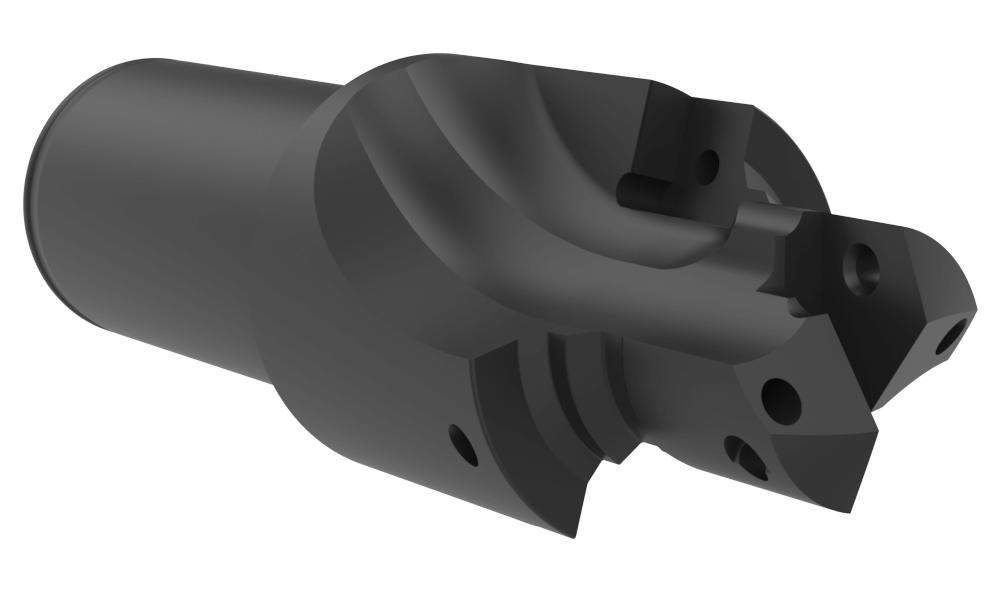

Default Image
Angle

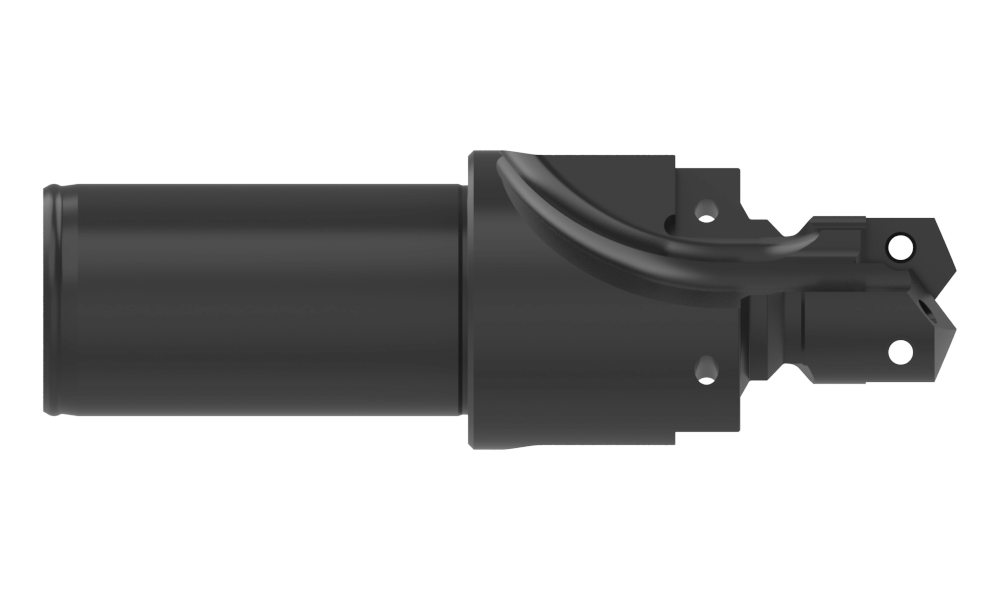

Front

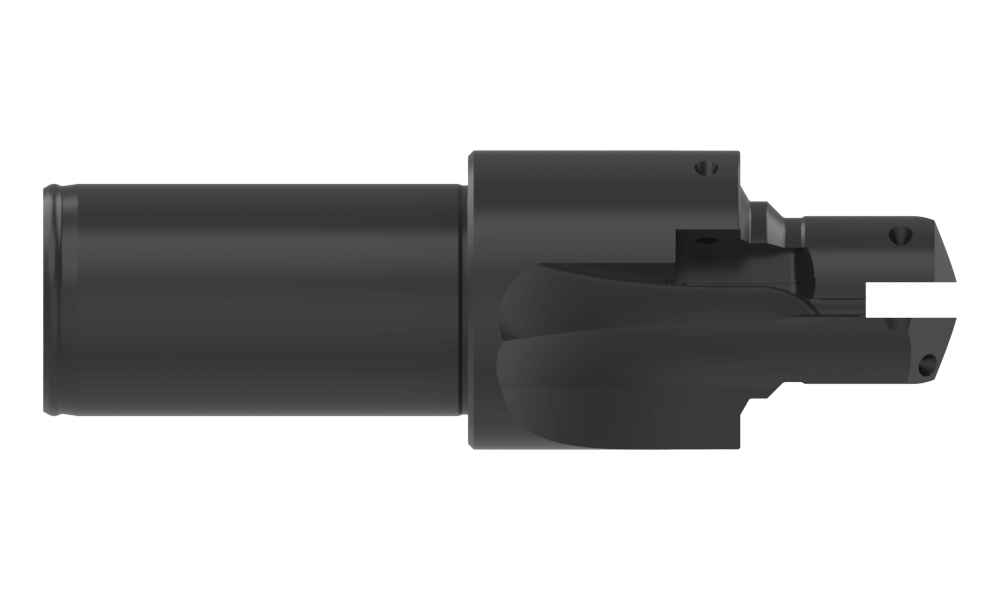

Top
Product Specifications
Specification SAE
Port Standard AS5202
Tube Size -12
Series 2
Spotface diameter inch 1.6350
Flute Type Straight
Overall length inch 4.920
Tool Reference Length inch 2.779
Body length inch 2.639
Step Length inch 1.081
Shank type Cylindrical
Shank diameter inch 1-1/4
Shank length inch 2.281
Pipe tap rear inch 1/4 NPT
Type of Product Replaceable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.42
Weight in kg (each) 0.64
Category Stocked
